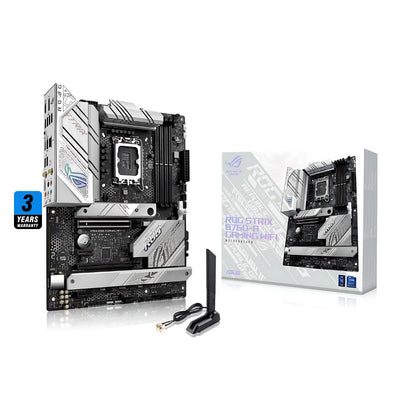

ASUS ROG STRIX B760-A GAMING WIFI

Motherboard Specification (ATX)

• CPU Support: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (LGA1700)
• Chipset: Intel® B760

Memory

• 4 x DDR5 DIMM, up to 192GB
• Up to 7800+ MT/s (OC), Dual Channel, XMP

Graphics

• 1 x HDMI 2.1
• 1 x DisplayPort 1.4

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x1

Storage

• 3 x M.2 (PCIe 4.0)
• 4 x SATA 6Gb/s (RAID 0/1/5/10)

Networking

• Intel® 2.5Gb LAN with ASUS LANGuard
• Wi-Fi 6E (802.11ax), Bluetooth® 5.3

USB

• USB-C: 20Gbps, 10Gbps, 5Gbps
• USB-A: 10G / 5G / 2.0
• USB internal headers

Audio

• ROG SupremeFX ALC4080, 7.1 HD Audio
• 32-bit/384kHz, Savitech AMP

Internal I/O

• 24-pin & 8+4-pin CPU power
• 3 x M.2, 4 x SATA
• Fan headers, RGB headers, USB headers
• Thunderbolt header

Back Panel I/O

• USB-C 20G, USB-A (10G/5G/2.0)
• HDMI, DisplayPort
• Intel 2.5Gb LAN, Wi-Fi antennas
• 5 x audio jacks
• BIOS FlashBack button

Form Factor: ATX (30.5 x 24.4 cm)
