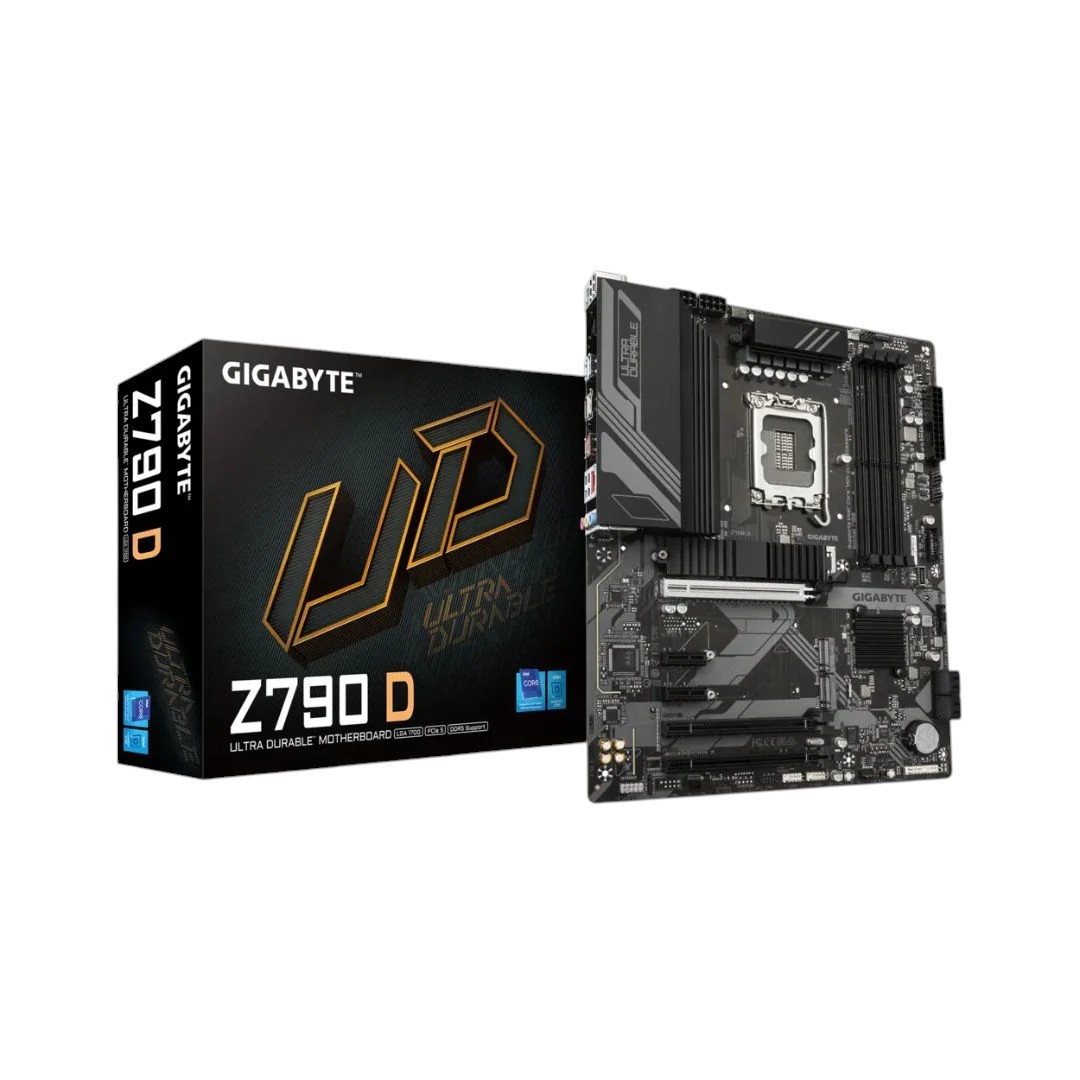

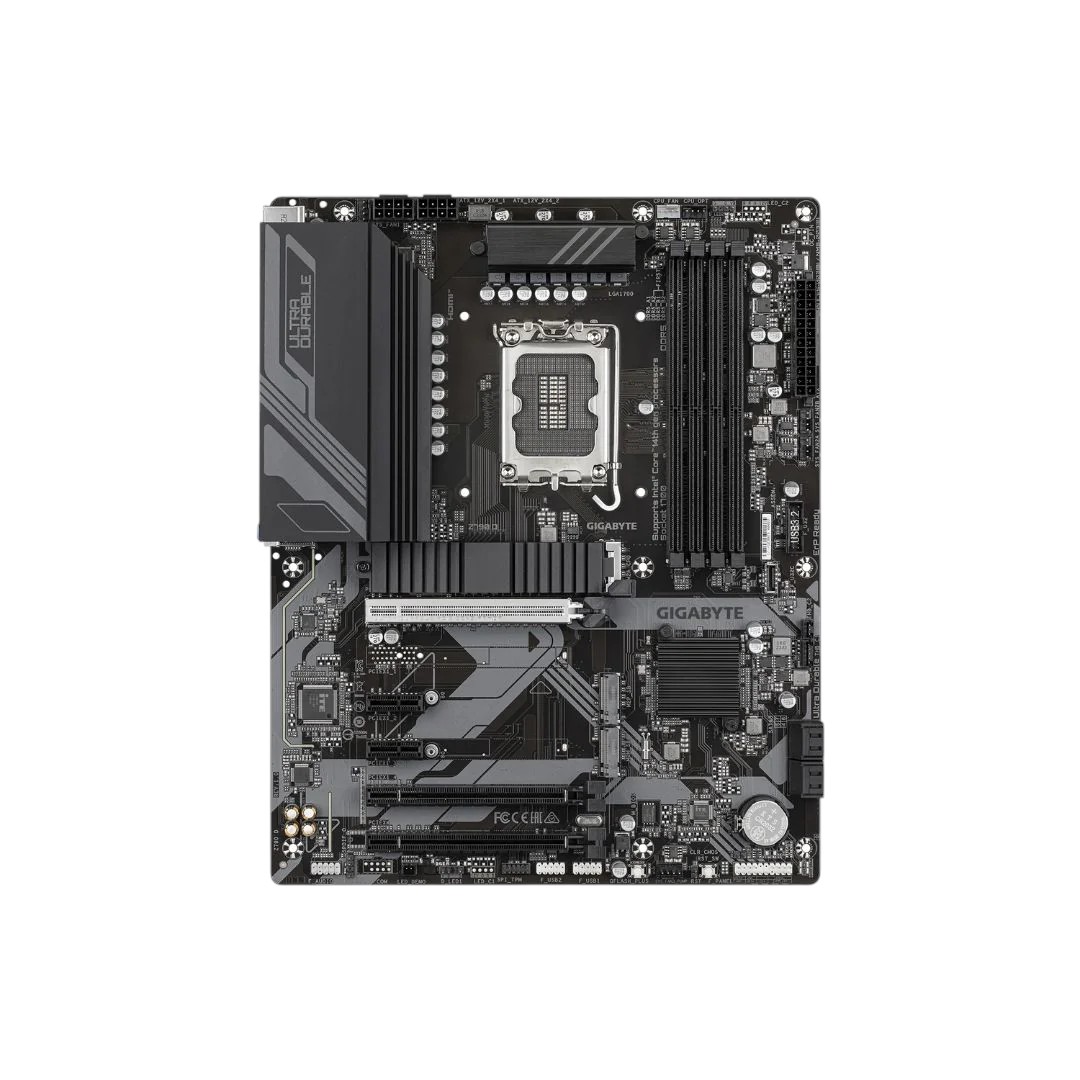

Gigabyte Z790 D - DDR5

Processor Support

• Socket: LGA1700
• Supports: Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors

Chipset

• Intel® Z790 Express

Memory Support

• DIMM Slots: 4× DDR5
• Max Capacity: Up to 256GB
• Speed: Up to 7600MT/s (OC) with 14th/13th Gen i9/i7
• Speed: 4800/4400MT/s with 13th i5/i3 and 12th Gen CPUs
• Features: Dual Channel, ECC (non-ECC mode), XMP

Graphics Ports

• 1× HDMI (4096x2160@60Hz, HDMI 2.1)
• 1× DisplayPort (4096x2304@60Hz, DP 1.2)

Expansion Slots

• 1× PCIe 5.0 x16 (CPU)
• 1× PCIe 4.0 x4
• 1× PCIe 3.0 x1
• 2× PCIe 3.0 x1

Storage

• 3× M.2 (PCIe 4.0 x4/x2, SATA on one slot)
• 4× SATA 6Gb/s
• RAID: 0/1/5/10 for NVMe and SATA

Ethernet

• Realtek® 2.5GbE LAN

Wireless & Bluetooth

• None onboard

USB Ports

• Back I/O:
  • 1× USB-C (Gen 2)
  • 1× USB 3.2 Gen2 Type-A
  • 4× USB 3.2 Gen1
  • 2× USB 2.0
• Internal:
  • 1× USB-C (Gen1)
  • 1× USB 3.2 Gen1 header (2 ports)
  • 2× USB 2.0 headers (4 ports)

Audio

• Realtek® Audio CODEC
• 7.1-Channel HD Audio
• S/PDIF Out

Internal I/O Connectors

• Power Connectors: 2× 8-pin, 1× 24-pin
• Storage: 4× SATA, 3× M.2
• USB Headers: 4× (Gen1, Gen2, USB-C, 2.0)
• Others: RGB & ARGB headers, fan headers, TPM, Thunderbolt add-in, reset/CMOS

Back Panel I/O Ports

• 1× PS/2
• 1× HDMI, 1× DisplayPort
• 1× USB-C (Gen2)
• 1× USB 3.2 Gen2 Type-A
• 4× USB 3.2 Gen1
• 2× USB 2.0
• 1× RJ-45
• 3× Audio Jacks

Form Factor

• ATX: 30.5 × 24.4 cm
