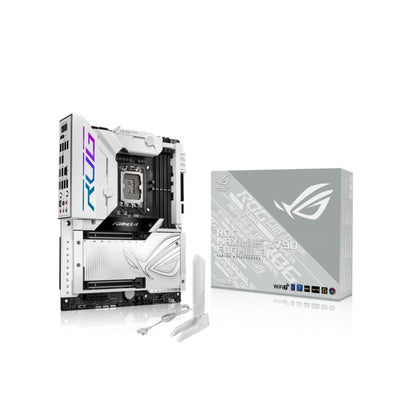

ASUS ROG MAXIMUS Z790 FORMULA

ASUS Z790 Motherboard - Specs Summary

Processor & Chipset

• Socket: LGA1700
• CPU Support: Intel 14th/13th/12th Gen, Pentium Gold, Celeron
• Chipset: Intel Z790
• Turbo Boost: Supports v2.0 & Max v3.0

Memory

• Slots: 4× DDR5 (up to 192GB)
• Speeds: Up to DDR5-8000+(OC)
• Features: Dual Channel, XMP, AEMP II, DIMM Flex

Graphics & Expansion

• Ports: 1× HDMI, 2× Thunderbolt 4 (DP output)
• Slots:
  • 2× PCIe 5.0 x16 (x16 or x8/x8)
  • 1× PCIe 4.0 x4

Storage

• M.2 Slots: 5× (PCIe 5.0 & 4.0 support)
• SATA: 4× SATA 6Gb/s
• RAID: Yes (RAID 0/1/5/10)

Networking

• LAN: Realtek 5Gb
• Wireless: Intel Wi-Fi 7 (2.4/5/6GHz), Bluetooth 5.4

USB Ports

• Rear (12 ports):
  • 2× Thunderbolt 4 (USB-C)
  • 6× USB 10Gbps (5× Type-A + 1× Type-C)
  • 4× USB 5Gbps (Type-A)
• Front (9 ports):
  • 1× USB 20Gbps (Type-C w/ 60W PD)
  • 4× USB 5Gbps (via headers)
  • 4× USB 2.0 (via headers)

Audio

• Codec: ROG SupremeFX ALC4082
• Features: 7.1 Surround, 32-bit/384kHz playback, SNR 120 dB

Internal I/O

• Cooling: CPU, AIO, chassis, pump, water sensors
• Power: 24-pin ATX, 2× 8-pin CPU, 1× PCIe
• USB: Type-C, USB 5Gbps & 2.0 headers

Rear I/O Ports

• 2× Thunderbolt 4 (USB-C)
• 6× USB 10Gbps
• 4× USB 5Gbps
• 1× HDMI
• 1× Realtek 5Gb LAN
• 1× Wi-Fi Module
• 5× Audio jacks + Optical S/PDIF
• BIOS FlashBack™, Clear CMOS buttons

Form Factor

• ATX: 30.5 × 24.4 cm
