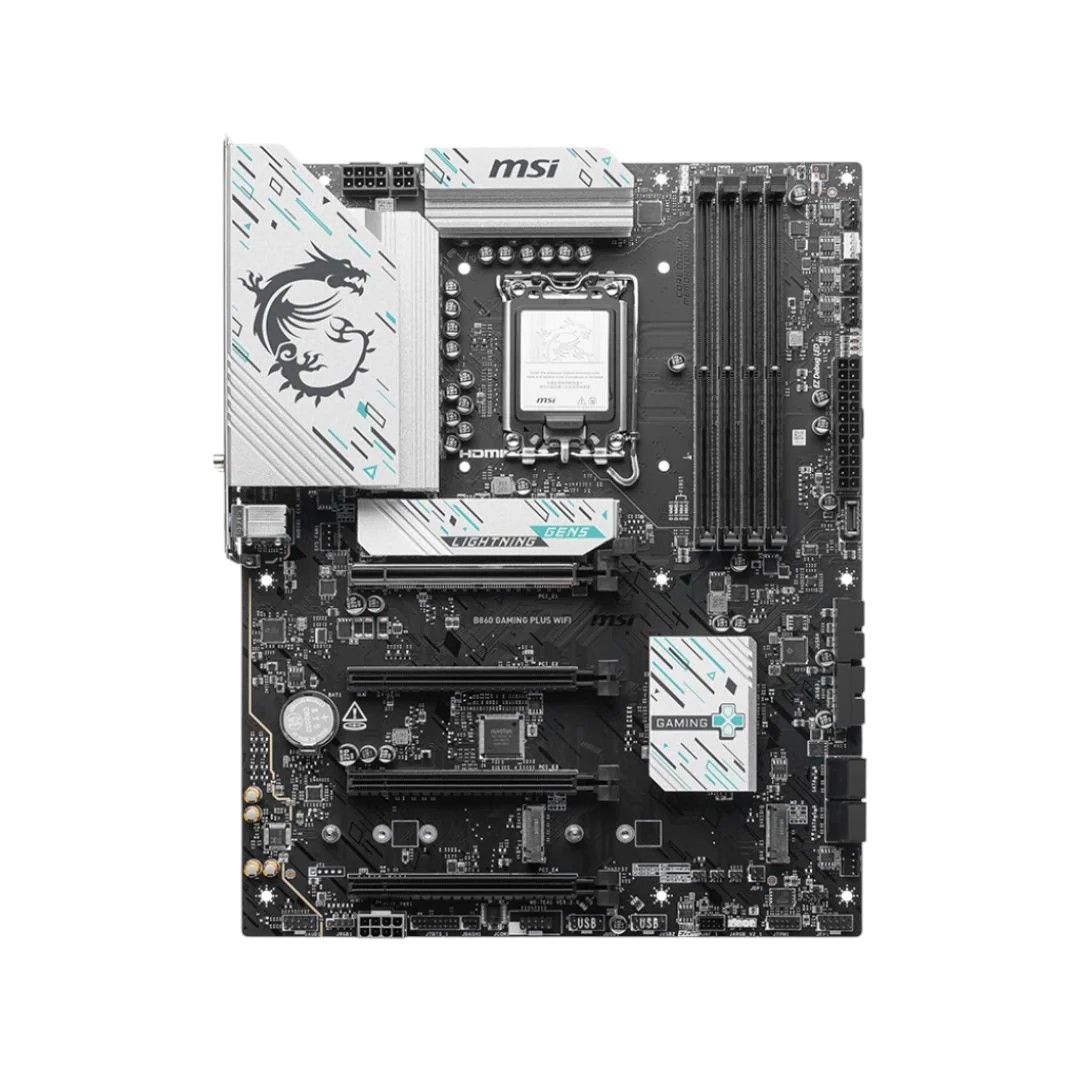

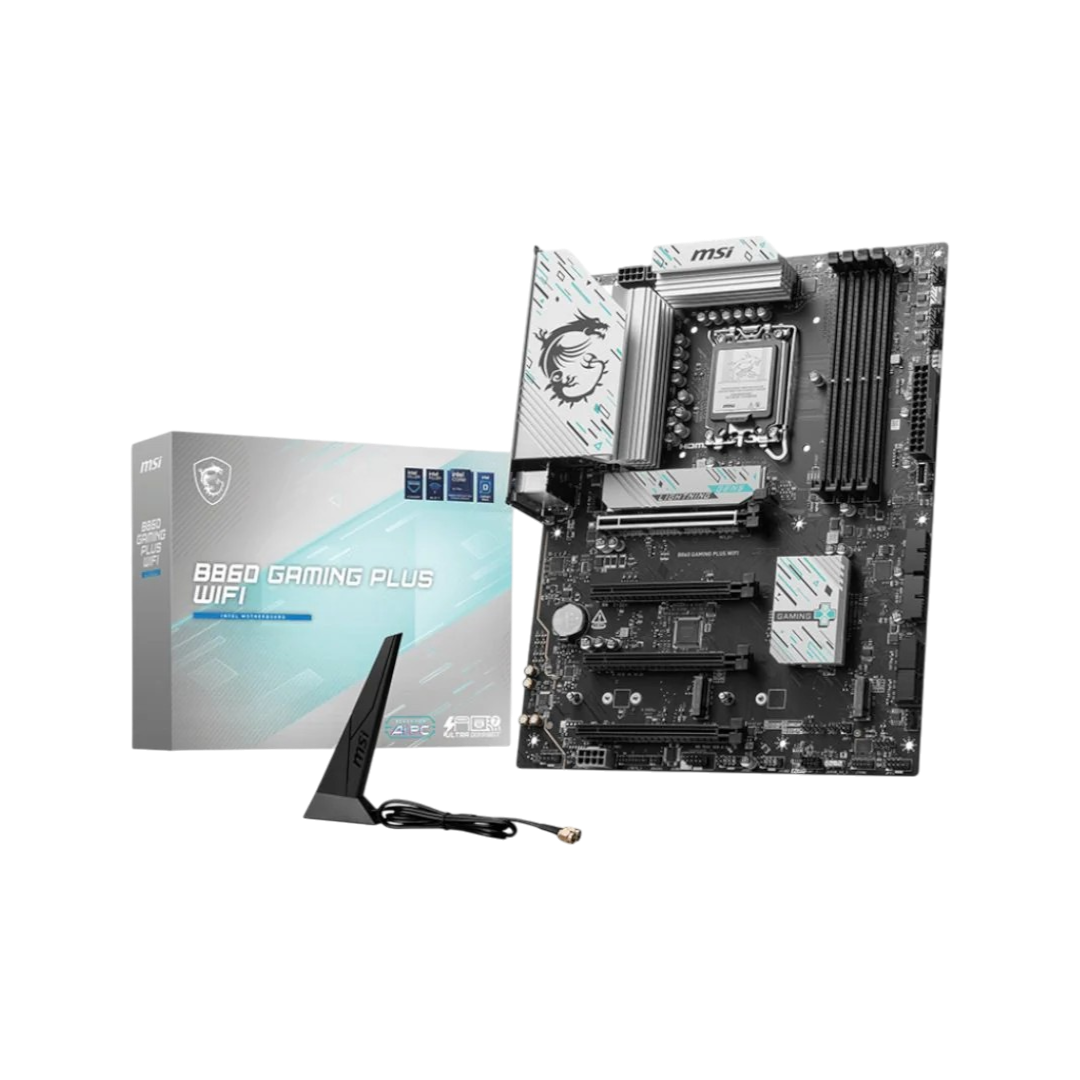

MSI B860 GAMING PLUS WIFI

Motherboard Specification

• Processor Support: Intel® Core™ Ultra, LGA 1851
• Chipset: Intel® B860

Memory Support:

• 4× DDR5, up to 256GB
• Speeds up to 8800+ MT/s (OC)
• Dual-Channel, Intel® XMP 3.0

Graphics Ports:

• 1× HDMI 2.1
• 1× DisplayPort 1.4
• 1× Type-C (DP 2.1 over Thunderbolt 4)

Expansion Slots:

• 4× PCIe x16 (Gen5/Gen4)
• 1× PCIe x1

Storage:

• 3× M.2 (PCIe Gen5/Gen4)
• 4× SATA 6Gb/s
• RAID 0/1/5/10

Networking:

• Ethernet: Intel® Killer™ E5000 5Gbps LAN
• Wireless & Bluetooth: Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4

USB Ports:

• 4× USB 2.0
• 6× USB 5Gbps
• 3× USB 10Gbps
• 1× USB 20Gbps (Thunderbolt 4)

Audio:

• Realtek® ALC897, 7.1 HD Audio

Internal I/O Connectors:

• 3× Power
• 6× Fan
• 2× ARGB, 1× RGB
• TPM, COM, USB headers
• Thunderbolt 5 card header

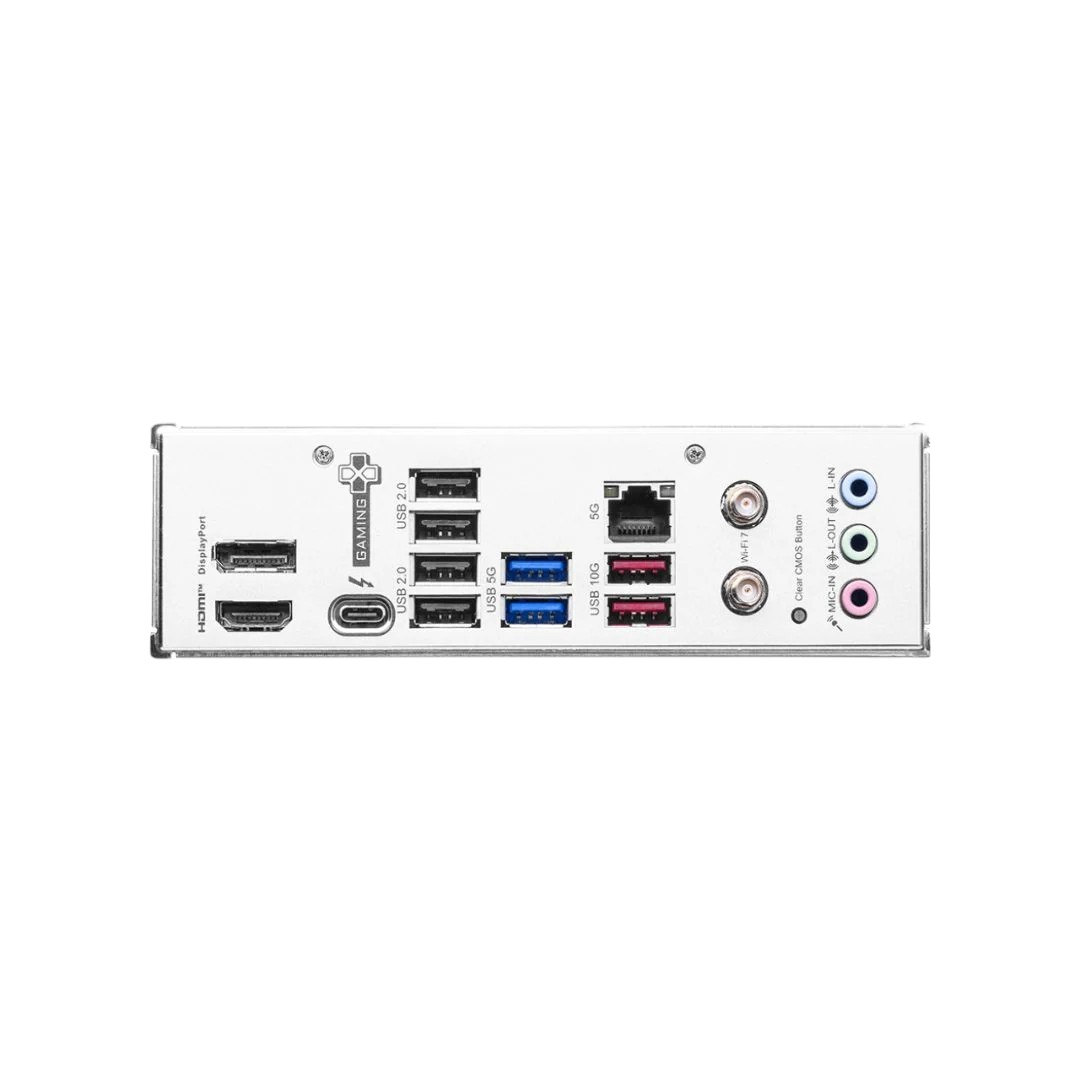

Back Panel I/O Ports:

• HDMI, DP, Thunderbolt 4 (USB-C)
• USB 2.0/5Gbps/10Gbps
• 5G LAN, Wi-Fi antenna
• Audio jacks, Clear CMOS

Form Factor:

• ATX, 243.84mm × 304.8mm
