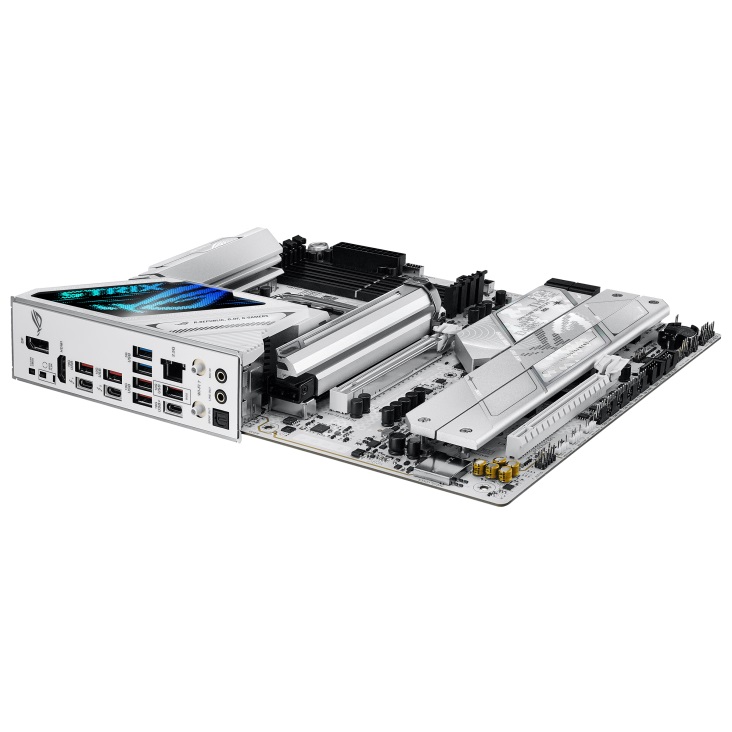

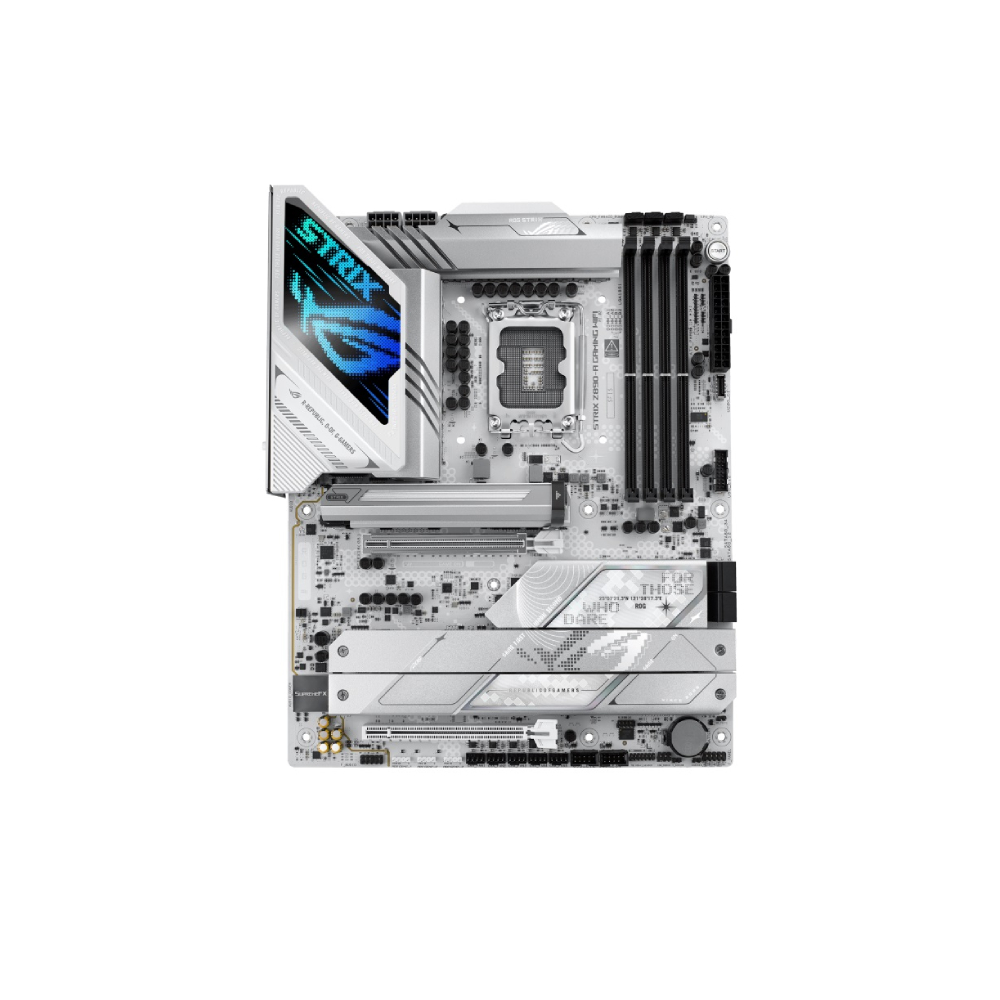

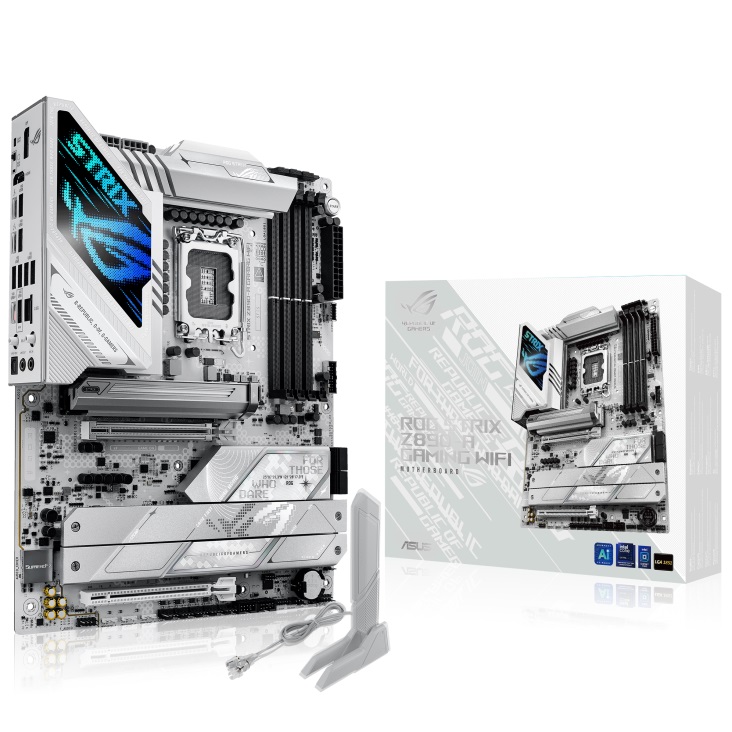

ASUS ROG STRIX Z890-A GAMING WIFI

Motherboard Specification

• Processor Support: Intel® Core™ Ultra Processors (Series 2)
• Chipset: Intel® Z890 Chipset
• Memory Support:
  • 4× DDR5 DIMM, up to 9066+MT/s (OC), 256GB max
  • Dual channel, Non-ECC/Unbuffered/CUDIMM, XMP, DIMM Flex, DIMM FIT, AEMP III
• Graphics Ports:
  • 1× DisplayPort
  • 1× HDMI 2.1
  • 2× Thunderbolt™ 4 (DisplayPort/Thunderbolt video outputs)
• Expansion Slots:
  • 1× PCIe 5.0 x16
  • 1× PCIe 4.0 x16 (x4 mode)
• Storage:
  • 5× M.2 (PCIe 5.0/4.0/SATA)
  • 4× SATA 6Gb/s
  • Intel® RST RAID 0/1/5/10 support
• Ethernet: 1× Intel® 2.5Gb Ethernet (ASUS LANGuard)
• Wireless & Bluetooth:
  • Wi-Fi 7 (802.11be)
  • Bluetooth® v5.4
• USB Ports:
  • Rear:
    • 2× Thunderbolt™ 4 (USB-C)
    • 6× USB 10Gbps (5× Type-A + 1× Type-C)
    • 2× USB 5Gbps (Type-A)
  • Front:
    • 1× USB 20Gbps (Type-C)
    • 2× USB 5Gbps (2 ports)
    • 4× USB 2.0
• Audio:
  • ROG SupremeFX ALC4080 7.1 Surround Sound
  • S/PDIF out
  • Savitech SV3H712 AMP, Premium Capacitors
• Internal I/O Connectors:
  • 5× M.2 slots, 4× SATA ports
  • 5× 4-pin Fan headers
  • USB 20Gbps (Type-C), USB 5Gbps, USB 2.0
  • Thunderbolt™ (USB4®) header
  • RGB/ARGB headers, Thermal Sensor, Front Audio, Start Button
• Back Panel I/O Ports:
  • 2× Thunderbolt™ 4 (USB-C)
  • 6× USB 10Gbps
  • 2× USB 5Gbps
  • 1× DisplayPort
  • 1× HDMI
  • 1× Intel® 2.5GbE LAN
  • 1× Wi-Fi module
  • 2× Audio jacks
  • 1× Optical S/PDIF out
  • BIOS FlashBack™ Button, Clear CMOS Button
• Form Factor: ATX (30.5 cm x 24.4 cm)
