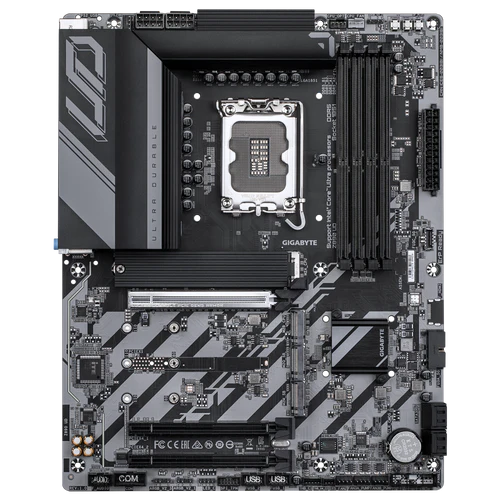

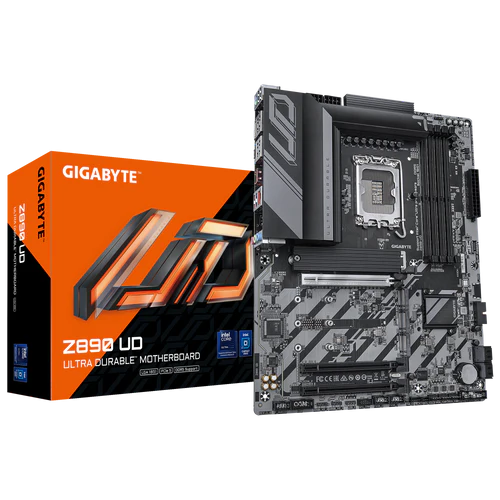

Gigabyte Z890 UD

🧩 Motherboard Specification (Short)

• Socket: LGA1851 (Intel® Core™ Ultra)
• Chipset: Intel® Z890 Express
• Memory:
  • 4× DDR5 DIMMs, up to 256GB
  • Up to 9200MT/s (OC), ECC (non-ECC mode), XMP, CUDIMM
  • Dual-channel architecture
• Graphics Ports:
  • 1× USB4® Type-C® (3840×2160@144Hz)
  • 1× DisplayPort 2.1 (3840×2160@144Hz)
  • (CPU-dependent graphics)
• Expansion Slots:
  • 1× PCIe 5.0 x16
  • 2× PCIe 4.0 x4 (chipset)
• Storage:
  • 2× M.2 (CPU): PCIe 5.0 x4 & PCIe 4.0 x4
  • 2× M.2 (Chipset): PCIe 4.0 x4 & PCIe 4.0 x4/SATA
  • 4× SATA 6Gb/s
  • RAID 0/1/5/10 support (NVMe & SATA)
• Ethernet: Realtek® 2.5GbE LAN
• Wireless/BT: Not included
• USB Ports:
  • Back Panel:
    • 1× USB4-C, 1× USB 3.2 Gen2-A
    • 4× USB 3.2 Gen1, 4× USB 2.0, 1× PS/2
  • Internal:
    • 1× USB-C Gen1, 1× USB 3.2 Gen1 header
    • 2× USB 2.0 headers (4 ports)
    • 2× Thunderbolt add-in headers
• Audio: Realtek® 7.1 HD Audio, S/PDIF Out
• Internal I/O:
  • Power: 2× 8-pin + 1× 24-pin
  • 4× M.2, 4× SATA, USB-C, RGB/ARGB, TPM, COM, Power/Reset, Q-Flash Plus

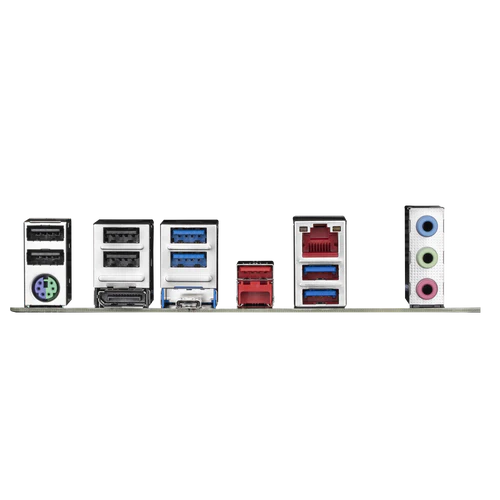

• Back I/O Ports:
  • USB4-C, USB 3.2 Gen2-A, USB 3.2 Gen1, USB 2.0
  • DisplayPort, RJ-45, PS/2, 3× Audio jacks
• Form Factor: ATX (30.5 × 24.4 cm)
