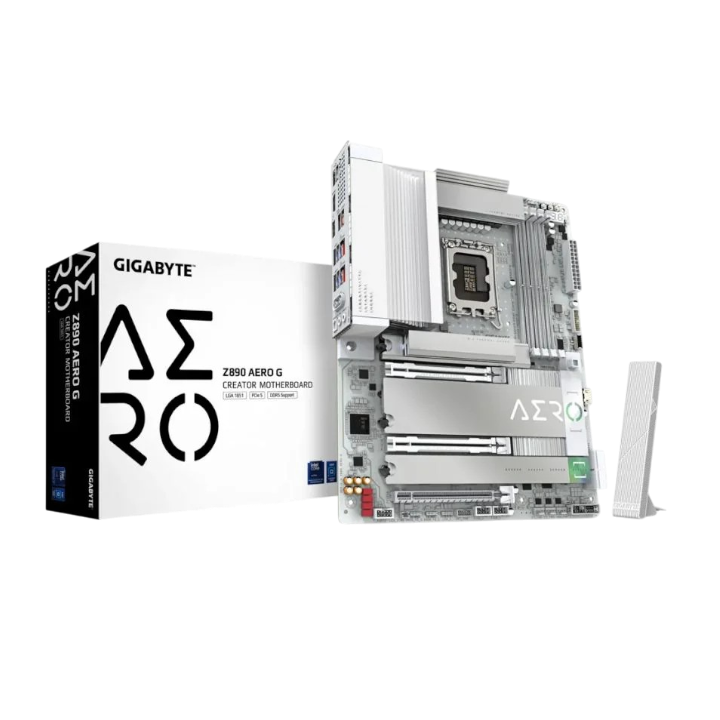

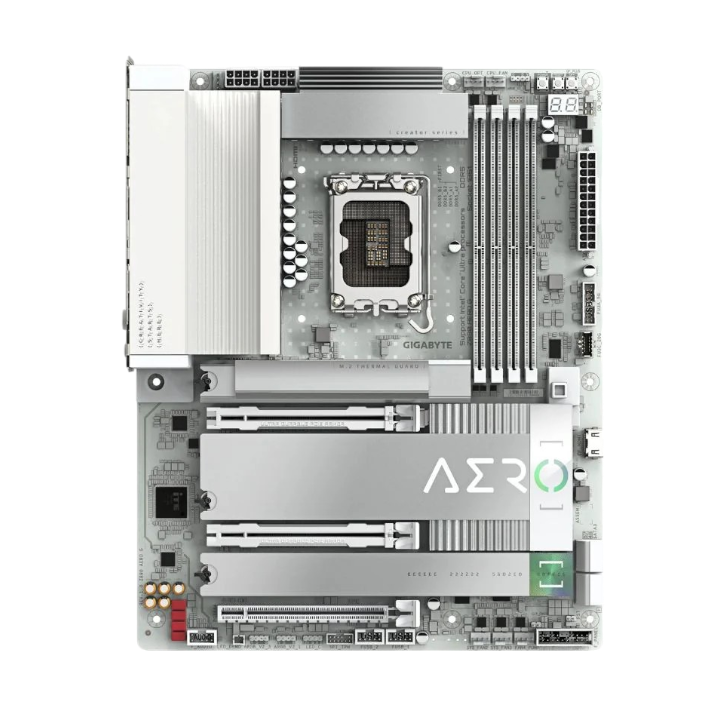

Gigabyte Z890 AERO G
0.0 (0 reviews)
600,000 IQD
1
Fast shipping in 24h
Order before 2pm for same day dispatch
Secure payment
We use industry standard encryption
1-year warranty
Full manufacturer warranty included
وصف المنتج
Motherboard Specification
Processor Support
- Socket: LGA1851
- CPU: Intel® Core™ Ultra Processors
Chipset
- Intel® Z890 Express
Memory Support
- 4x DDR5 DIMM, up to 256GB
- Up to 9200MT/s (OC)
- ECC (non-ECC mode), XMP, CUDIMM
- Dual channel architecture
Graphics Ports
- 1x Thunderbolt™ 4 (USB4® Type-C®) – up to 5120x2880@60Hz
- 1x HDMI 2.1 – up to 4096x2160@60Hz
- 1x HDMI 1.4 (front) – up to 1920x1080@30Hz
- Supports up to 3 displays
Expansion Slots
- 1x PCIe 5.0 x16
- 1x PCIe 5.0 x8 (shared with x16)
- 1x PCIe 4.0 x4
Storage
- 2x M.2 (CPU): 1x PCIe 5.0 x4, 1x PCIe 4.0 x4
- 3x M.2 (Chipset): PCIe 4.0 x4/x2, SATA
- 4x SATA 6Gb/s
- RAID 0/1/5/10 for NVMe & SATA
Ethernet
- 2x Intel® 2.5GbE LAN
Wireless & Bluetooth
- Intel® Wi-Fi 7 BE202
- Bluetooth® 5.4
USB Ports
- Back:
- 1x Thunderbolt™ 4 (USB4® Type-C®)
- 2x USB 3.2 Gen2 Type-A (red)
- 4x USB 3.2 Gen1
- 2x USB 2.0
- Internal:
- 1x USB-C Gen 2x2
- 1x USB 3.2 Gen1 header
- 2x USB 2.0 headers (4 ports)
Audio
- Realtek® ALC1220, 7.1 HD Audio
- DSD support, S/PDIF Out
Internal I/O
- Power: 2x 8-pin + 1x 24-pin
- Storage: 5x M.2, 4x SATA
- USB: USB-C Gen 2x2, USB 3.2 Gen1, USB 2.0
- Other: ARGB/RGB headers, TPM, HDMI, fan/pump headers, reset, Q-Flash, power

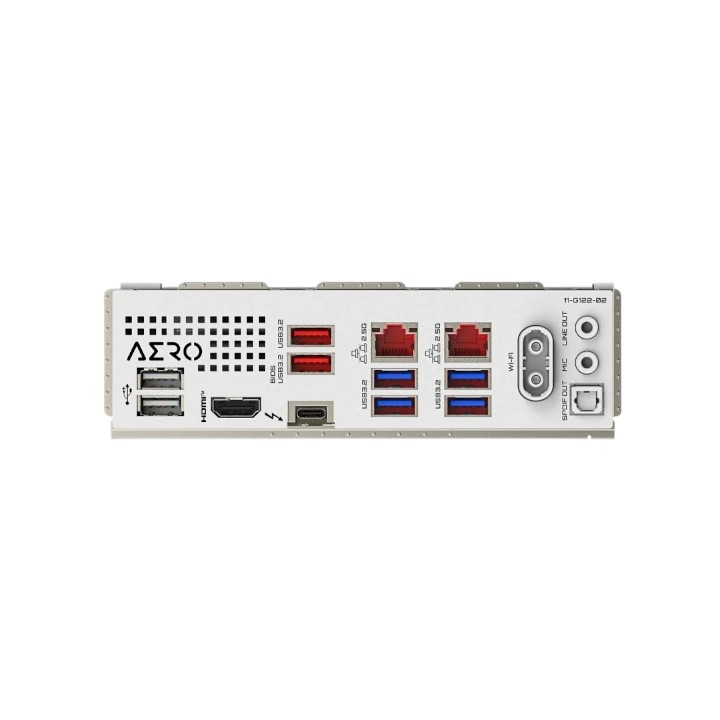

Back Panel I/O
- 1x HDMI
- 1x Thunderbolt™ 4 (USB-C)
- 2x USB 3.2 Gen2 Type-A (red)
- 4x USB 3.2 Gen1
- 2x USB 2.0
- 2x RJ-45
- 2x SMA Wi-Fi Antennas
- 2x Audio jacks + 1x Optical S/PDIF
Form Factor
- ATX, 30.5 × 24.4 cm
المواصفات
العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMA5TGC9
600,000 IQD
