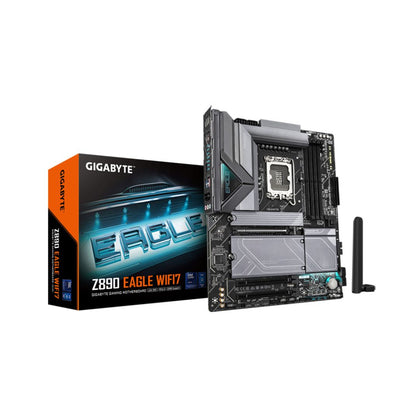

Gigabyte Z890 EAGLE WIFI7

Model: [Motherboard Name]

CPU Socket

• Socket: LGA1851
• Supports: Intel® Core™ Ultra Processors (L3 cache varies with CPU)

Chipset

• Intel® Z890 Express Chipset

Memory Support

• DIMM Slots: 4× DDR5
• Max Capacity: 256GB
• Speed: DDR5 8800(O.C) to 5600MT/s
• Features: Dual channel, ECC Un-buffered DIMM (non-ECC mode), XMP Support

Graphics Ports

• Intel® HD Graphics
• 1× USB4® Type-C® (USB4 & DP 2.1, 3840x2160@144 Hz)
• 1× DisplayPort 2.1 (3840x2160@144 Hz)

Audio

• Realtek® Audio CODEC
• High Definition Audio (2/4/5.1/7.1-channel)

Networking

• Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

• CPU: 1× PCIe 5.0 x16 (for graphics card or NVMe SSD)
• Chipset: 2× PCIe 4.0 x4

Storage

• CPU: 1× M.2 PCIe 5.0 x4/x2, 1× M.2 PCIe 4.0 x4/x2
• Chipset: 1× M.2 PCIe 4.0 x4/x2, 1× M.2 PCIe 4.0 x4/x2 (SATA support), 4× SATA 6Gb/s
• RAID: 0/1/5/10 for NVMe & SATA

USB Ports

• CPU: 1× USB4® Type-C® (back)
• Chipset: 1× USB 3.2 Gen 2 Type-C® (internal), 2× USB 3.2 Gen 2 Type-A (back), 5× USB 3.2 Gen 1 (3 back, 2 internal), 8× USB 2.0/1.1 (4 back, 4 internal)

Internal I/O Connectors

• Power: 24-pin ATX, 2× 8-pin ATX 12V
• Cooling: CPU fan header, 3× system fan headers, fan/water cooling pump header
• Storage: 4× M.2 connectors, 4× SATA 6Gb/s
• USB: USB 3.2 Gen 1 header, USB Type-C® (Gen 2) header
• Other: 3× addressable RGB Gen2 LED headers, Q-Flash Plus button, Clear CMOS jumper

Back Panel I/O Ports

• 1× USB4® Type-C® (DP)
• 2× USB 3.2 Gen 2 Type-A
• 3× USB 3.2 Gen 1
• 4× USB 2.0/1.1
• 1× DisplayPort
• 2× antenna connectors
• 1× RJ-45
• 3× audio jacks

BIOS

• 256 Mbit flash
• AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup

Operating System Support

• Windows 11 64-bit

Form Factor

• ATX (30.5 × 24.4 cm)
