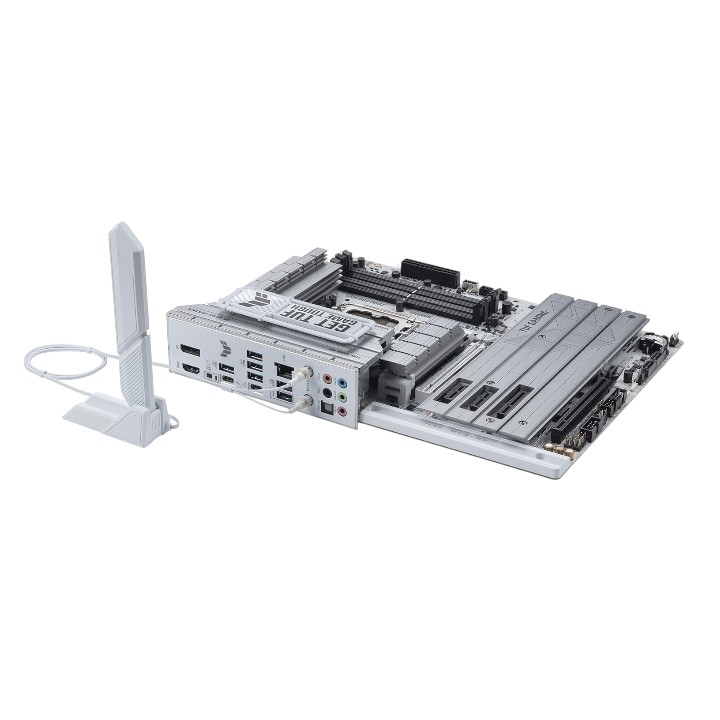

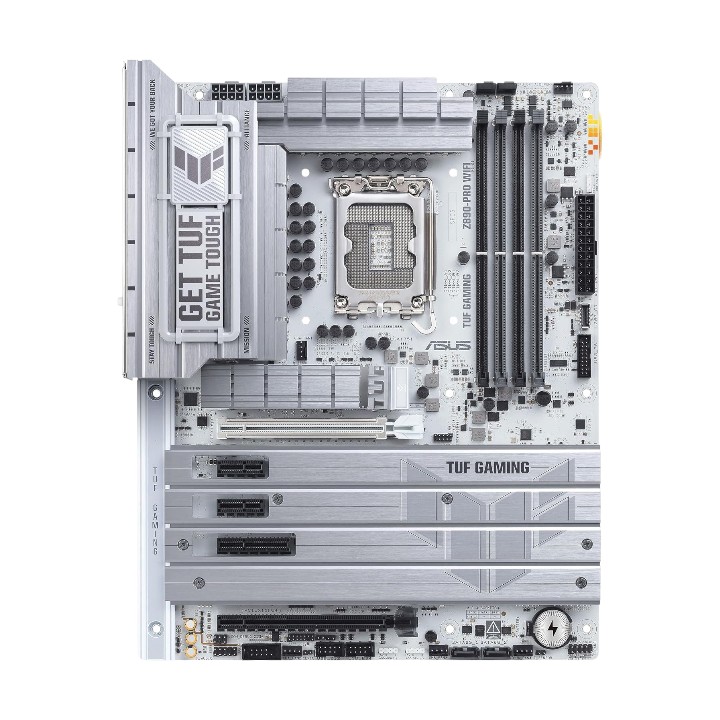

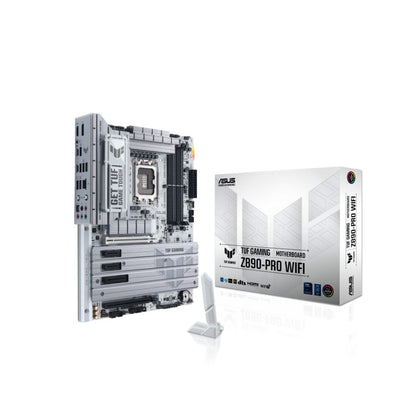

ASUS TUF GAMING Z890-PRO WIFI

Model: TUF GAMING Z890-PRO WIFI

CPU Socket

• Socket: LGA 1851
• Supports: Intel® Core™ Ultra Processors Series 2

Chipset

• Intel® Z890

Power Solution

• DIGI+ VRM, ProCool, Overvoltage protection

Memory Support

• DIMM Slots: 4× DDR5
• Max Capacity: 256GB
• Speed: Up to 9066+ MT/s (OC)
• Features: Dual Channel, XMP, AEMPIII

Graphics Ports

• 1× DisplayPort (4K@60Hz)
• 1× HDMI™ (4K@60Hz)
• 2× Thunderbolt™ 4 USB Type-C® (8K@60Hz)

Expansion Slots

• 1× PCIe 5.0 x16
• 1× PCIe 4.0 x16 (x4 mode)
• 1× PCIe 4.0 x4
• 2× PCIe 4.0 x1

Storage

• 4× M.2 Slots (PCIe 4.0 x4/x2, SATA)
• 4× SATA 6Gb/s
• RAID: 0/1/5/10

Ethernet

• Intel® 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (802.11be, 2x2)
• Bluetooth® v5.4

USB Ports

• Rear I/O: 2× Thunderbolt™ 4 (USB Type-C®), 6× USB 10Gbps (Type-A), 1× DisplayPort, 1× HDMI™, 1× Intel® 2.5Gb Ethernet
• Front I/O: 1× USB 20Gbps (Type-C®), 1× USB 5Gbps header, 2× USB 2.0 headers

Audio

• Realtek ALC1220P 7.1 Surround Sound
• High-quality 120 dB SNR stereo playback

Special Features

• ASUS TUF Protection: DIGI+ VRM, ESD Guards, TUF LANGuard, SafeSlot
• ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
• Aura Sync: Addressable Gen 2 headers
• BIOS FlashBack™

Form Factor

• ATX (30.5 × 24.4 cm)
