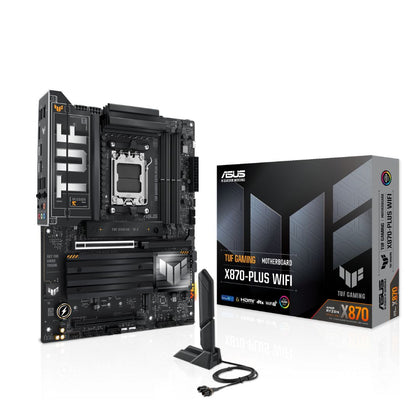

ASUS TUF GAMING X870-PLUS WIFI

Motherboard Specification

• Processor Support: AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series
• Chipset: AMD X870
• Memory Support: 4×DIMM DDR5, up to 192GB, up to 8000+ MT/s (OC)
• Graphics Ports:
  • 1×HDMI™ (4K @ 60Hz)
  • 2×USB4® (40Gbps, DisplayPort Alt Mode, 4K @ 60Hz)
• Expansion Slots:
  • 1×PCIe 5.0 x16 (Ryzen™ 9000/7000)
  • 1×PCIe 4.0 x16
  • 1×PCIe 4.0 x16 (chipset)
• Storage:
  • 4×M.2 slots (PCIe)
  • 2×SATA 6Gb/s
  • Supports PCIe RAID
• Ethernet: Realtek 2.5Gb Ethernet with TUF LANGuard
• Wireless & Bluetooth: Wi-Fi 7 (2×2, 802.11be), Bluetooth 5.4
• USB:
  • Rear: 10 ports including USB4®, USB 10Gbps, USB 5Gbps
  • Front: 7 ports including USB4® and USB Type-C®
• Audio: Realtek ALC1220P 7.1 Surround Sound, 120dB SNR, 32-bit/192kHz
• Internal I/O:
  • 4×4-pin fan headers
  • USB headers and power connectors
• Back Panel I/O:
  • 2×USB4® Type-C®
  • USB 10Gbps / 5Gbps
  • HDMI™, 2.5Gb Ethernet, Wi-Fi antenna connectors
  • 5×Audio jacks
• Form Factor: ATX (30.5 cm × 24.4 cm)
