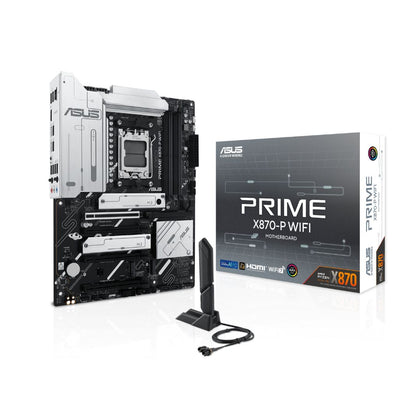

ASUS PRIME X870-P

Motherboard Specification

• Processor Support: AMD Socket AM5 (Ryzen™ 9000 / 8000 / 7000 Series)
• Chipset: AMD X870
• Memory: 4×DDR5 DIMM slots, up to 192GB, 8000+ MT/s (OC), ECC/Non-ECC
• Graphics Ports:
  • 1×HDMI™
  • 2×USB4® Type-C (Display Output, 40Gbps)
• Expansion Slots:
  • 1×PCIe 5.0 x16 (Ryzen™ 9000/7000)
  • 1×PCIe 4.0 x16 (Ryzen™ 8000)
  • 3×PCIe 4.0 x16 (x1 mode)
• Storage:
  • 4×M.2 (PCIe 5.0/4.0/3.0 support)
  • 2×SATA 6Gb/s
• Ethernet: Realtek 2.5GbE with ASUS LANGuard
• Wireless & Bluetooth: Wi-Fi 7 (up to 2.9Gbps, 2x2), Bluetooth 5.4
• USB:
  • Rear: 2×USB4® (40Gbps), 1×USB 10Gbps, 3×USB 5Gbps, 4×USB 2.0
  • Front: 1×USB 10Gbps, 1×USB 5Gbps header, 2×USB 2.0 headers
• Audio: Realtek 7.1 HD Audio CODEC, up to 24-bit/192kHz playback
• Internal I/O:
  • 4×4-pin fan headers, 2×8-pin CPU power
  • USB headers, SATA connectors, M.2 slots
• Back Panel I/O:
  • 2×USB4® (40Gbps), 1×USB 10Gbps, 3×USB 5Gbps, 4×USB 2.0
  • 1×HDMI™, Ethernet, Audio jacks, BIOS FlashBack™ button
• Form Factor: ATX (30.5 × 24.4 cm)
