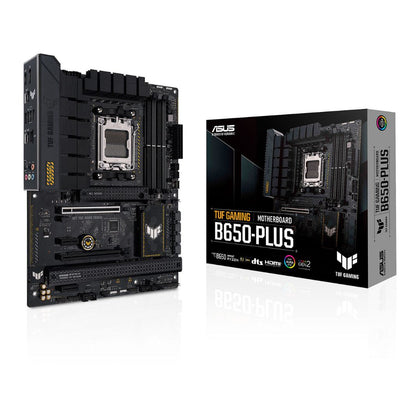

ASUS TUF GAMING B650-PLUS

TUF GAMING B650-PLUS Motherboard Specifications

• Processor Support:
  • AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series processors.
• Chipset:
  • AMD B650
• Memory Support:
  • 4 × DIMM, Max. 128GB DDR5 (Up to 7600+ OC)
  • Dual Channel, Supports AMD EXPO™
• Graphics Ports:
  • 1 × DisplayPort (8K@60Hz)
  • 1 × HDMI® (4K@60Hz)
• Expansion Slots:
  • 1 × PCIe 4.0/3.0 x16
  • 1 × PCIe 4.0 x16 (supports x8/x4 mode, varies by CPU)
  • 1 × PCIe 4.0/3.0 x16 (supports x4 mode)
  • 2 × PCIe 4.0/3.0 x1
• Storage:
  • 3 × M.2 slots (PCIe 5.0/4.0)
  • 4 × SATA 6Gb/s ports
  • Supports RAID 0/1/10
• Ethernet:
  • Realtek 2.5Gb Ethernet, TUF LANGuard
• Wireless & Bluetooth:
  • Not specified
• USB:
  • Rear:
    • 1 × USB 3.2 Gen 2x2 Type-C
    • 3 × USB 3.2 Gen 2 (2 × Type-A, 1 × Type-C)
    • 4 × USB 2.0
  • Front:
    • 1 × USB 3.2 Gen 1 Type-C
    • 1 × USB 3.2 Gen 1 header (2 ports)
    • 2 × USB 2.0 headers (4 ports)
• Audio:
  • Realtek 7.1 Surround Sound
  • Jack-detection, Multi-streaming, Premium capacitors
• Internal I/O Connectors:
  • 3 × M.2 slots, 4 × SATA 6Gb/s
  • 1 × 24-pin ATX power, 1 × 8-pin +12V, 1 × 4-pin +12V
  • 1 × CPU fan header, 1 × CPU OPT fan, 1 × AIO pump, 4 × chassis fan headers
  • 3 × Addressable Gen 2 headers, 1 × Aura RGB header
  • 1 × Thunderbolt™ (USB4®) header
• Back Panel I/O Ports:
  • 1 × USB 3.2 Gen 2x2 Type-C
  • 3 × USB 3.2 Gen 2 (2 × Type-A, 1 × Type-C)
  • 4 × USB 2.0
  • 1 × DisplayPort, 1 × HDMI
  • 1 × Realtek 2.5Gb Ethernet
  • 5 × Audio jacks
  • 1 × BIOS FlashBack™ button
• Form Factor:
  • ATX (30.5 cm x 24.4 cm)
