Motherboard Specification

• CPU: AMD Socket AM5, supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series processors.
• Chipset: AMD B650
• Memory:
  • Supports DDR5 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s
  • Up to 128 GB (64 GB single DIMM)
• Onboard Graphics: Integrated Graphics Processor with D-Sub, DisplayPort, and HDMI ports; supports up to 3 displays.
• Audio: Realtek® Audio CODEC, 2/4/5.1/7.1-channel High Definition Audio.
• LAN: Realtek® GbE LAN chip (1 Gbps)
• Expansion Slots:
  • 1 x PCIe x16 (supports PCIe 4.0)
  • 1 x PCIe x1 (supports PCIe 3.0)
• Storage Interface:
  • 1 x M.2 (PCIe 4.0 x4/x2)
  • 4 x SATA 6Gb/s
• USB Ports:
  • 2 x USB 3.2 Gen 1
  • 1 x USB 2.0/1.1 (back panel)
  • Additional internal USB ports
• Internal I/O Connectors:
  • 24-pin ATX
  • 8-pin ATX 12V
  • CPU and system fan headers
  • RGB and LED strip headers
  • M.2 connector
  • USB 3.2 Gen 1 header
  • TPM header

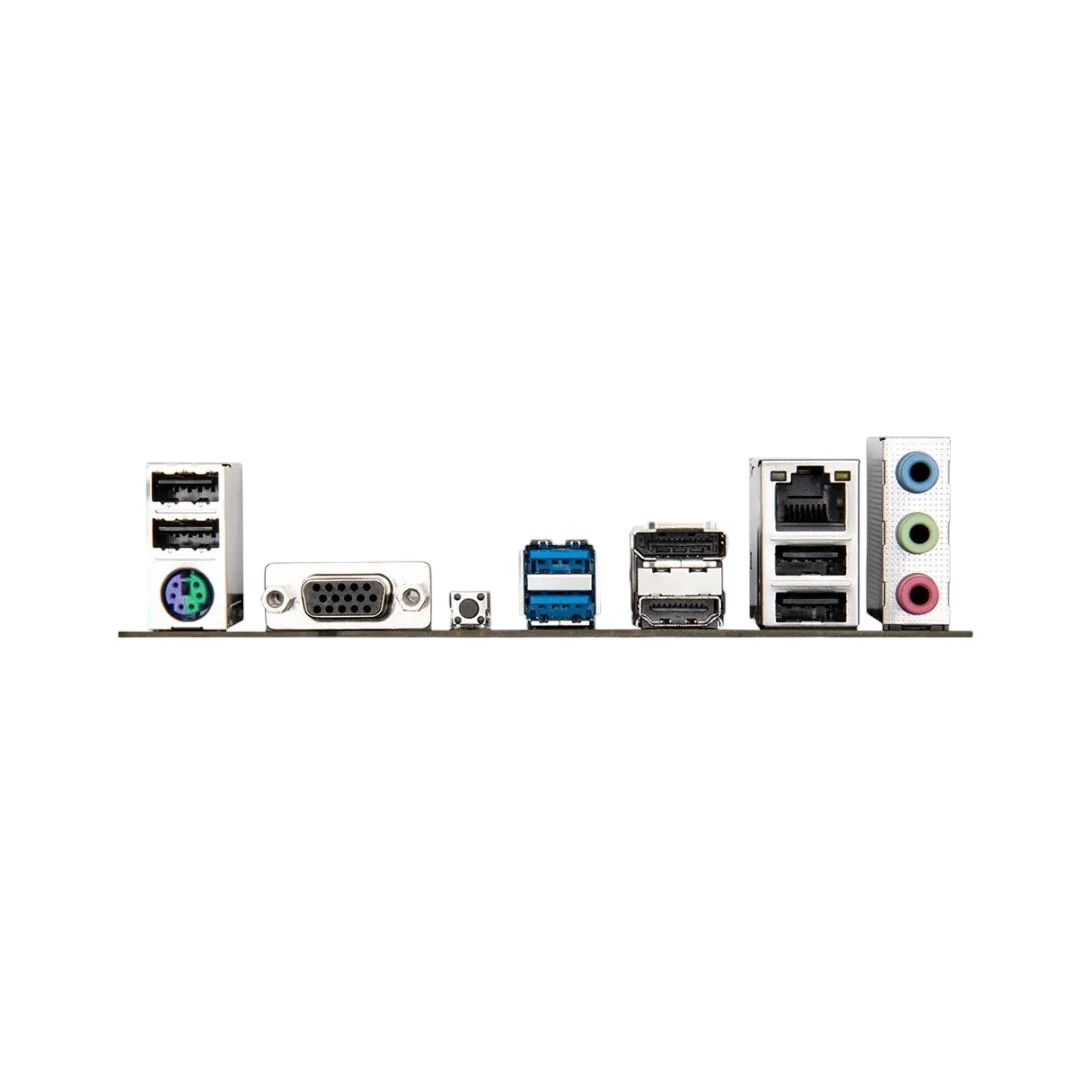

• Back Panel Connectors:
  • 4 x USB 2.0/1.1
  • PS/2 port
  • D-Sub
  • 2 x USB 3.2 Gen 1
  • DisplayPort
  • HDMI
  • RJ-45
  • 3 audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring: Voltage, temperature, fan speed, water cooling flow rate detection, and fan fail warning.
• BIOS: 256 Mbit flash, licensed AMI UEFI BIOS, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
• Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus.
• Bundled Software: Norton® Internet Security, LAN bandwidth management software.
• Operating System: Supports Windows 10/11 64-bit.
• Form Factor: Micro ATX, 23.0cm x 22.5cm
