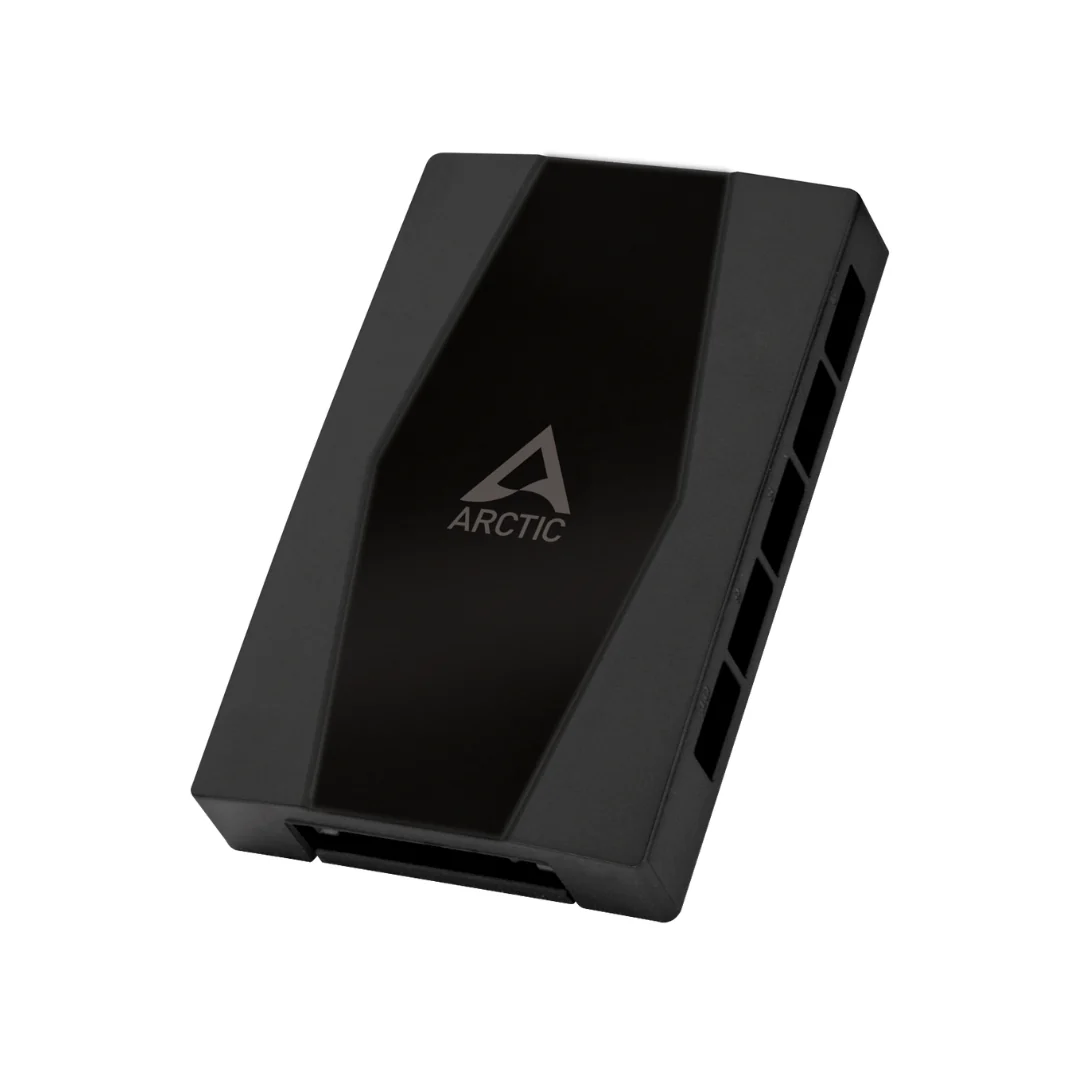

Arctic Case Fan Hub 10 Port

Type: PWM Fan Hub
Number of Fan Ports: 10 x 4-pin PWM
Power Input: SATA Power
Motherboard Connection: 1 x 4-pin PWM header
Voltage: 12V
Maximum Output Current: Up to 1A per port, 4.5A total
Dimensions: 86.3 mm x 55.6 mm x 14.3 mm
Weight: 50 g

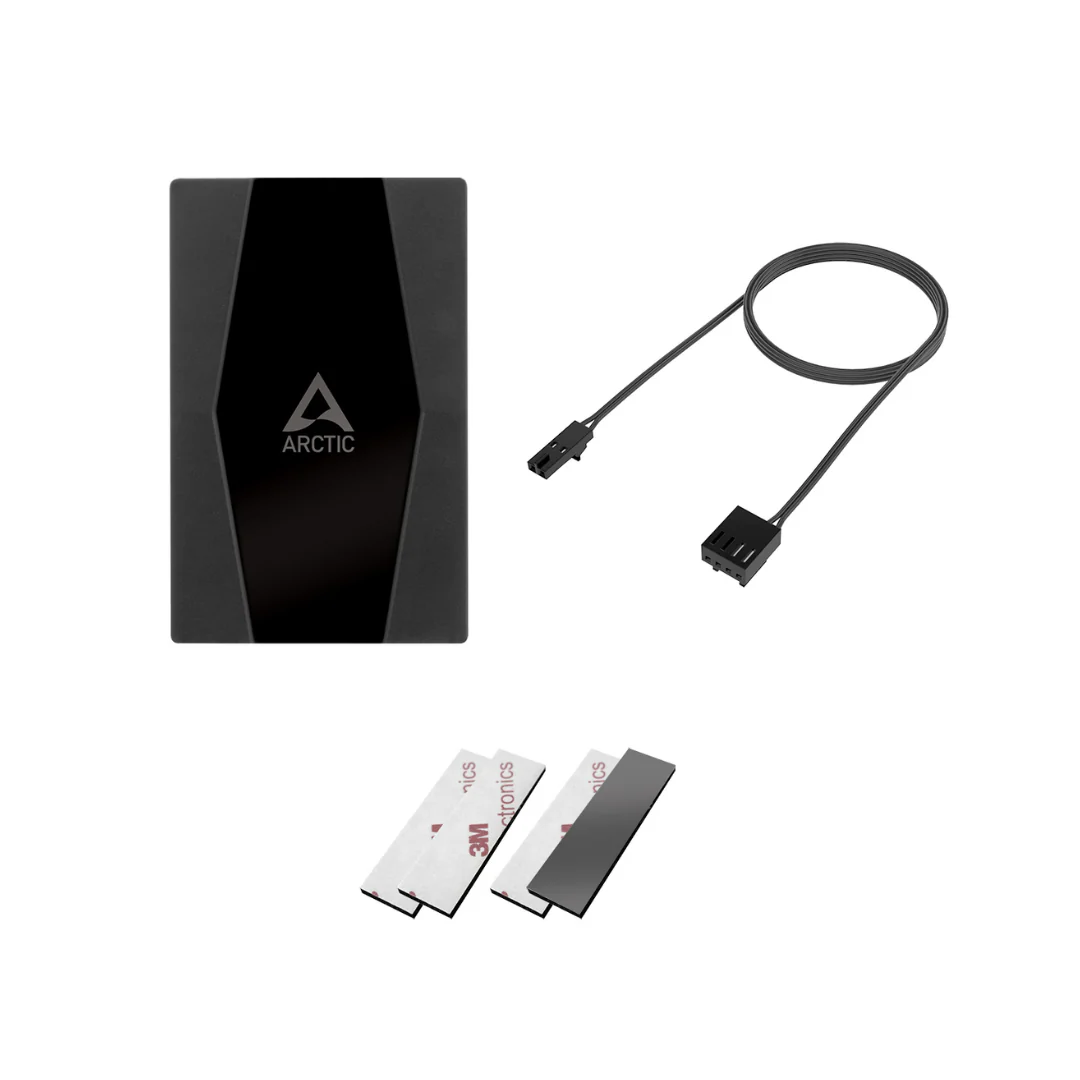

Mounting: Includes adhesive pads and magnetic strips for flexible placement
Features:
- Allows connection and simultaneous control of up to ten 4-pin PWM fans using a single motherboard PWM header.
- Synchronous fan control: The PWM signal from the motherboard is applied to all connected fans, and the RPM of the fan connected to the first port is reported back to the system.
- External power via SATA ensures stable power delivery to all fans without overloading the motherboard fan header.
- Simplifies cable management by centralizing fan connections.
