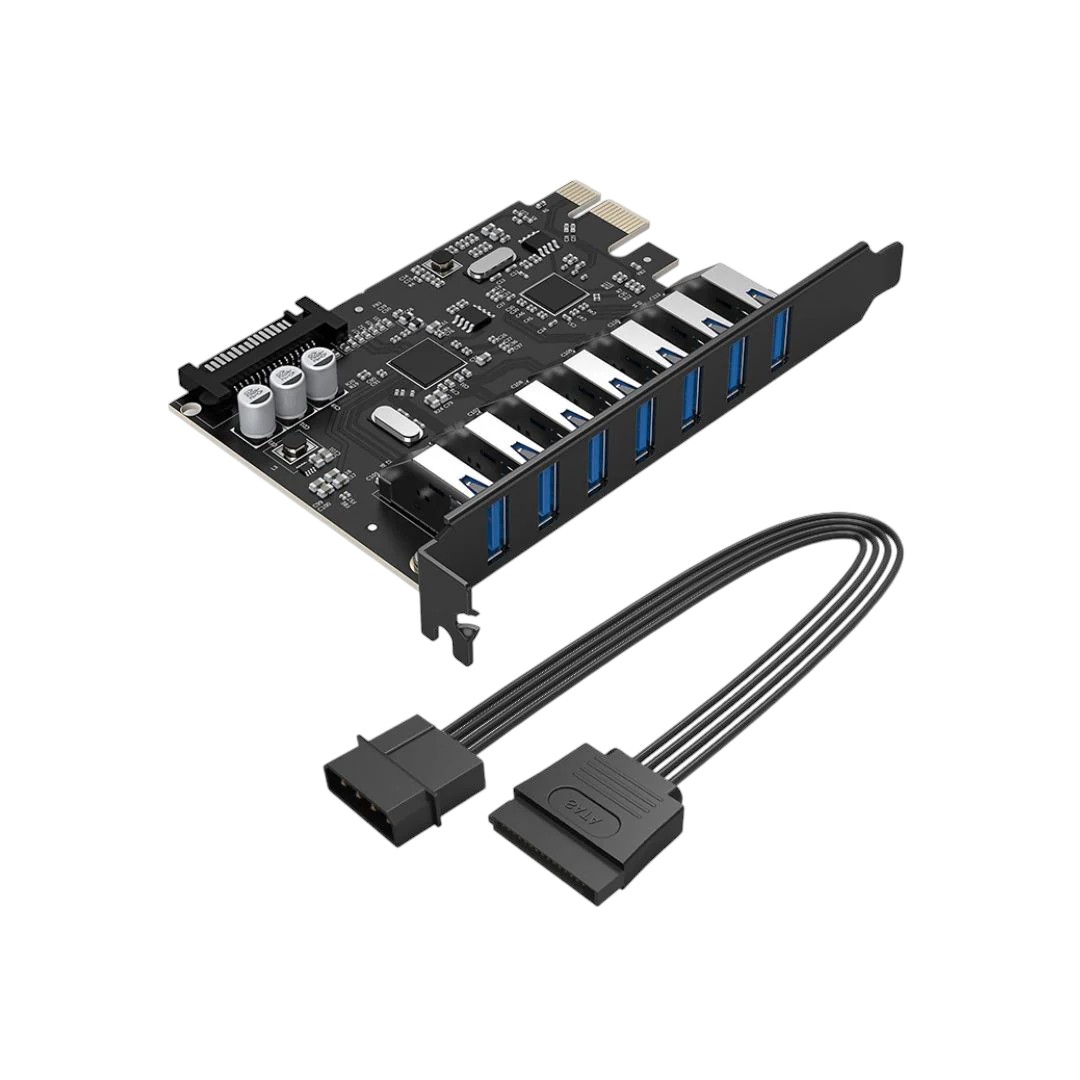

ORICO USB 3.0 PCI-E Expansion Card - 7 Ports - Dual Chip - Model PVU3-7U

ORICO USB 3.0 PCI-E Expansion Card - 7 Ports - Dual Chip - Model PVU3-7U

• Interface Type: PCI-E
• USB Ports: 7 x USB 3.0 Type-A
• Chipset: Dual Host Controllers (likely VIA or Renesas)
• Data Transfer Rate: Up to 5 Gbps per port (USB 3.0 SuperSpeed)
• Power Supply: Requires connection to PC power supply via either a 4-pin Molex or 15-pin SATA power connector for stable power delivery to all ports.
• Features:
  • Expands the number of USB 3.0 ports on a desktop computer.
  • Dual-chip design for enhanced performance and stability.
  • Backward compatible with USB 2.0 and USB 1.1 devices.
  • Supports simultaneous operation of multiple USB devices.
  • Includes over-current protection on each USB port to safeguard connected devices.
• Operating System Compatibility: Windows XP, Vista, 7, 8, 10, Linux
• Included Accessories: Typically includes driver CD, mounting screws, and a 4-pin Molex to 15-pin SATA power cable.
• Dimensions: 121 mm x 82.5 mm x 21.6 mm (may vary slightly)
