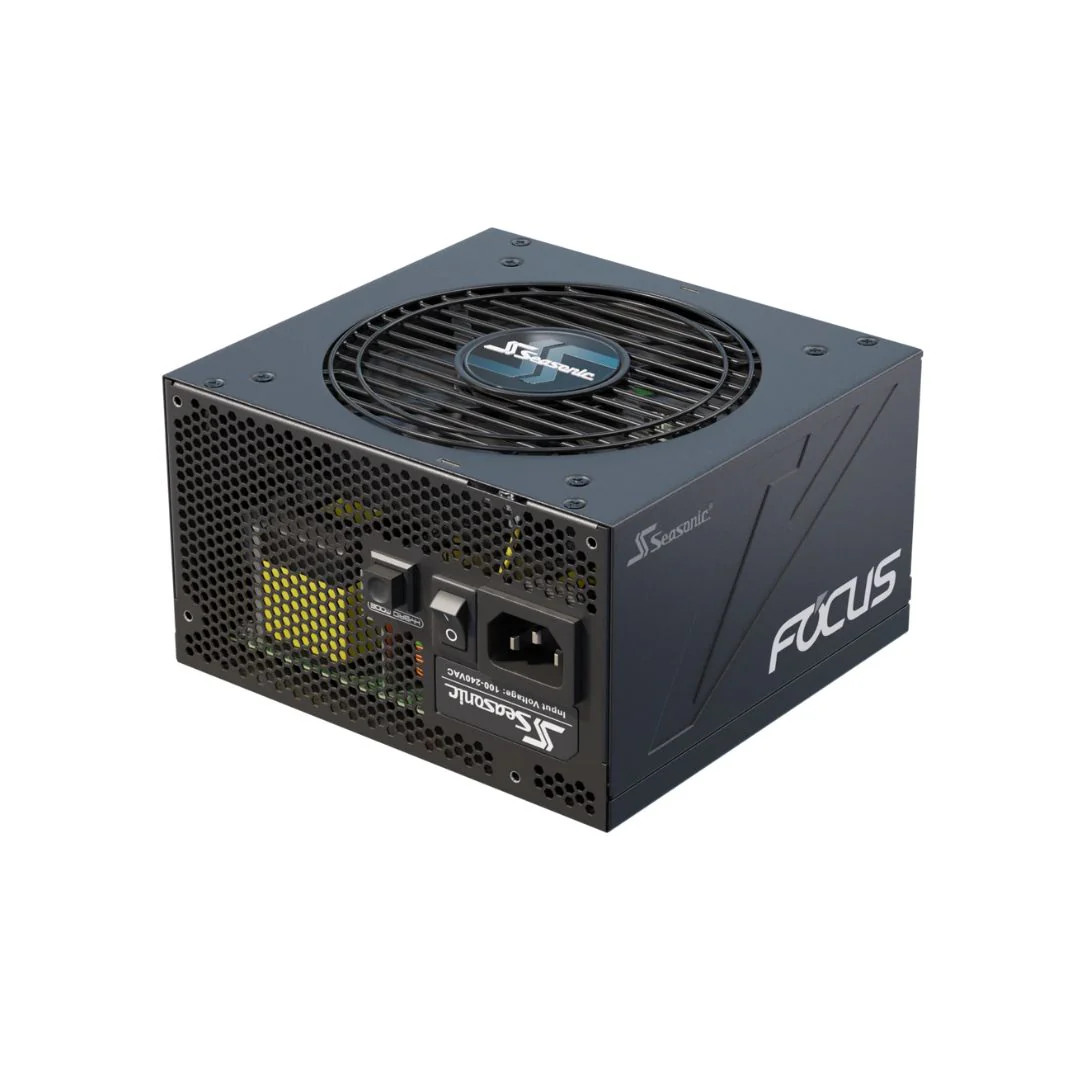

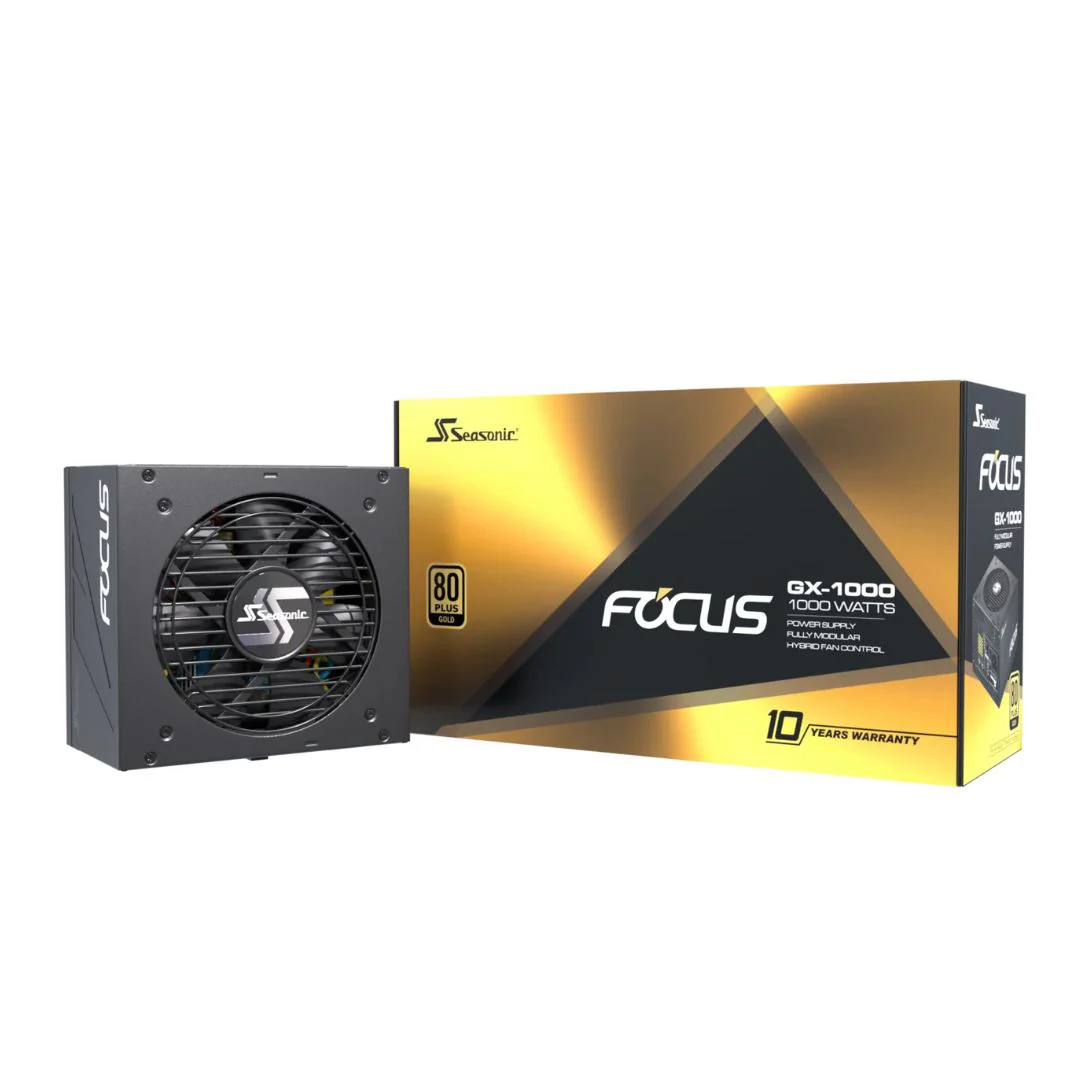

Seasonic FOCUS GX-1000W 80+ Gold Full Modular

Wattage: 1000W
Efficiency: 80+ Gold certified
- Achieves 90% efficiency at 50% load
Modularity: Full Modular
Form Factor: ATX
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

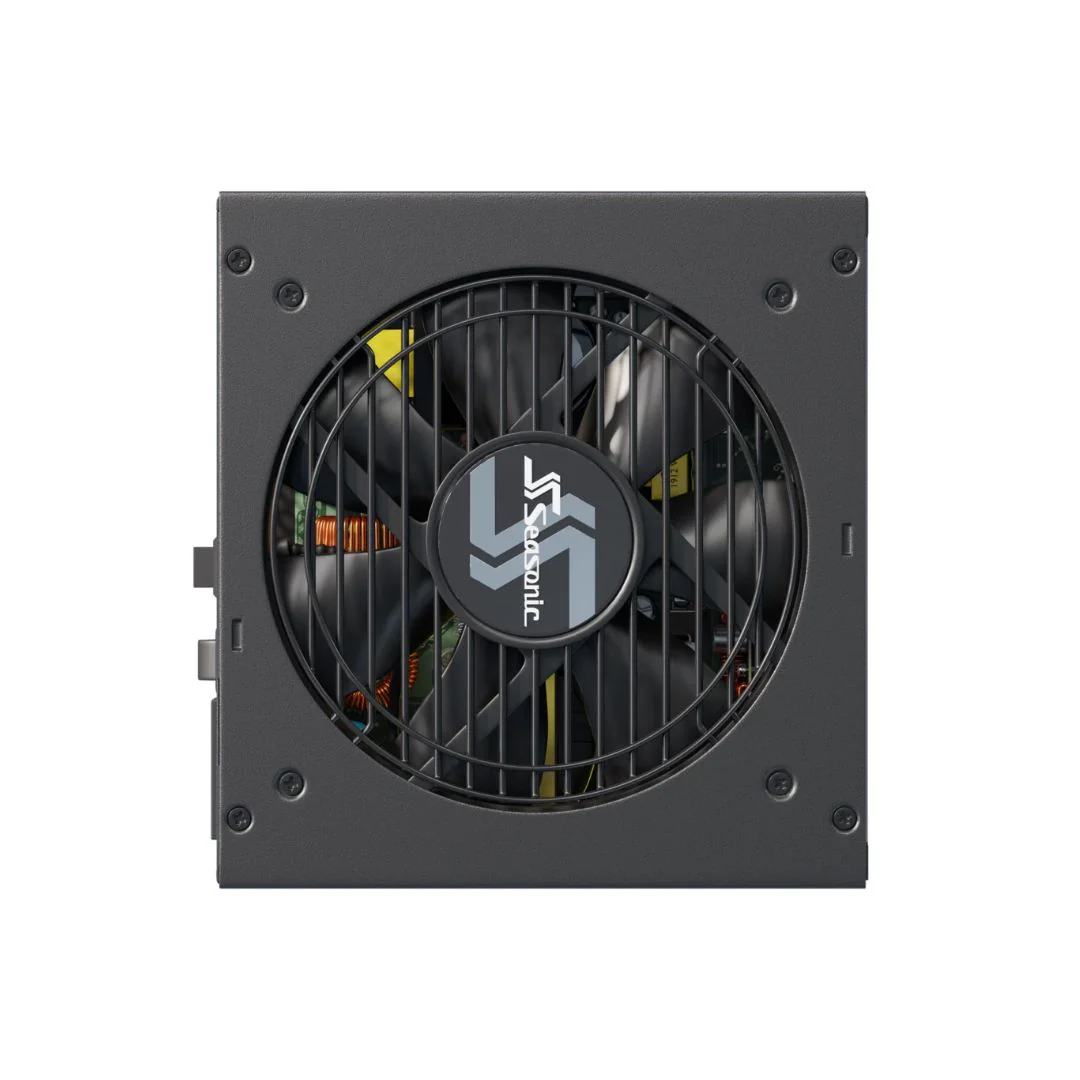

Fan Size: 120mm (some newer revisions may feature a 135mm fan, verify the specific model)
Fan Bearing: Fluid Dynamic Bearing (FDB)
Fan Control: Smart and Silent Fan Control (S3FC)
- Offers Fanless Mode, Silent Mode, and Cooling Mode
- A switch on the back allows users to select between S2FC (fan control without Fanless Mode) and S3FC (fan control including Fanless Mode).
Operating Temperature: 0 - 50 °C (with linear derating)
Protections: OPP, OVP, UVP, OCP, OTP, SCP

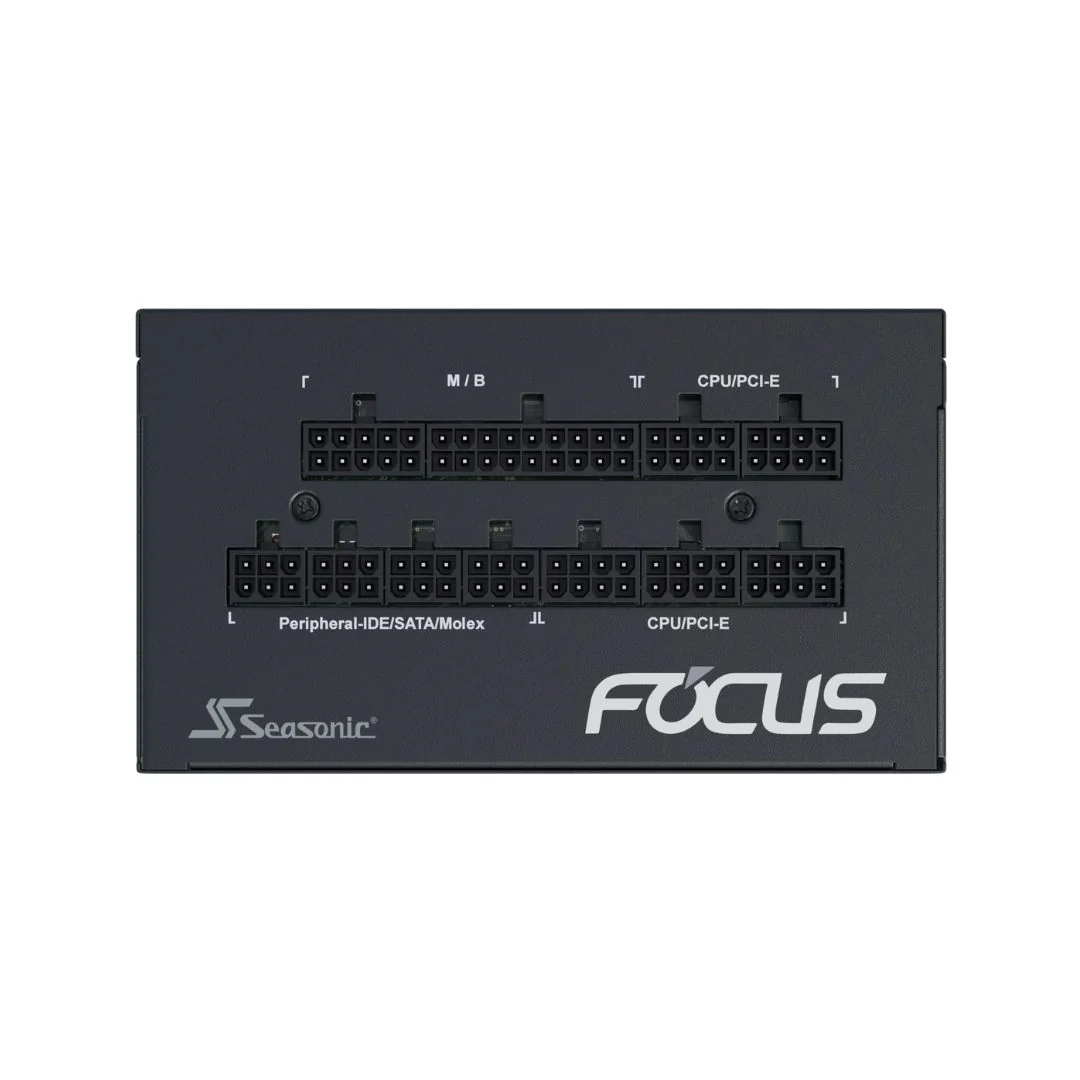

Connectors:
- 1 x 24/20-pin ATX connector
- 2 x 8/4-pin EPS/CPU connectors
- 6 x 8/6-pin PCIe connectors
- 10-12 x SATA connectors (number may vary slightly between revisions)
- 3 x Molex connectors
AC Input: 100 V - 240 V
DC Output:
- +3.3V: 25A
- +5V: 25A (125W Max combined with +3.3V)
- +12V: 83A (996W Max)
- -12V: 0.3A (3.6W Max)
- +5Vsb: 3A (15W Max)
Total Power: 1000W
Certifications: 80 PLUS Gold
