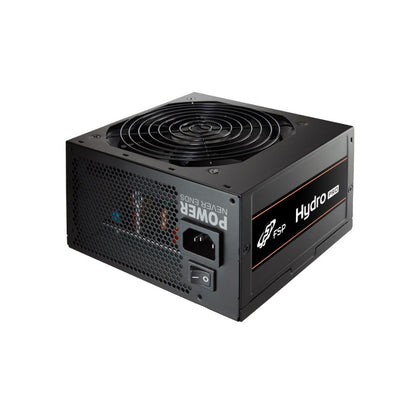

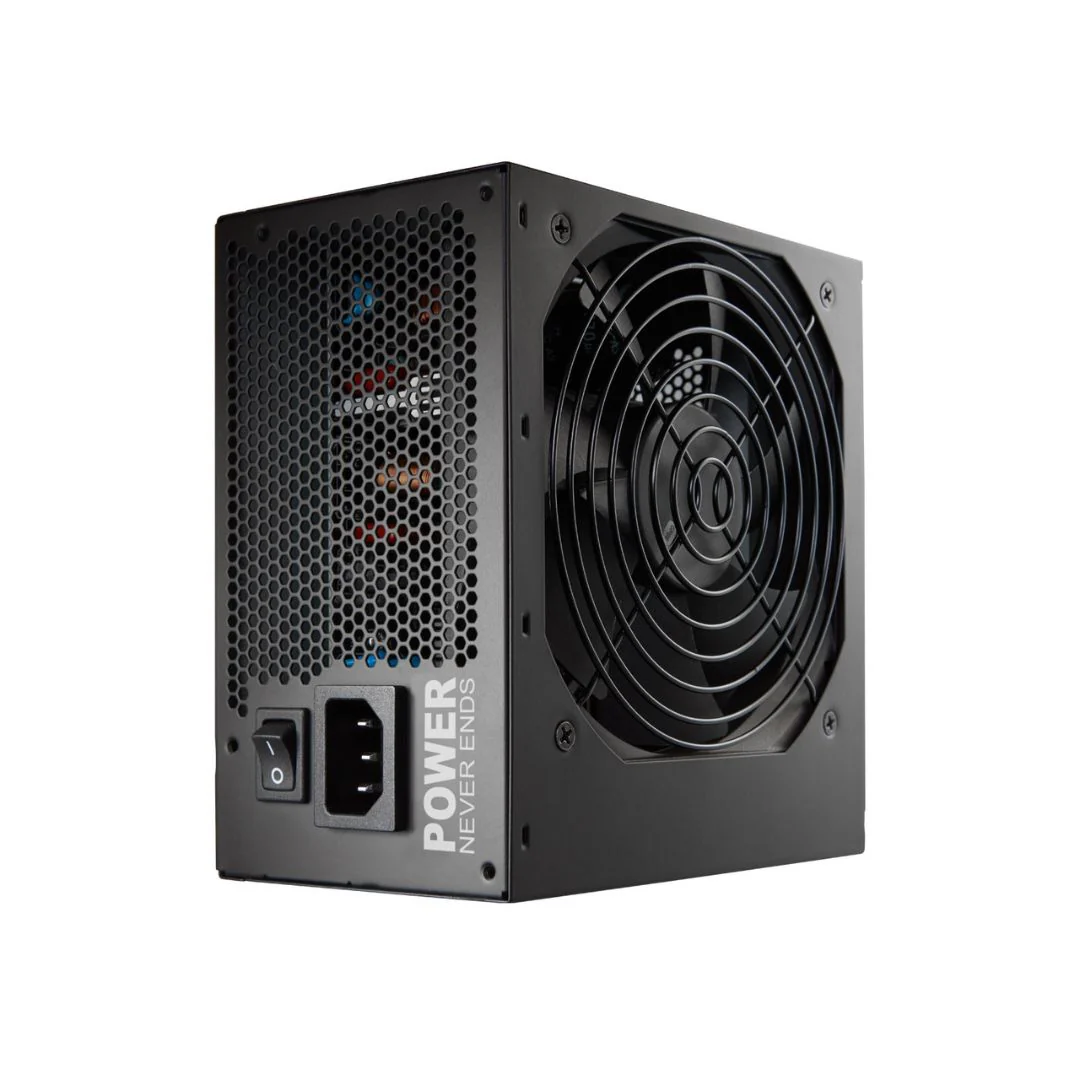

FSP Hydro PRO 800W 80+ Bronze

Wattage: 800W
Efficiency: 80+ Bronze certified (230V EU)
- Typically achieves ≥ 88% efficiency at typical load.
Modularity: Non-Modular (according to some sources), but the "Hydro M PRO" variant is Semi-Modular. It's crucial to check the exact model number you are considering.
Form Factor: ATX
PCIe 5.0 Support: Yes, it includes a 12VHPWR (16-pin) connector for PCIe 5.0 graphics cards.
ATX Standard: Complies with ATX12V v2.52 & EPS12V v2.92 (some sources mention ATX12V v3.0 as well, verify the specific model).

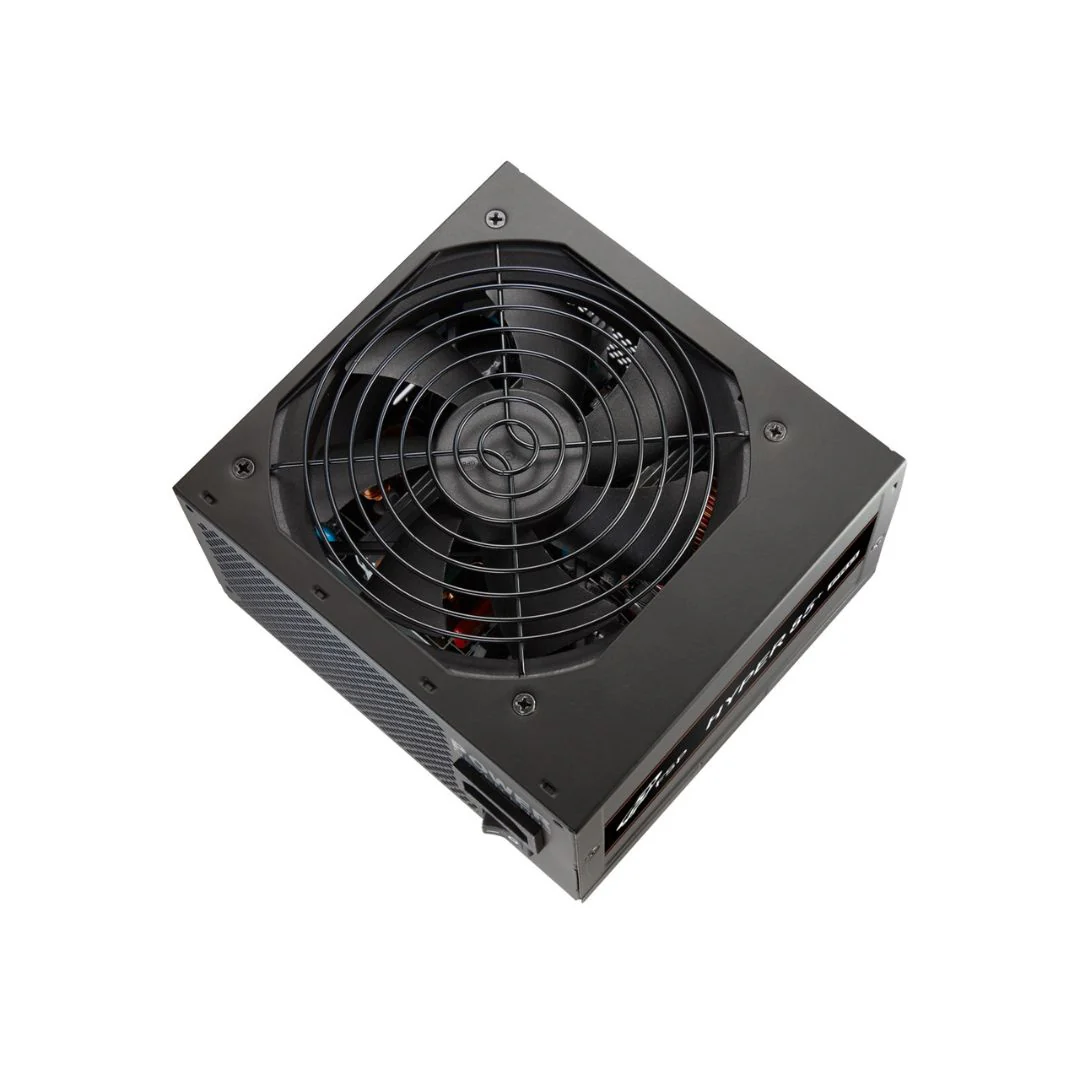

Fan Size: 120mm
Fan Bearing: Sleeve Fan (in some models), Hydraulic Bearing (HYB) fan in "Hydro M PRO" for quieter and longer operation.
0dB Technology: Intelligent fan speed control that adjusts based on heat.
Capacitors: May feature 450V, 105°C heavy-duty capacitors for reliability in harsh environments.
Topology: DC-to-DC module design for stable +5V and +3.3V outputs, and a +12V Single-Rail Design for powerful and stable power to VGA cards.
Connectors (Non-Modular version - may vary in Semi-Modular):
- 1 x ATX 20+4 Pin
- 1 or 2 x EPS 4+4 Pin
- 1 x 12VHPWR (16 Pin)
- Typically 4 x PCIe 6+2 Pin
- Multiple SATA connectors (number varies)
- Multiple Peripheral 4 Pin connectors (number varies)
Cables: Black, flat ribbon cables in the Semi-Modular version. The Non-Modular version will have captive cables.
Protection: OCP (Over Current Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection).
Hold Up Time: > 17ms at 80% Load.
