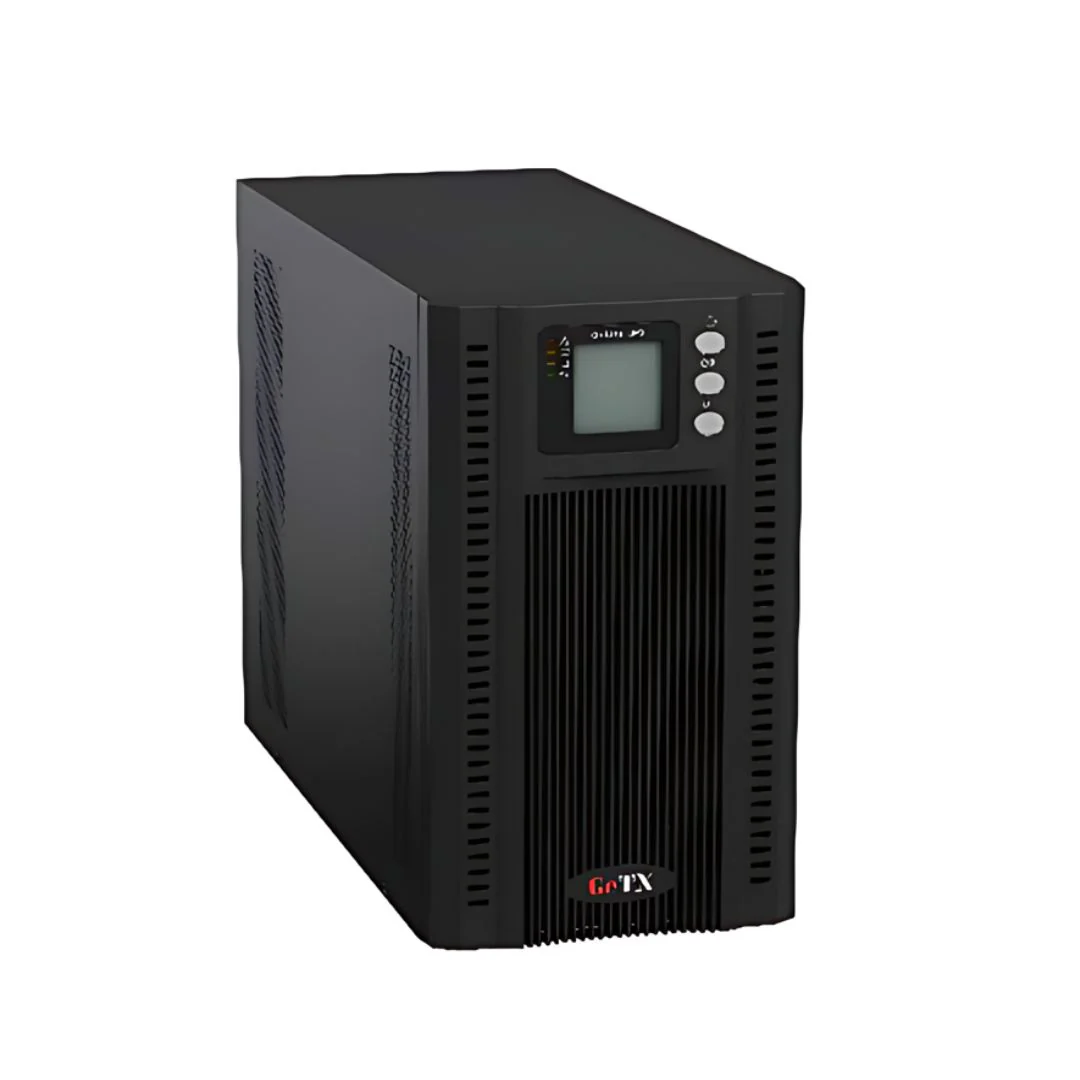

PS GeTX Online GXK-1-1-3-CO 3Kv (3000VA)

Capacity: 3000 VA / 2700 Watts
Topology: Online Double Conversion with Full Digital Control
Battery: 6 x 12V / 9Ah
Output Voltage (Selectable): 208 / 220 / 230 / 240 Vac (± 1%)
Output Waveform: Pure Sine Wave
Output Frequency (Battery Mode): 50 / 60 Hz (± 0.1 Hz)
Input Voltage Range: 110 ~ 300 Vac (176 ~ 280 Vac @ 100% load)
Input Frequency Range: 40 ~ 70 Hz (Auto-sensing)
Input Power Factor: ≥ 0.99 with PFC (Power Factor Correction)
Efficiency (AC Mode): 91%
Efficiency (Battery Mode): 88%
Transfer Time: 0 ms (AC mode to Battery mode), 4 ms (Inverter to Bypass - Typical)
Charging: Smart charger design for optimized battery performance. Maximum charging current can be expanded to 12A (for long run units).
Alarm: Battery mode (beeping every 4 seconds), Battery low (beeping every second), Overload (beeping twice every second), Fault (continuously beeping).
Physical:
- Dimensions (W x D x H): 191 x 460 x 337 mm
- Net Weight: 24.5 kg
Operating Environment:
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -25°C ~ 55°C
- Humidity Range: 20 ~ 95% RH @ 0 ~ 40°C (Non-condensing)
- Altitude: < 1000m
