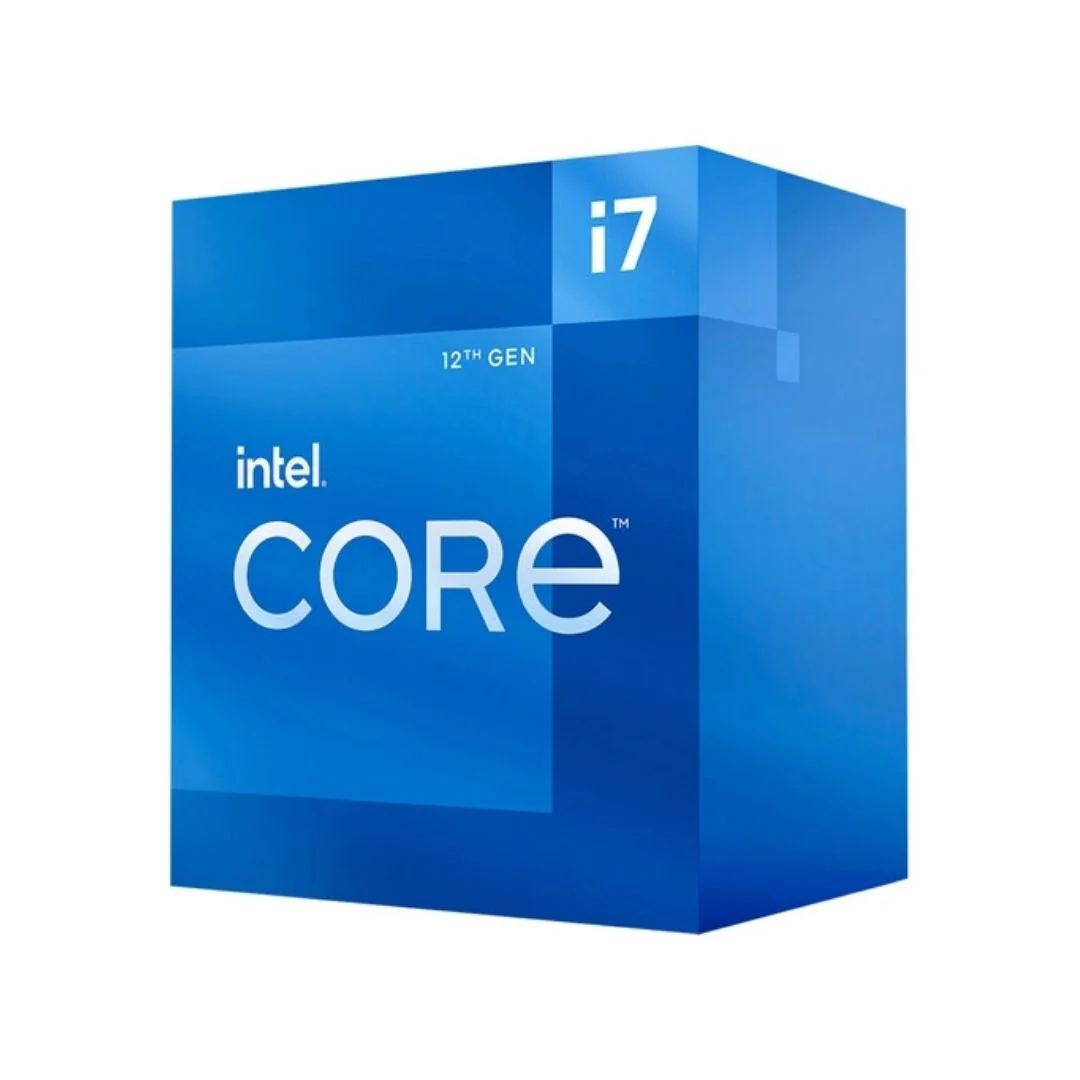

Intel® Core™ i7-12700F Try

Processor Family: Intel Core i7 (12th Generation - "Alder Lake")
CPU Socket: LGA 1700
Core Configuration: Hybrid Architecture
- Total Cores: 12 (8 Performance-cores + 4 Efficient-cores)
- Total Threads: 20 (Hyper-Threading on P-cores)
Clock Speeds:
- P-core Base Frequency: 2.1 GHz
- E-core Base Frequency: 1.6 GHz
- Max Turbo Frequency: Up to 4.9 GHz (using Intel Turbo Boost Max Technology 3.0)
- P-core Max Turbo Frequency: 4.8 GHz
- E-core Max Turbo Frequency: 3.6 GHz
Cache:
- Intel Smart Cache (L3): 25 MB
- Total L2 Cache: 12 MB
Processor Base Power (PBP): 65W
Maximum Turbo Power (MTP): 180W (A capable CPU cooler is recommended to allow the processor to sustain its boost frequencies under heavy loads).
Integrated Graphics: None (Requires a dedicated graphics card).
Memory Support:
- Types: DDR5 up to 4800 MT/s, DDR4 up to 3200 MT/s
- Max Memory Size: 128 GB
- Memory Channels: 2 (Dual-channel)
PCI Express Revision: 5.0 and 4.0
Max # of PCI Express Lanes: 20 (16 lanes for the graphics card, 4 lanes for an NVMe SSD)
Unlocked for Overclocking: No (This "F" series processor is not designed for traditional multiplier-based overclocking).
Supported Chipsets: Compatible with Intel 600-series and 700-series chipset motherboards (a BIOS update might be needed for 600-series boards).
Thermal Solution: Intel Laminar RM1 Cooler (often included in the box).
