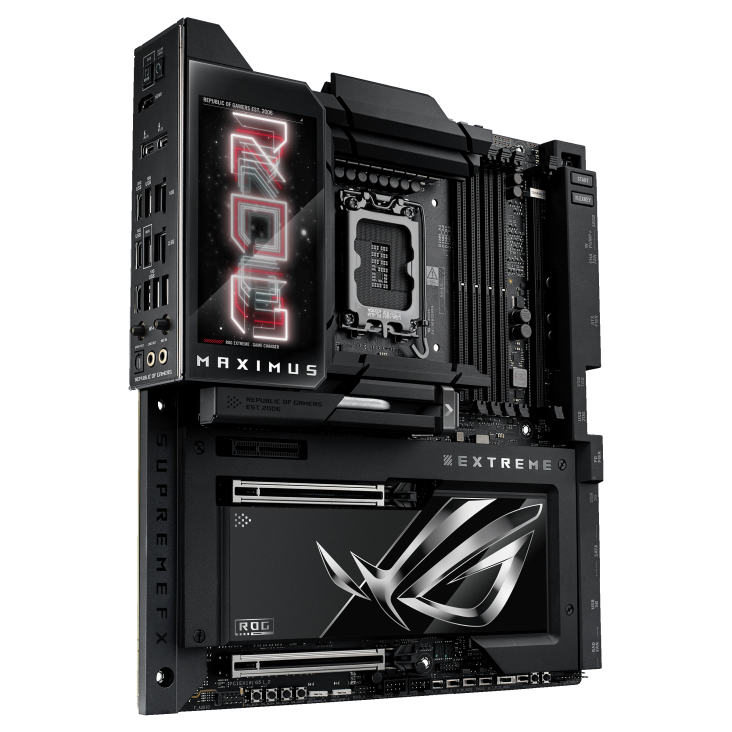

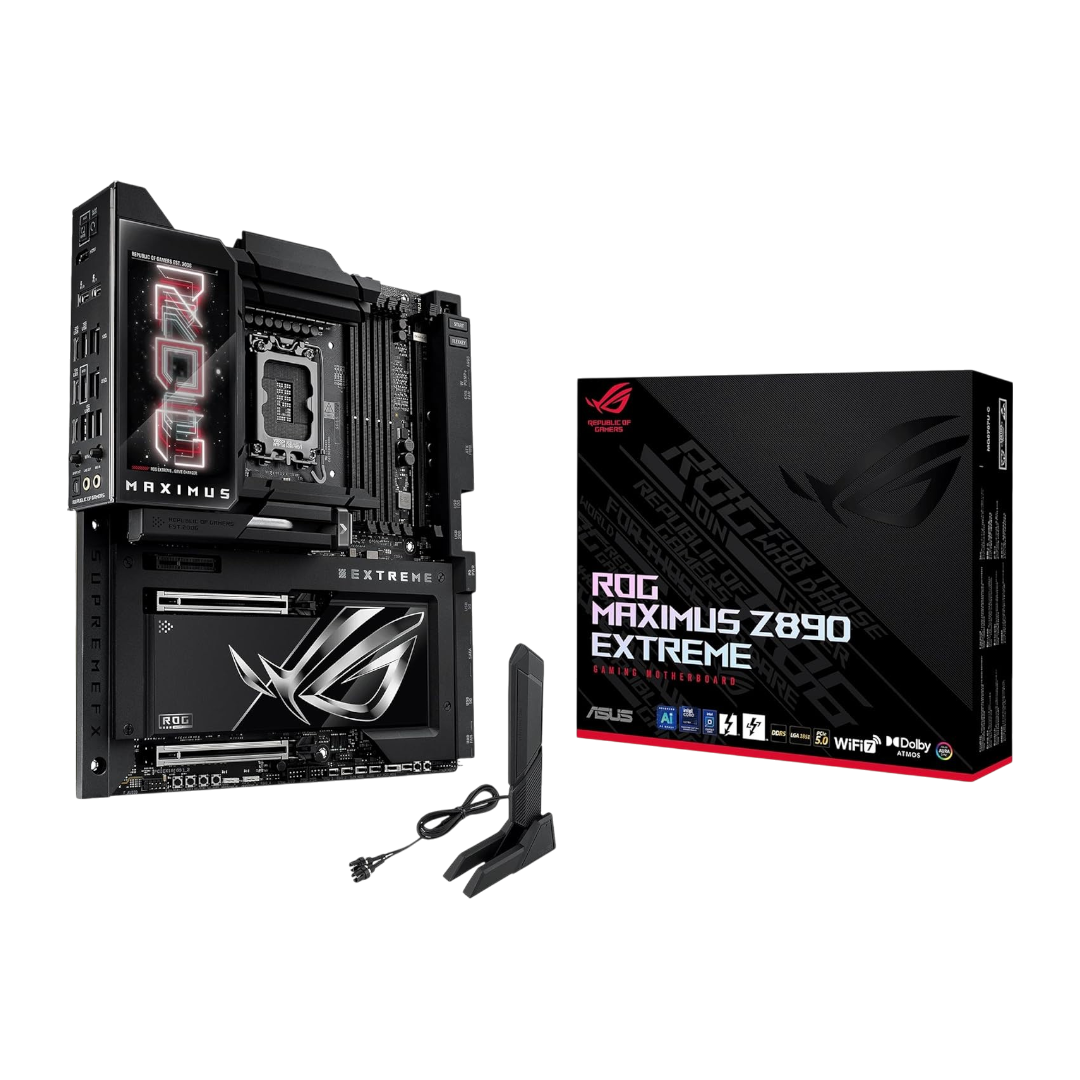

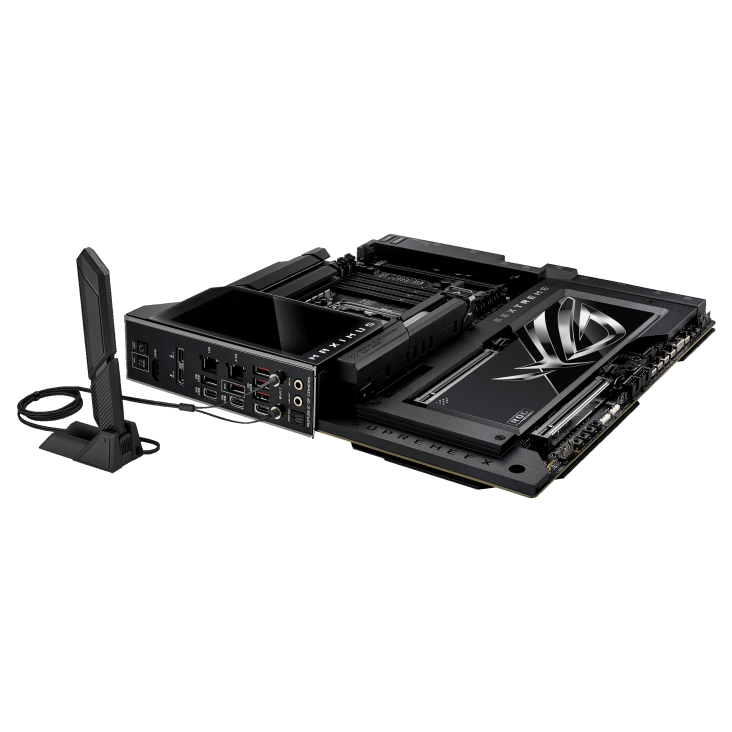

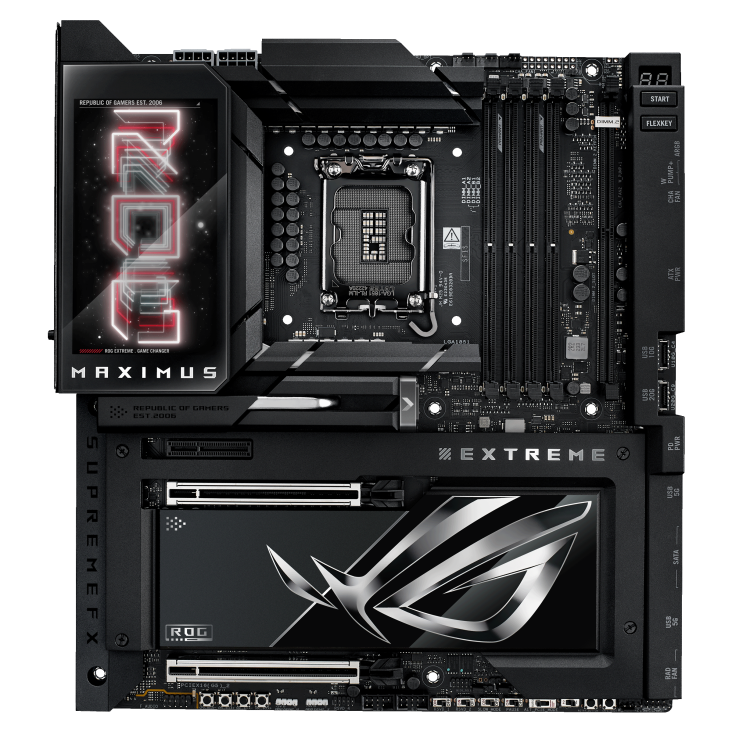

ASUS ROG MAXIMUS Z890 EXTREME
IntelMotherboards

ASUS ROG MAXIMUS Z890 EXTREME

0.0 (0 reviews)
1,850,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1851
  • Chipset: Intel Z890
  • Form Factor: E-ATX (Extended ATX)
  • Memory:
    • Slots: 4 x DIMM slots
    • Type: DDR5
    • Max Capacity: 256 GB (some sources also state 192GB, depending on specific module support)
    • Max Speed (OC): Up to 9200+ MT/s (via overclocking, with technologies like NitroPath DRAM Technology, DIMM Flex, and AEMP III)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design:
    • Power Stages: 24+1+2+2 power stages (24 VCORE @ 110A, 1 VCCGT @ 90A, 2 VCCSA @ 90A, 2 VNNAON @ 80A)
    • Connectors: Dual 8-pin ProCool II power connectors (for CPU)
    • Components: 10K black metallic capacitors, MicroFine alloy chokes
  • Expansion Slots:
    • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
    • 1 x PCIe 4.0 x4 slot (from chipset)
  • Storage:
    • M.2 Slots:
      • 3 x Onboard PCIe 5.0 x4 M.2 slots (2 x 22110, 1 x 2280)
      • 1 x Onboard PCIe 4.0 x4 M.2 slot (2242/2260)
      • 1 x ROG Q-DIMM.2 card slot, supporting 2 x PCIe 4.0 x4 M.2 slots (22110)
      • Total M.2: Up to 6 M.2 slots
      • Cooling: Features 3D VC M.2 Heatsink, ROG M.2 PowerBoost, and substantial cooling solutions for all M.2 slots.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10
  • Networking:
    • Wired: Marvell® 10 Gb Ethernet, Intel® 2.5 Gb Ethernet
    • Wireless: Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna (Tri-Band: 2.4, 5, & 6 GHz, up to 5.8Gbps, 320 MHz, 4096 QAM), Bluetooth® v5.4
  • USB Ports (Rear I/O):
    • 2 x Thunderbolt™ 5 USB Type-C® ports (support DisplayPort and Thunderbolt video outputs, up to 80 Gbps bi-directional, 120 Gbps with Bandwidth Boost)
    • 1 x USB 20Gbps Type-C® port
    • 7 x USB 10Gbps ports (5 x Type-A + 2 x Type-C®)
  • USB Ports (Internal Headers):
    • 1 x USB 20Gbps Type-C® front-panel connector (with Quick Charge 4+ up to 60W, USB Wattage Watcher)
    • 1 x USB 10Gbps Type-C® front-panel connector
    • Multiple USB 5Gbps and USB 2.0 headers
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 with ESS® ES9219 Quad DAC (120 dB SNR stereo playback output, 110 dB SNR recording input), Dolby Atmos support.
  • Display Output (from CPU iGPU):
    • 1 x HDMI™ 2.1 port (up to 8K@60Hz with DSC)
    • Via Thunderbolt™ 5 USB Type-C® ports
  • Special Features:
    • Full Color 5” LCD Display (for exclusive ROG animations, system info, personalization)
    • AI Intelligence: AI Networking II, AI Overclocking, AI Cooling II, ASUS AI Advisor, NPU Boost.
    • Overclocker's Toolkit: Safe Boot Button, RSVD Switch, LN2 Mode, BIOS Switch, ReTry Button, Start Button.
    • Q-Design Features: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, Q-Code.
    • Aura Sync RGB Lighting (multiple Gen 2 ARGB headers).
    • BIOS FlashBack™ button, Clear CMOS button.

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQ42WA
