ASUS ROG MAXIMUS Z890 APEX
IntelMotherboards

ASUS ROG MAXIMUS Z890 APEX

0.0 (0 reviews)
1,000,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1851
  • Chipset: Intel Z890
  • Form Factor: ATX
  • Memory:
    • Slots: 2 x DIMM slots (optimized for extreme memory overclocking)
    • Type: DDR5
    • Max Capacity: 96 GB (using 48GB modules) or 128 GB (using 64GB modules, though 96GB is more common for Apex boards due to 2 slots)
    • Max Speed (OC): Up to 9600+ MT/s (significantly higher than standard boards, facilitated by ROG Memory Fan Kit, DIMM Fit, DIMM Flex, and AEMP III)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design:
    • Power Stages: 22+1+2+2 power stages (22 VCORE @ 110A, 1 VCCGT @ 90A, 2 VCCSA @ 90A, 2 VNNAON @ 80A)
    • Connectors: Dual 8-pin ProCool II power connectors (for CPU)
    • Components: MicroFine alloy chokes, premium metallic capacitors
  • Expansion Slots:
    • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes for graphics cards)
    • 2 x PCIe 4.0 x4 slots (from chipset)
  • Storage:
    • M.2 Slots:
      • 3 x Onboard PCIe 5.0 x4 M.2 slots (1 x 22110, 2 x 2280)
      • 1 x Onboard PCIe 4.0 x4 M.2 slot (2242/2260/2280)
      • 1 x ROG DIMM.2 card slot, supporting 2 x PCIe 4.0 x4 M.2 slots (22110)
      • Total M.2: Up to 6 M.2 slots
      • Cooling: Features substantial heatsinks with backplates for all M.2 slots, and ROG M.2 PowerBoost.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10
  • Networking:
    • Wired: Realtek 5 Gb Ethernet
    • Wireless: Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna (Tri-Band: 2.4, 5, & 6 GHz, up to 5.8Gbps), Bluetooth® v5.4

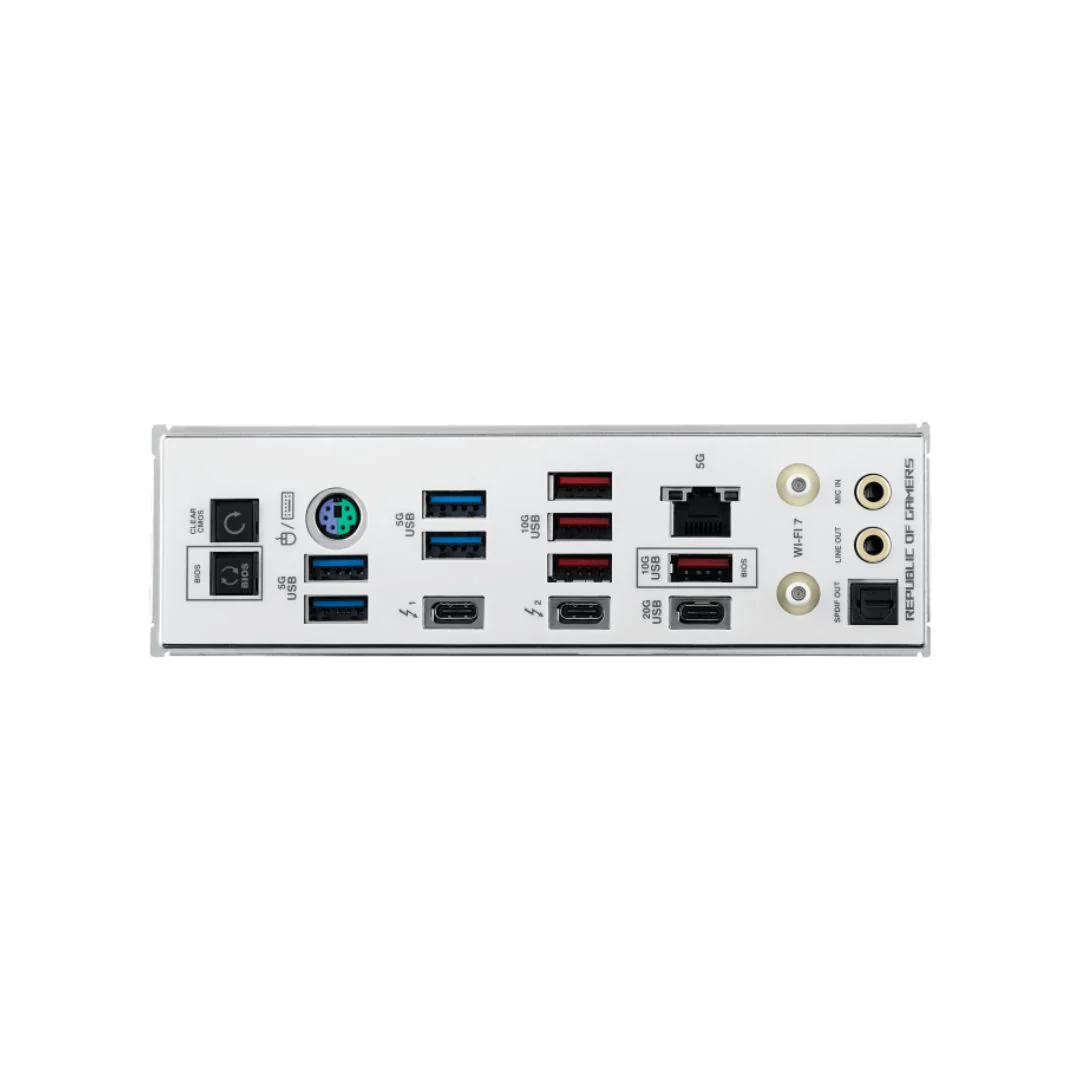

  • USB Ports (Rear I/O):
    • 2 x Thunderbolt™ 4 USB Type-C® ports (support DisplayPort, up to 40 Gbps bi-directional)
    • 1 x USB 20Gbps Type-C® port
    • 4 x USB 10Gbps Type-A ports
    • 4 x USB 5Gbps Type-A ports
  • USB Ports (Internal Headers):
    • 1 x USB 20Gbps Type-C® front-panel connector (with Quick Charge 4+ up to 60W, USB Wattage Watcher)
    • 1 x USB 10Gbps Type-C® front-panel connector
    • Multiple USB 5Gbps and USB 2.0 headers
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with Savitech SV3H712 AMP, Dolby Atmos support.
  • Display Output (from CPU iGPU): Via Thunderbolt™ 4 USB Type-C® ports
  • Special Features (Overclocking Focused):
    • AI Intelligence: AI Overclocking, AI Cooling II, AI Networking II, ASUS AI Advisor, NPU Boost.
    • Overclocker's Toolkit: Safe Boot Button, RSVD Switch, LN2 Mode, BIOS Switch, ReTry Button, Start Button, Probeit measurement points.
    • Q-Design Features: PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-LED, Q-Code.
    • ROG Memory Fan Kit (included for active DDR5 cooling).
    • Aura Sync RGB Lighting.
    • BIOS FlashBack™ button, Clear CMOS button.

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQ49RR
