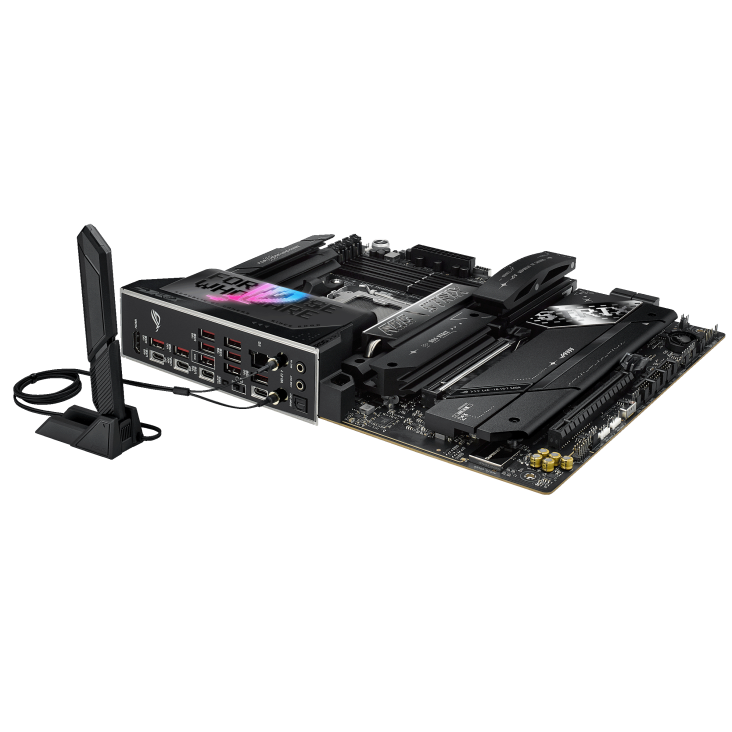

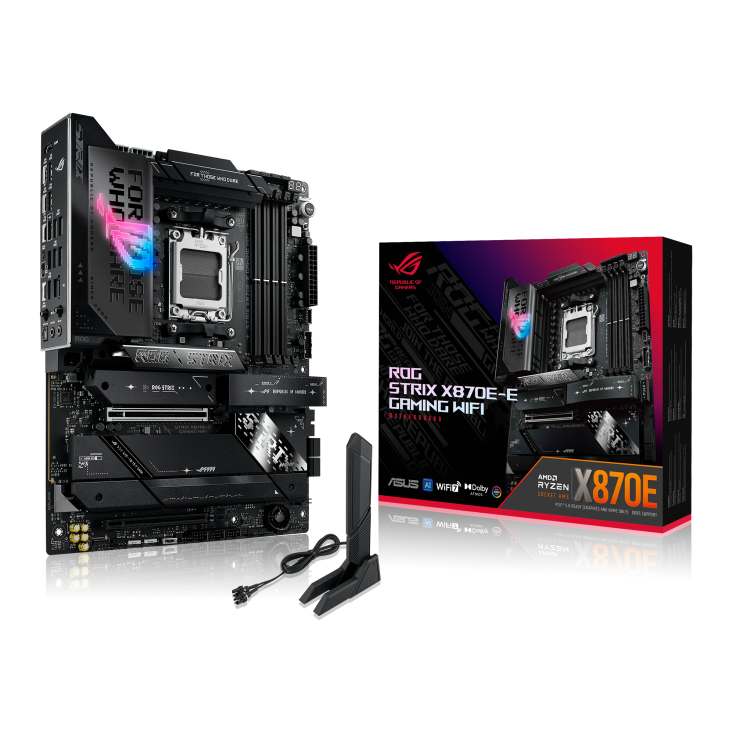

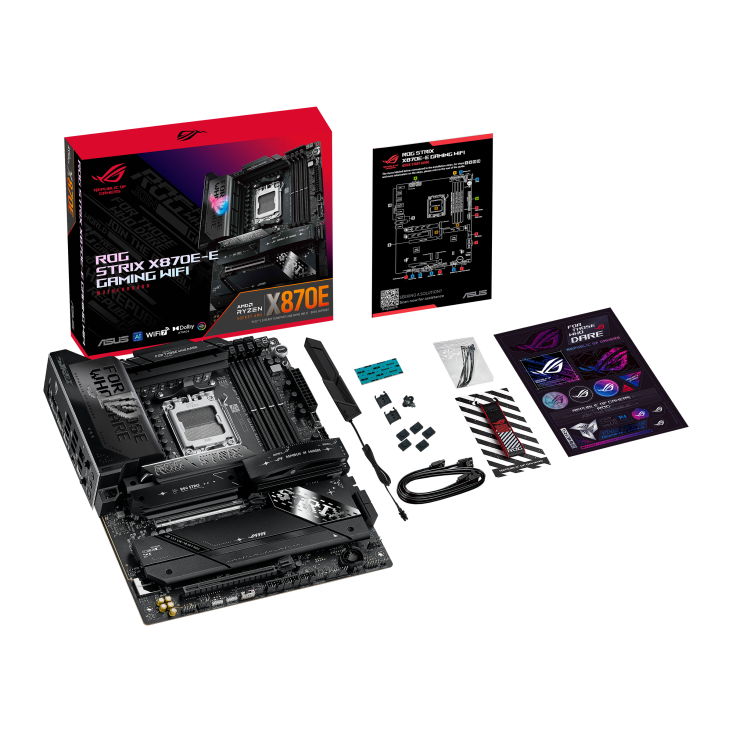

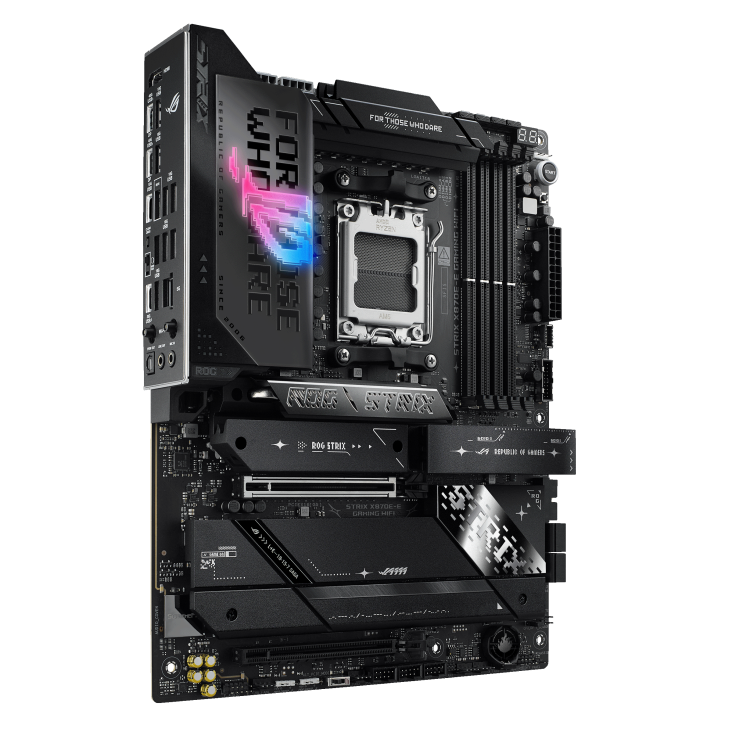

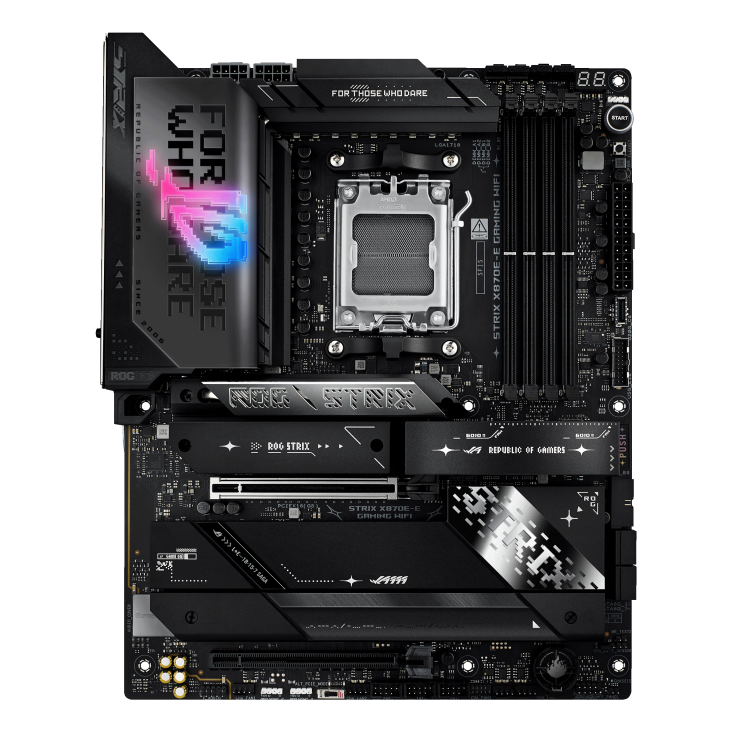

ASUS ROG STRIX X870E-E GAMING WIFI
AMDMotherboards

ASUS ROG STRIX X870E-E GAMING WIFI

0.0 (0 reviews)
750,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: AM5
  • Chipset: AMD X870E
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB (or 256GB according to some ASUS specs)
    • Max Speed (OC): Supports up to 8000+ MT/s (for Ryzen 9000 Series, higher for 8000 Series) via overclocking (AMD EXPO™ and ASUS AEMP III)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design:
    • Power Stages: 18+2+2 power stages (each rated for up to 110A for VCORE, 110A for SoC, 80A for MISC)
    • Connectors: Dual ProCool II power connectors (for CPU)
    • Components: Alloy chokes and durable capacitors for stable power delivery.
  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU, supports x16 mode for Ryzen 9000/7000 series, x8/x4 for Ryzen 8000 series)
    • 1 x PCIe 4.0 x16 slot (from chipset, supports x4 mode)
  • Storage:
    • M.2 Slots: Total of 5 M.2 slots
      • 3 x Onboard PCIe 5.0 x4 M.2 slots (one 22110, two 2280)
      • 2 x Onboard PCIe 4.0 x4 M.2 slots (both 2280)
      • Cooling: All M.2 slots feature substantial heatsinks for effective heat dissipation.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10
  • Networking:
    • Wired: Realtek 5 Gb Ethernet with ASUS LANGuard
    • Wireless: Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna (Tri-Band: 2.4, 5, & 6 GHz, up to 6.5 Gbps transfer rate), Bluetooth® v5.4
  • USB Ports (Rear I/O):
    • 2 x USB4® (40Gbps) Type-C® ports (support DisplayPort output)
    • 1 x USB 20Gbps Type-C® port (with up to 30W PD Fast-charge)
    • 9 x USB 10Gbps ports (8 x Type-A + 1 x Type-C®)
    • 1 x HDMI™ 2.1 port (from CPU iGPU)
  • USB Ports (Internal Headers):
    • 1 x USB 20Gbps Type-C® front-panel connector (supports Quick Charge 4+)
    • 2 x USB 5Gbps headers (support 4 additional ports)
    • 3 x USB 2.0 headers (support 6 additional ports)
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 (some specs list ALC4080) with Savitech SV3H712 AMP, Dolby Atmos support. Features 120 dB SNR stereo playback.
  • Special Features:
    • AI Intelligence: AI Overclocking, AI Cooling II, AI Networking II, ASUS AI Advisor.
    • Overclocking Features: Dynamic OC Switcher, Core Flex, Asynchronous Clock, PBO Enhancement.
    • Q-Design Features: PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-LED, Q-Code.
    • Aura Sync: RGB Lighting with multiple Addressable Gen 2 RGB Headers.
    • BIOS FlashBack™ button, Clear CMOS button.

المواصفات

العلامة التجاريةAMD
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQ4JVT
750,000 IQD
