MSI MPG X870E CARBON WIFI
AMDMotherboards

MSI MPG X870E CARBON WIFI

0.0 (0 reviews)
700,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: AM5
  • Chipset: AMD X870E
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DDR5 DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 256 GB
    • Max Speed (OC): Up to 8400+ MT/s (via overclocking, with MSI Memory Boost and EXPO support)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design:
    • Power Stages: 18+2+1 Duet Rail Power System (each VCORE phase rated for 110A)
    • Connectors: Dual 8-pin CPU power connectors (ProCool II equivalent)
    • Components: High-quality power stages, 8-layer PCB with 2oz thickened copper for stability.
  • Expansion Slots:
    • 2 x PCIe 5.0 x16 slots (from CPU, supports x16 or x8/x8 modes with Ryzen 9000/7000 series, x8/x4 for Ryzen 8000 series APUs)
    • 1 x PCIe 4.0 x16 slot (from chipset, supports x4 mode)
  • Storage:
    • M.2 Slots: Total of 4 M.2 slots
      • 2 x PCIe 5.0 x4 M.2 slots (from CPU)
      • 2 x PCIe 4.0 x4 M.2 slots (from chipset)
      • Cooling: Features Double-Sided M.2 Shield Frozr (large heatsinks) for all M.2 slots.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10
  • Networking:
    • Wired: Realtek 5 Gb Ethernet, Realtek 2.5 Gb Ethernet
    • Wireless: Wi-Fi 7 (802.11be) with MU-MIMO support (Tri-Band: 2.4, 5, & 6 GHz, up to 5.8 Gbps), Bluetooth® v5.4

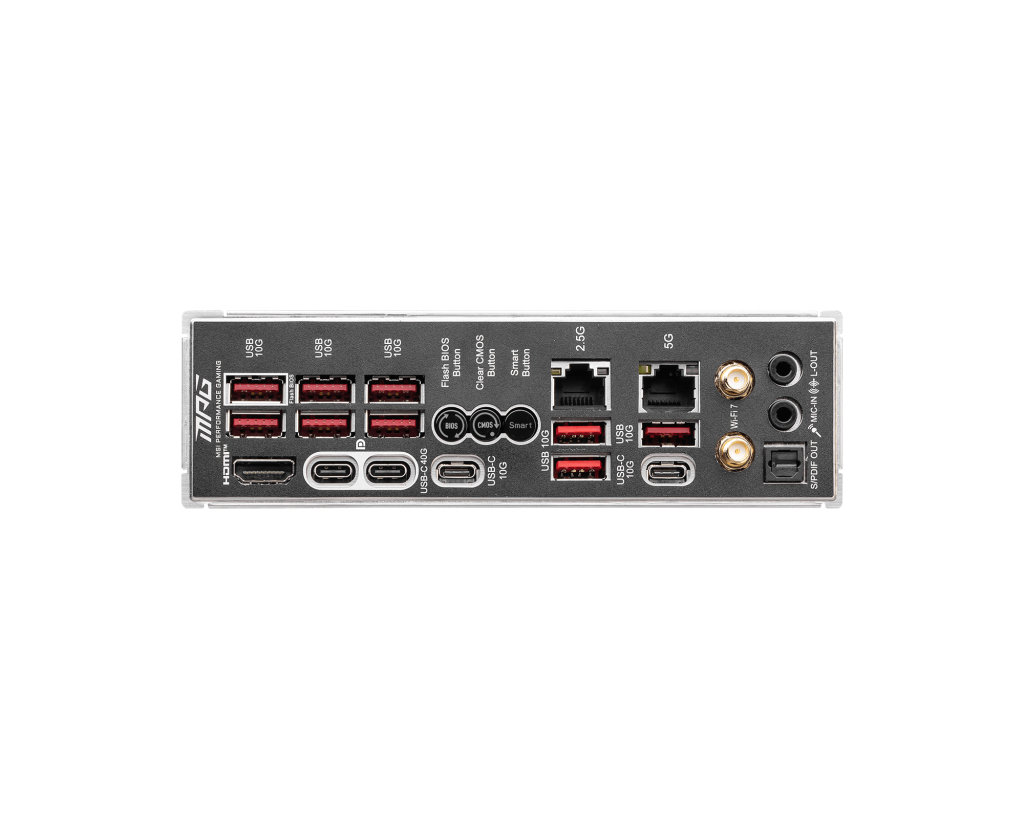

  • USB Ports (Rear I/O):
    • 2 x USB4® Type-C® ports (40Gbps, support DisplayPort output)
    • 2 x USB 10Gbps Type-C® ports (one from CPU, one from chipset)
    • 9 x USB 10Gbps Type-A ports (combination from CPU and chipset)
    • 1 x HDMI 2.1 port (from CPU iGPU)
    • Dedicated Flash BIOS Button, Clear CMOS Button, Smart Button (customizable)
  • USB Ports (Internal Headers):
    • 1 x USB 20Gbps Type-C® front-panel connector (with 27W PD Fast-charge)
    • Multiple USB 5Gbps (USB 3.2 Gen 1) and USB 2.0 headers
  • Audio: Realtek ALC4080 Codec with 7.1-Channel USB High-Performance Audio, supports up to 32-Bit/384 kHz playback on front panel, S/PDIF output.
  • Special Features:
    • AI Engine: AI LAN MANAGER, Frozr AI Cooling, AI Boost (for NPU performance with compatible CPUs).
    • Premium Thermal Design: Extended Heatsink with Heat-pipe, 7W/mK MOSFET Thermal Pads, Enlarged PCH Heatsink.
    • EZ DIY Features: Pre-installed I/O Shield, EZ M.2 Clip II, EZ PCIe Release, Flash BIOS Button, Smart Button.
    • MSI Center: Software suite for monitoring, tuning, and customizing the system.
    • Mystic Light: Customizable RGB lighting.
    • Durability: 8-Layer Server Grade PCB with 2oz thickened copper, Steel Armor II for PCIe slots.

المواصفات

العلامة التجاريةAMD
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQ4WFN
700,000 IQD
