MSI PRO X870-P WIFI
AMDMotherboards

MSI PRO X870-P WIFI

0.0 (0 reviews)
425,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: AM5
  • Chipset: AMD X870
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DDR5 DIMM slots
    • Max Capacity: Up to 256 GB
    • Max Speed (OC): Up to 8200+ MT/s (via overclocking, with MSI Memory Boost and EXPO support)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design:
    • Power Stages: 14+2+1 Duet Rail Power System (VCORE phases rated for 60A)
    • Connectors: Dual 8-pin CPU power connectors
    • Components: 8-layer PCB with 2oz thickened copper
  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU)
    • 1 x PCIe 4.0 x16 slot (from chipset, runs at x4 mode)
    • 2 x PCIe 3.0 x1 slots (from chipset)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots
      • 1 x PCIe 5.0 x4 M.2 slot (from CPU)
      • 1 x PCIe 4.0 x4 M.2 slot (from chipset)
      • 1 x PCIe 4.0 x2 M.2 slot (from chipset, shares bandwidth with PCIe 4.0 x16 slot)
      • Cooling: Features M.2 Shield Frozr (heatsinks) for M.2 slots.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5 (for M.2 NVMe), RAID 0, 1, 10 (for SATA)
  • Networking:
    • Wired: Realtek 8126VB 5 Gb Ethernet
    • Wireless: Wi-Fi 7 (802.11be) with MU-MIMO support (Tri-Band: 2.4, 5, & 6 GHz, up to 5.8 Gbps), Bluetooth® v5.4

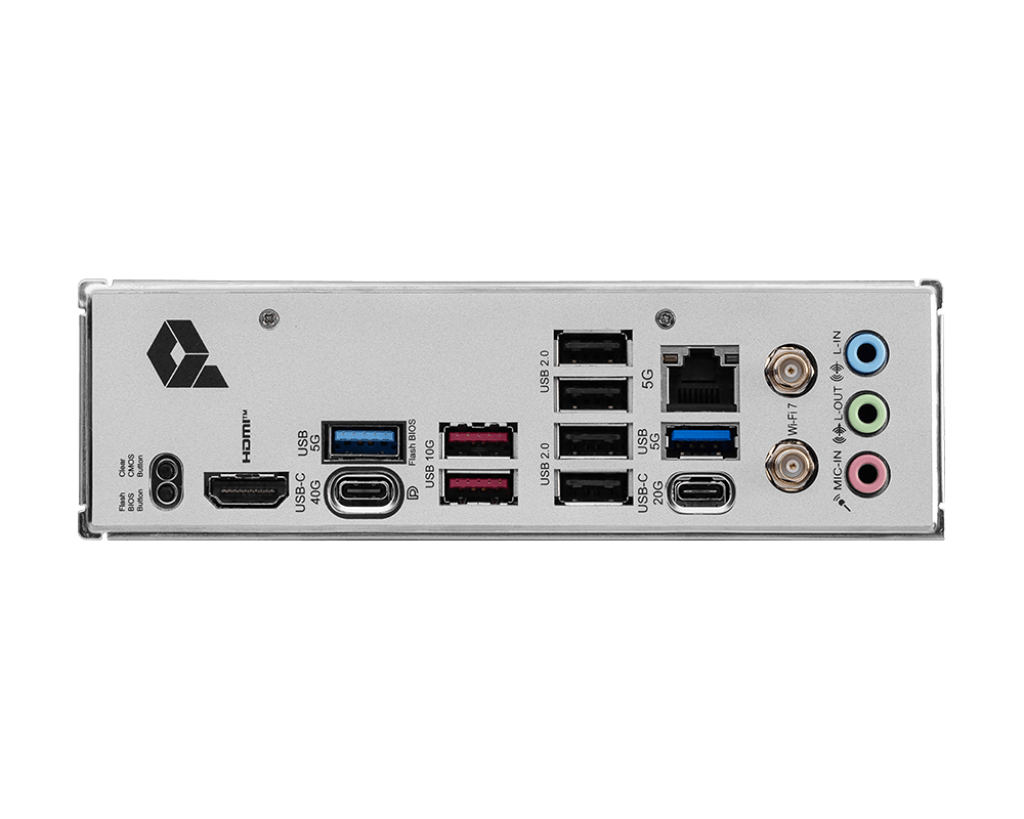

  • USB Ports (Rear I/O):
    • 1 x USB4® Type-C® port (40Gbps, supports DisplayPort output)
    • 1 x USB 20Gbps Type-C® port
    • 2 x USB 10Gbps Type-A ports
    • 2 x USB 5Gbps Type-A ports
    • 4 x USB 2.0 Type-A ports
    • 1 x HDMI™ 2.1 port (from CPU iGPU)
  • USB Ports (Internal Headers):
    • 1 x USB 10Gbps Type-C® front-panel connector (with 27W PD Fast-charge)
    • 1 x USB 5Gbps header (supports 2 ports)
    • 2 x USB 2.0 headers (support 4 additional ports)
  • Audio: Realtek ALC897 Codec with 7.1-Channel High Definition Audio.
  • Special Features:
    • AI Engine: Frozr AI Cooling, AI Boost (for NPU performance with compatible CPUs).
    • Thermal Design: Extended Heatsink Design, M.2 Shield Frozr.
    • EZ DIY Features: Pre-installed I/O Shield, EZ M.2 Clip II, EZ PCIe Clip II, Flash BIOS Button, Clear CMOS Button.
    • MSI Center: Software suite for monitoring and tuning.
    • Durability: Steel Armor for PCIe slot.
