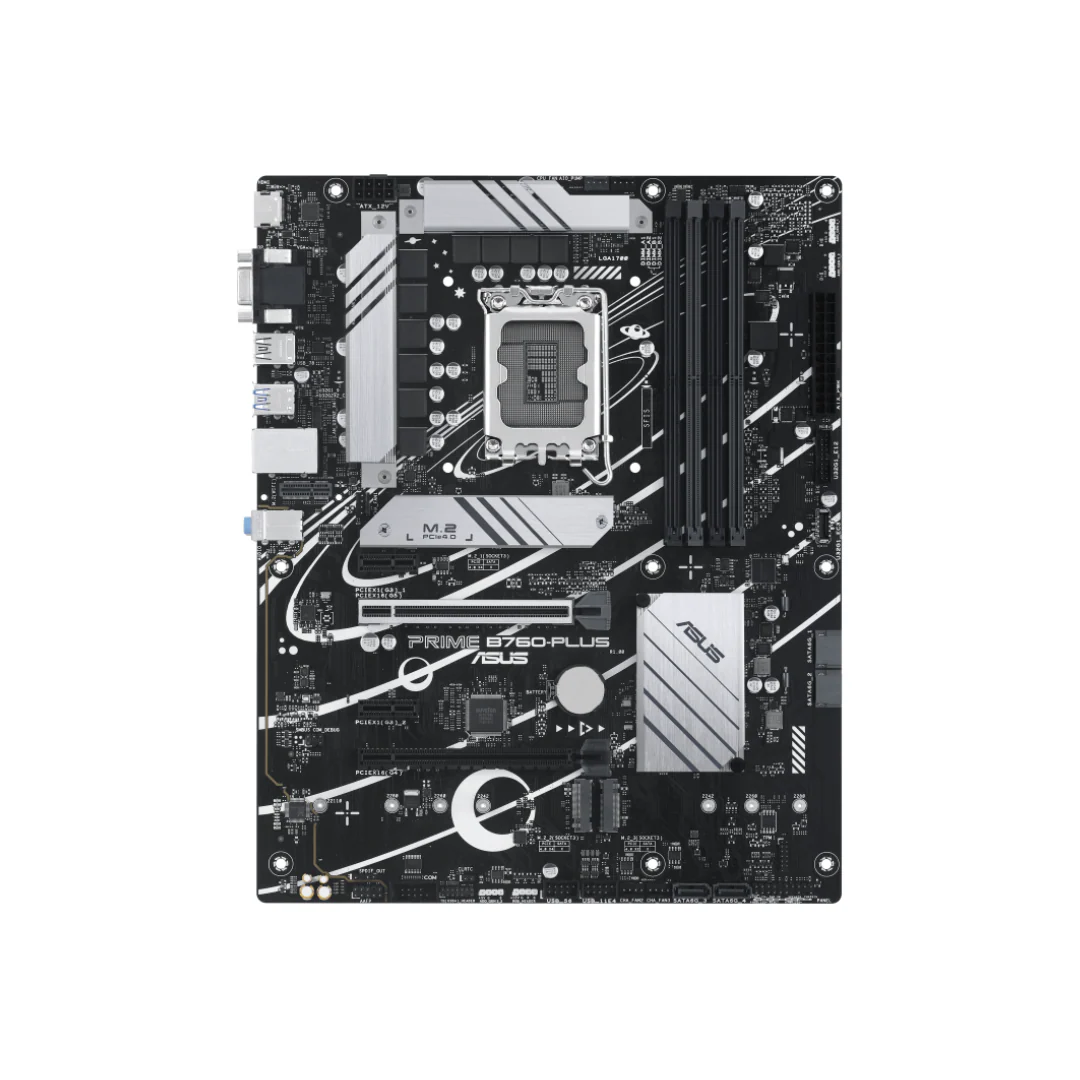

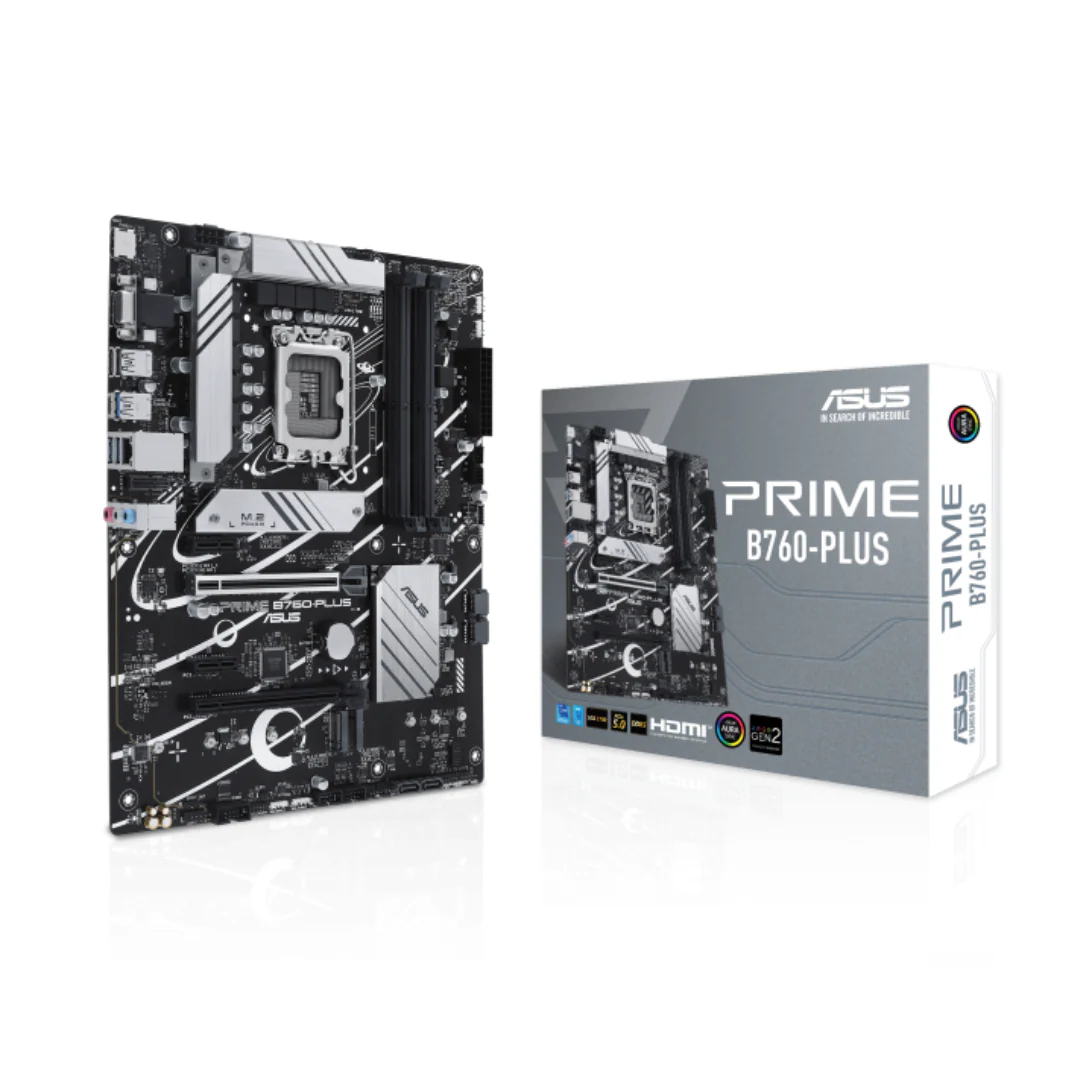

ASUS PRIME B760-PLUS D5
IntelMotherboards

ASUS PRIME B760-PLUS D5

0.0 (0 reviews)
220,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel B760
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB
    • Max Speed (OC): Up to 7200+ MT/s (via overclocking, with ASUS AEMP II and OptiMem II)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design: ASUS DIGI+ VRM for stable power delivery.
  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU, for graphics card)
    • 1 x PCIe 4.0 x16 slot (from chipset, runs at x4 mode)
    • 2 x PCIe 3.0 x1 slots (from chipset)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots
      • 1 x M.2 slot (PCIe 4.0 x4 mode, from CPU)
      • 1 x M.2 slot (PCIe 4.0 x4 mode, from chipset)
      • 1 x M.2 slot (PCIe 4.0 x2 mode, from chipset)
      • Cooling: Features M.2 heatsinks for some slots.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10 for SATA drives (via Intel Rapid Storage Technology).
  • Networking:
    • Wired: Realtek 2.5Gb Ethernet with ASUS LANGuard
    • Wireless & Bluetooth: M.2 (Key E) slot for Wi-Fi module (module sold separately). Supports Thunderbolt™ (USB4®) header if an add-on card is used.

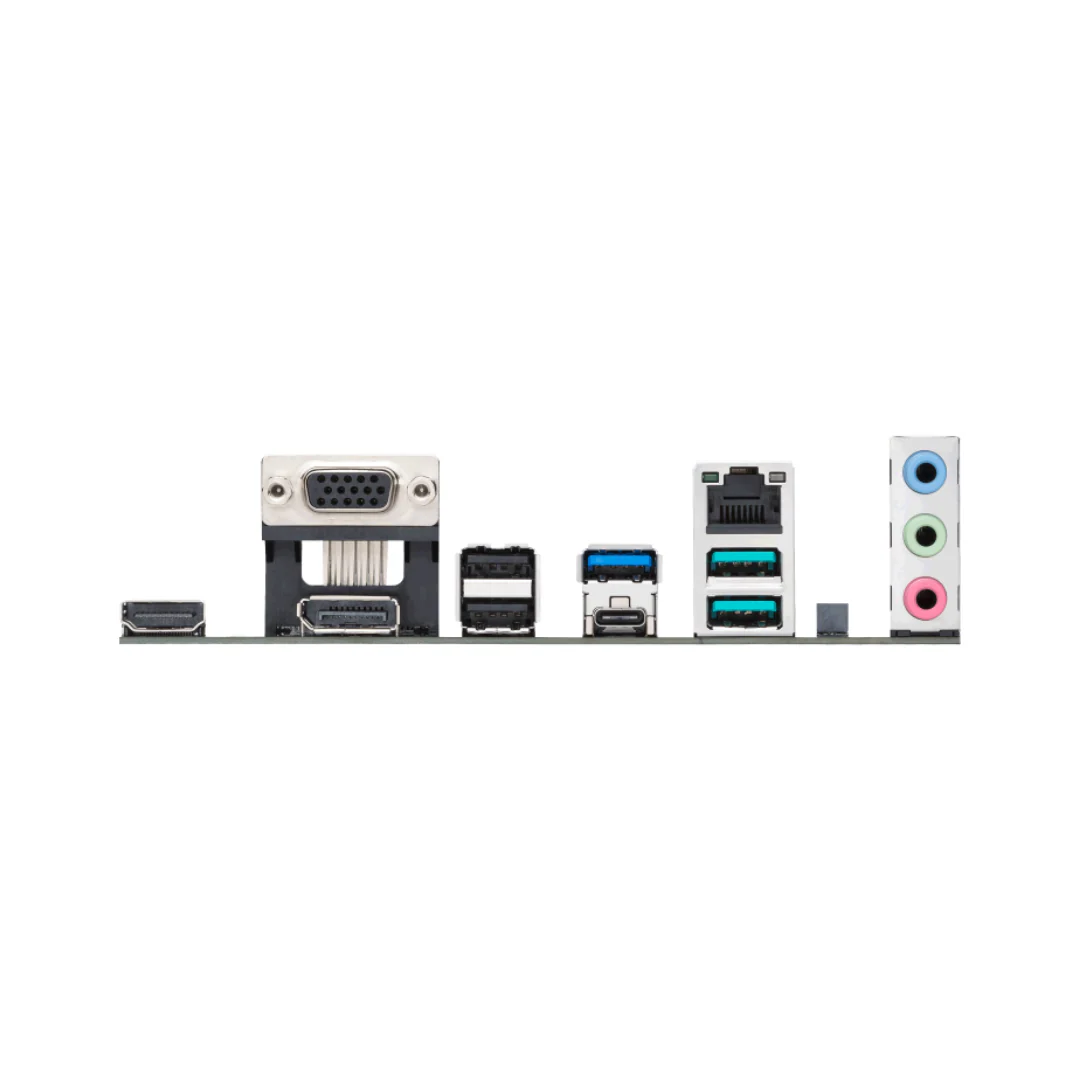

  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2x2 Type-C® port (20 Gbps)
    • 2 x USB 3.2 Gen 2 Type-A ports (10 Gbps)
    • 1 x USB 3.2 Gen 1 Type-A port (5 Gbps)
    • 2 x USB 2.0 Type-A ports
    • 1 x DisplayPort 1.4
    • 1 x HDMI™ 2.1
    • 1 x VGA port
    • 3 x Audio jacks
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen 1 Type-C® front-panel connector (5 Gbps)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional Type-A ports)
    • 2 x USB 2.0 headers (support 4 additional Type-A ports)
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Special Features:
    • ASUS 5X PROTECTION III for overall system safeguard.
    • Q-Design features: Q-LED Core (for troubleshooting boot issues), Q-DIMM.
    • Aura Sync RGB Header and Addressable Gen 2 Headers for lighting control.
    • BIOS FlashBack™ button (for convenient BIOS updates without a CPU).
    • Comprehensive cooling via VRM heatsinks and hybrid fan headers with Fan Xpert 2+.

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQA43L
220,000 IQD
