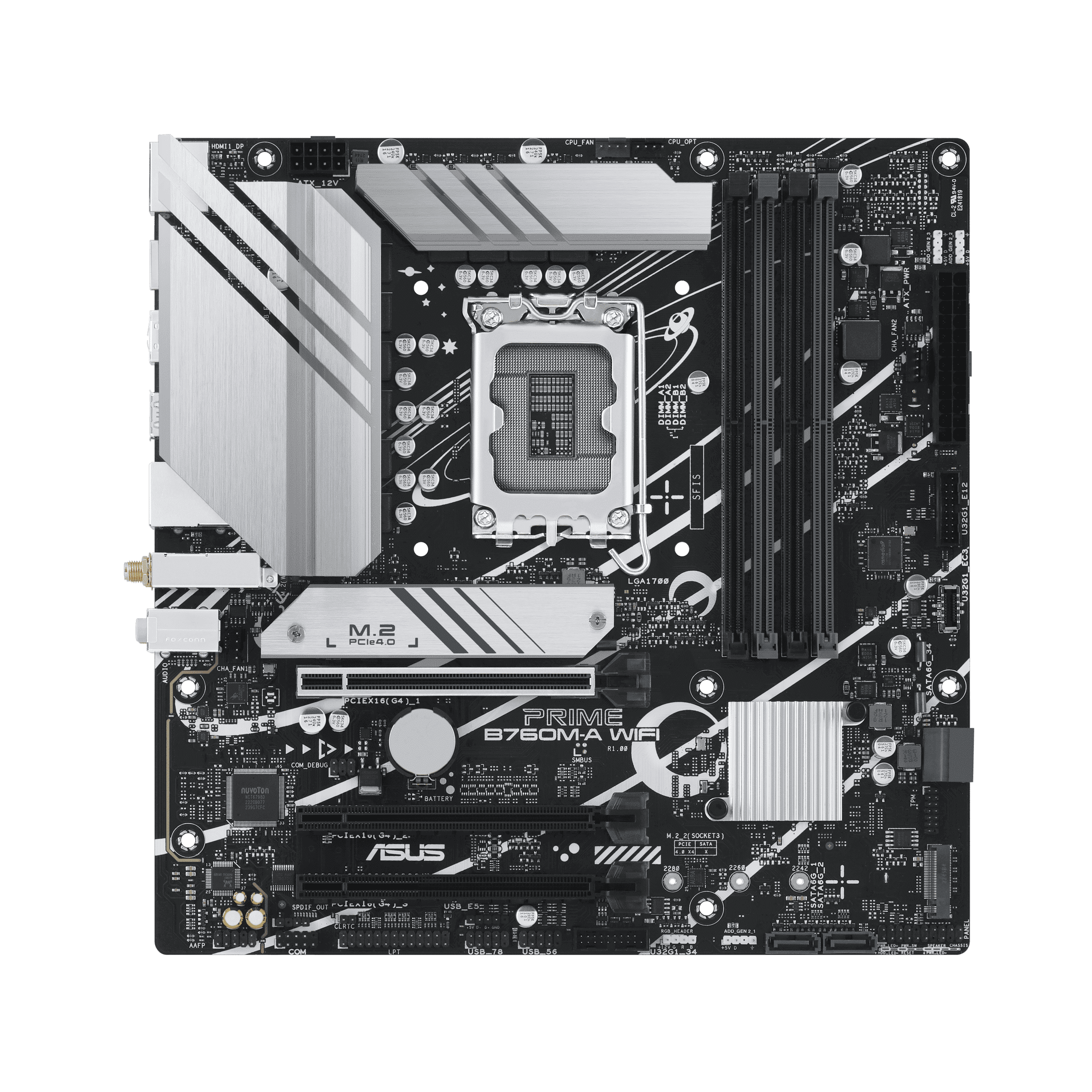

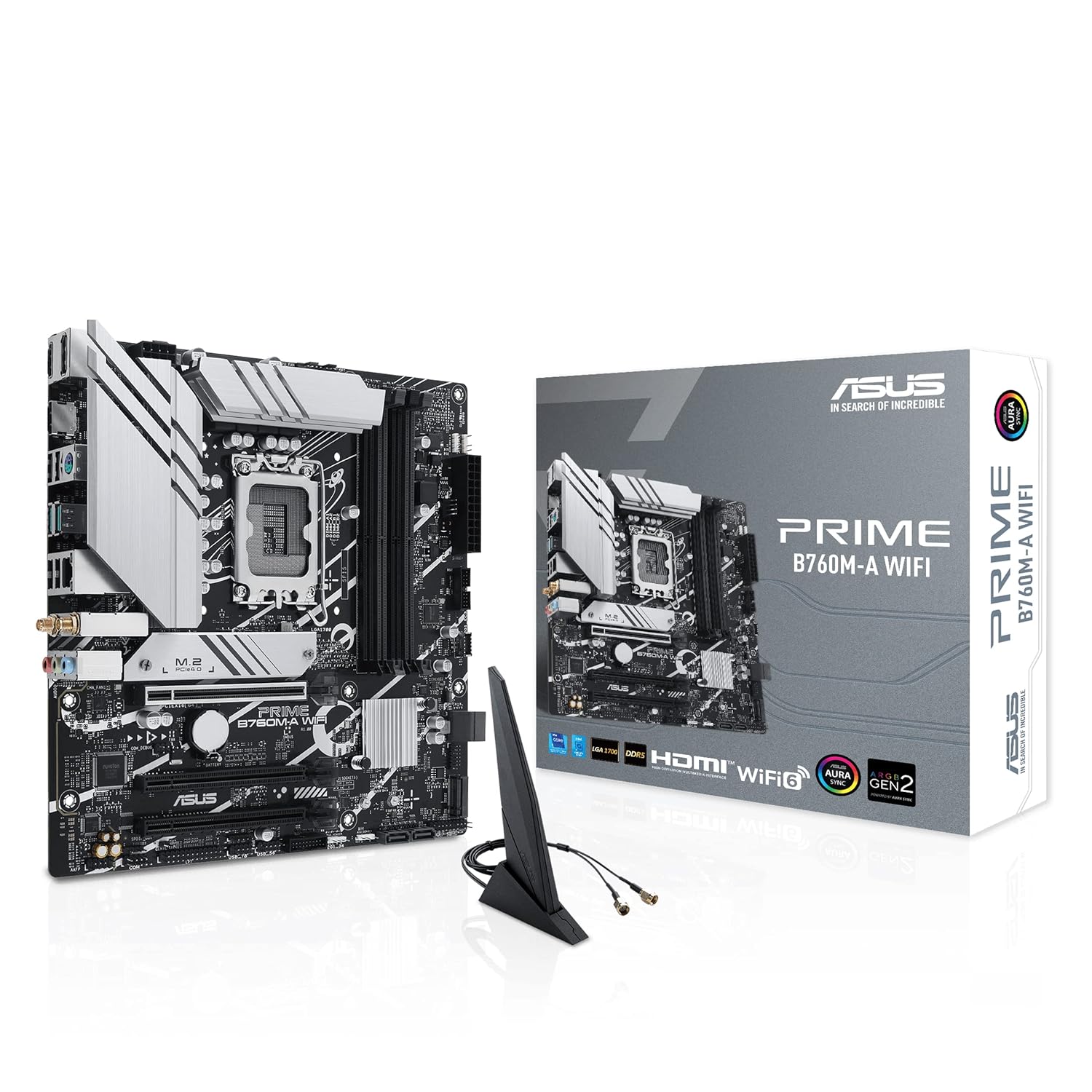

ASUS PRIME B760M-A WIFI

CPU Socket: LGA 1700
Chipset: Intel B760
Form Factor: Micro-ATX (mATX)
Memory:
- Slots: 4 x DIMM slots
- Type: DDR5
- Max Capacity: Up to 192GB
- Max Speed (OC): Up to 7200+ MT/s (via overclocking, with ASUS AEMP II and OptiMem II)
- Channel Architecture: Dual Channel
- ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
Power Design: Features ASUS DIGI+ VRM for stable power delivery.
Expansion Slots:
- 1 x PCIe 4.0 x16 slot (from CPU, for graphics card)
- 1 x PCIe 4.0 x16 slot (from chipset, runs at x4 mode)
- 1 x PCIe 4.0 x16 slot (from chipset, runs at x1 mode)
Storage:
- M.2 Slots: Total of 2 M.2 slots
  - 1 x M.2 slot (PCIe 4.0 x4 mode, from CPU)
  - 1 x M.2 slot (PCIe 4.0 x4 mode, from chipset)
  - Cooling: Features M.2 heatsinks for some slots.
- SATA: 4 x SATA 6Gb/s ports
- RAID Support: RAID 0, 1, 5, 10 for SATA drives (via Intel Rapid Storage Technology).
Networking:
- Wired: Realtek 2.5Gb Ethernet with ASUS LANGuard
- Wireless: Wi-Fi 6 (802.11ax, 2x2, 2.4/5GHz)
- Bluetooth: Bluetooth v5.2
USB Ports (Rear I/O):
- 2 x USB 3.2 Gen 2 Type-A ports (10 Gbps)
- 4 x USB 2.0 Type-A ports
- 1 x DisplayPort 1.4
- 2 x HDMI™ 2.1
- 1 x PS/2 keyboard/mouse combo port
- 3 x Audio jacks
USB Ports (Internal Headers):
- 1 x USB 3.2 Gen 1 Type-C® front-panel connector (5 Gbps)
- 2 x USB 3.2 Gen 1 headers (support 4 additional Type-A ports)
- 3 x USB 2.0 headers (support 5 additional Type-A ports)
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC. Features audio shielding and premium audio capacitors.
Special Features:
- ASUS 5X PROTECTION III for enhanced durability.
- Q-Design features: Q-LED Core (for troubleshooting boot issues), Q-DIMM.
- Aura Sync RGB Header and Addressable Gen 2 Headers for lighting control.
- Comprehensive cooling via VRM heatsinks and hybrid fan headers with Fan Xpert 2+.
