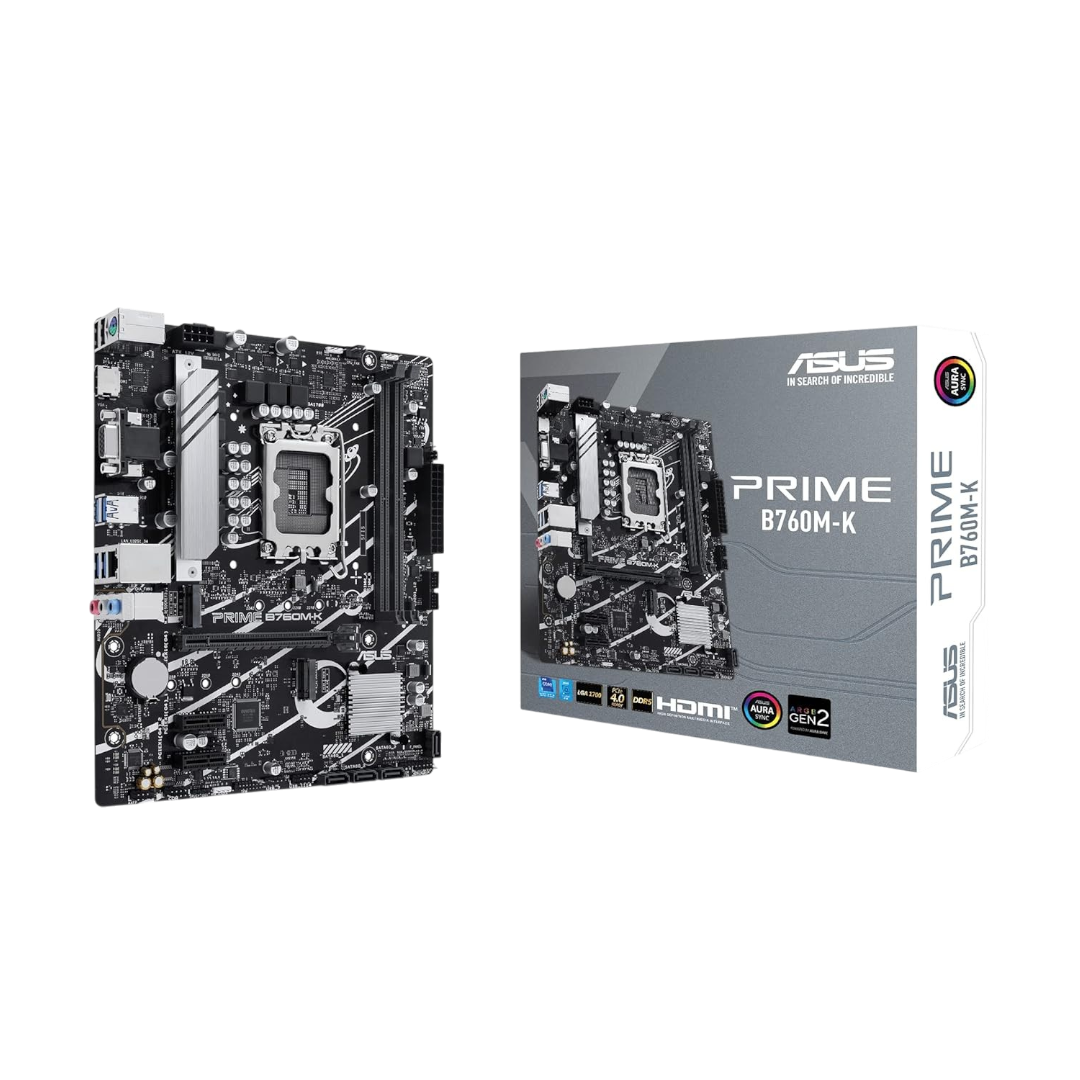

ASUS PRIME B760M-K D5

CPU Socket: LGA 1700
Chipset: Intel B760
Form Factor: Micro-ATX (mATX)
Memory:
- Slots: 2 x DIMM slots
- Type: DDR5
- Max Capacity: Up to 96GB
- Max Speed (OC): Up to 8000+ MT/s (via overclocking, with XMP support)
- Channel Architecture: Dual Channel
- ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
Power Design: Basic VRM design suitable for its target CPUs.
Expansion Slots:
- 1 x PCIe 4.0 x16 slot (from CPU, for graphics card)
- 2 x PCIe 4.0 x1 slots (from chipset)
Storage:
- M.2 Slots: Total of 2 M.2 slots
  - 2 x M.2 slots (PCIe 4.0 x4 mode, supporting 2242/2260/2280 form factors)
- SATA: 4 x SATA 6Gb/s ports
- RAID Support: RAID 0, 1, 5, 10 for SATA drives (via Intel Rapid Storage Technology).
Networking:
- Wired: Realtek 2.5Gb Ethernet
- Wireless & Bluetooth: Not included (features an M.2 (Key E) slot for an optional Wi-Fi module, sold separately).
Video Outputs:
- 1 x HDMI™ 2.1 (supports 4K@60Hz)
- 1 x VGA port
USB Ports (Rear I/O):
- 4 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
- 2 x USB 2.0 Type-A ports
- 1 x PS/2 keyboard/mouse combo port
USB Ports (Internal Headers):
- 1 x USB 3.2 Gen 1 header (supports 2 additional Type-A ports)
- 2 x USB 2.0 headers (support 3 additional Type-A ports)
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC. Features audio shielding and premium audio capacitors.
Special Features:
- ASUS 5X PROTECTION III for enhanced durability.
- Q-Design features: Q-LED Core (for basic troubleshooting), Q-DIMM.
- Aura Sync RGB Header and Addressable Gen 2 Headers for basic lighting control.
- BIOS FlashBack™ support (allowing BIOS updates without a CPU).
