ASRock B760M-HDV/M.2
IntelMotherboards

ASRock B760M-HDV/M.2

0.0 (0 reviews)
140,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel B760
  • Form Factor: Micro-ATX (mATX)
  • Memory:
    • Slots: 2 x DDR5 DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 96GB (some sources state 128GB)
    • Max Speed (OC): Up to 7200+ MT/s (via overclocking, with Intel XMP 3.0 support)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design: 7+1+1 Power Phase Design for stable power delivery.
  • Expansion Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU, for graphics card)
    • 2 x PCIe 3.0 x1 slots (from chipset)
    • 1 x M.2 Socket (Key E) for Wi-Fi/Bluetooth module (module sold separately)
  • Storage:
    • M.2 Slots: Total of 2 M.2 slots
      • 1 x Hyper M.2 Socket (M2_1, Key M), supports PCIe Gen4x4 (64 Gb/s) mode
      • 1 x Ultra M.2 Socket (M2_2, Key M), supports PCIe Gen3x4 (32 Gb/s) modes
    • SATA: 4 x SATA3 6.0 Gb/s connectors
    • RAID Support: RAID 0, 1, 5, 10 for SATA storage devices (via Intel Volume Management Device - VMD)
  • Networking:
    • Wired: Dragon RTL8125BG 2.5 Gigabit LAN (2.5GbE) with Dragon 2.5G LAN Software for bandwidth control.
    • Wireless & Bluetooth: Not integrated, but supports an optional Wi-Fi/BT PCIe module via the M.2 (Key E) slot.
  • Video Outputs (requires CPU with integrated graphics):
    • 1 x HDMI 2.1 (supports up to 4K 60Hz)
    • 1 x DisplayPort 1.4 (supports up to 8K 60Hz / 5K 120Hz with DSC)
    • 1 x D-Sub (VGA) (supports up to Full HD 60Hz)

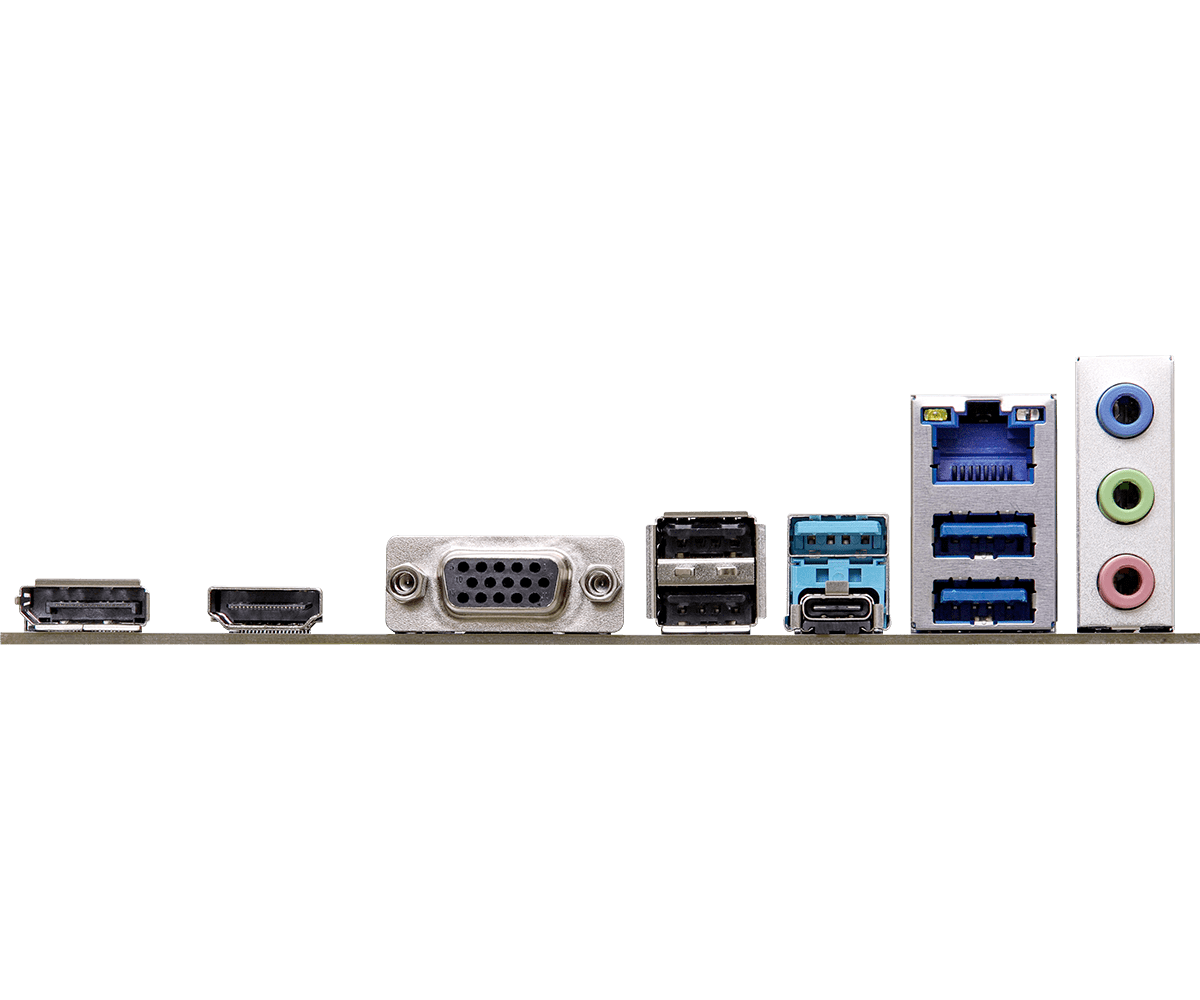

  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen1 Type-C port (5 Gbps)
    • 3 x USB 3.2 Gen1 Type-A ports (5 Gbps)
    • 2 x USB 2.0 Type-A ports
    • 1 x PS/2 keyboard/mouse combo port
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen1 header (supports 2 additional Type-A ports)
    • 2 x USB 2.0 headers (support 4 additional Type-A ports)
  • Audio: Realtek ALC897 7.1 CH HD Audio Codec.
  • Special Features:
    • ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology for improved signal integrity.
    • ASRock Auto Driver Installer for simplified setup.
    • ASRock Polychrome SYNC for RGB lighting control (with RGB LED and Addressable LED headers).

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQAGFY
140,000 IQD
