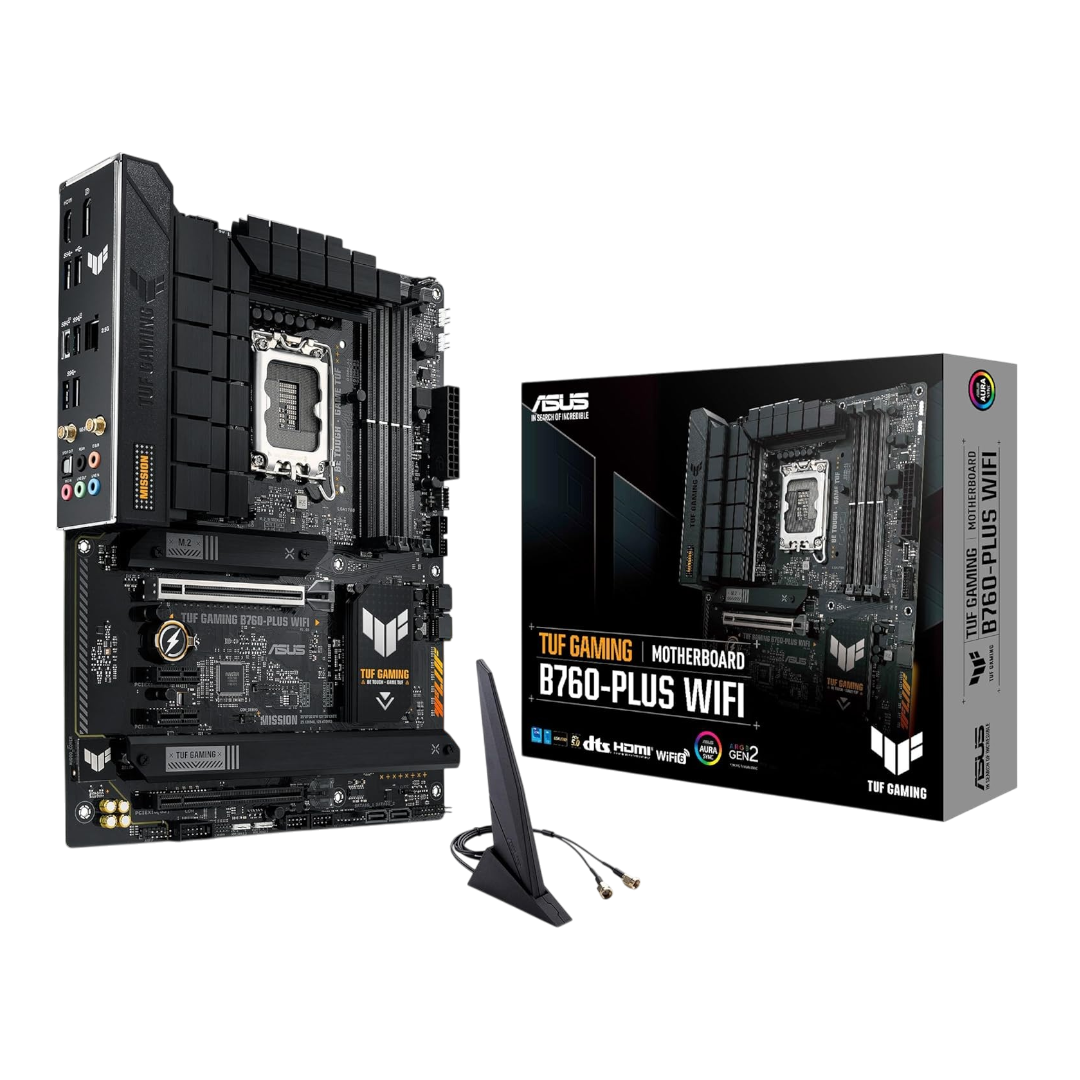

ASUS TUF GAMING B760-PLUS WIFI D5
IntelMotherboards

ASUS TUF GAMING B760-PLUS WIFI D5

0.0 (0 reviews)
275,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel B760
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB
    • Max Speed (OC): Up to 7200+ MT/s (via overclocking, with Intel XMP and ASUS OptiMem II)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)

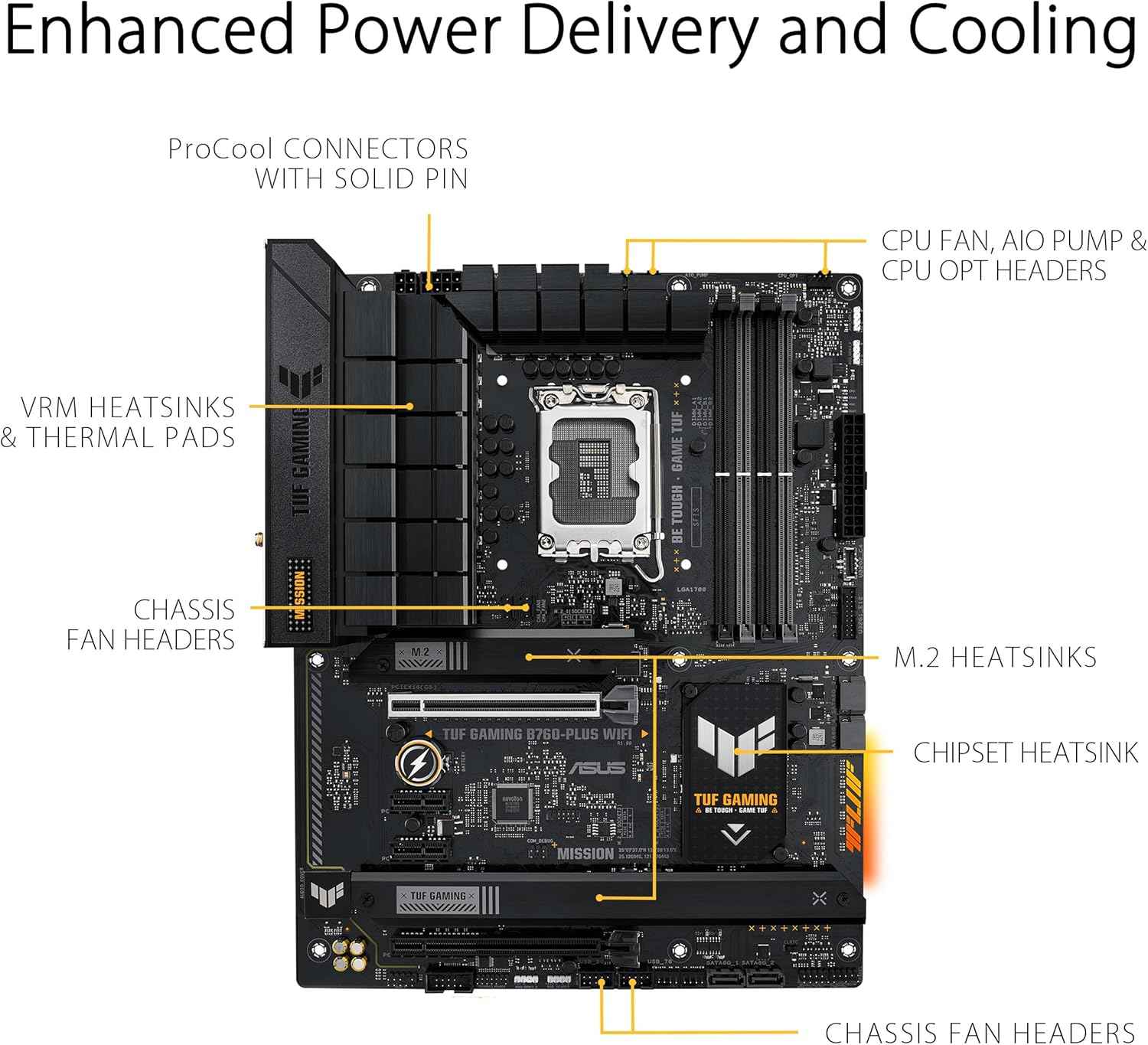

  • Power Design: 12+1+1 DrMOS power stages (VCORE rated for 50A, GT for 60A) for stable power delivery to the CPU. Features a 6-layer PCB and Digi+ VRM.

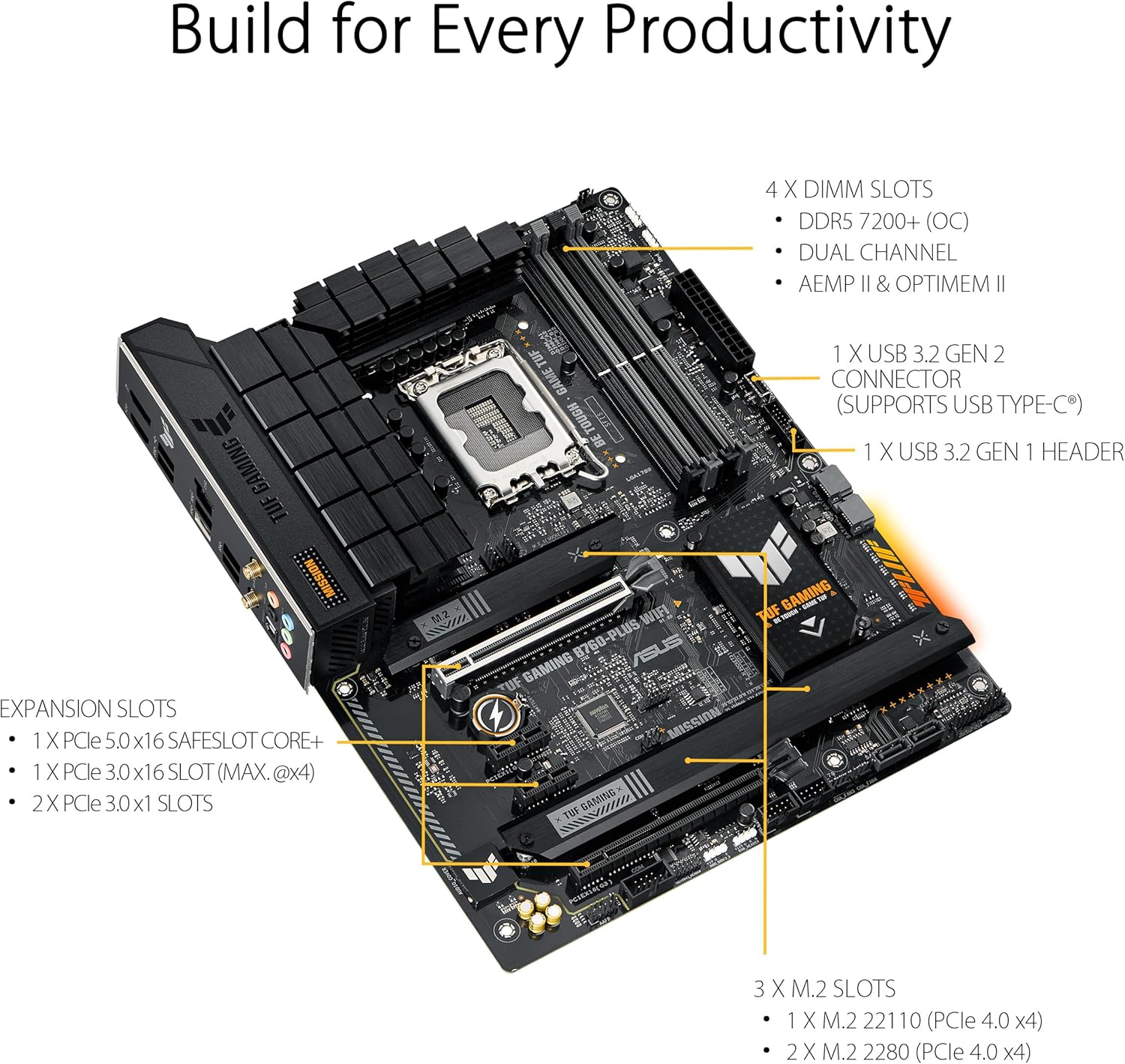

  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU, for graphics card)
    • 1 x PCIe 3.0 x16 slot (from chipset, runs at x4 mode)
    • 2 x PCIe 3.0 x1 slots (from chipset)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots
      • 1 x M.2 slot (PCIe 4.0 x4 mode, from CPU)
      • 2 x M.2 slots (PCIe 4.0 x4 mode, from chipset)
      • Cooling: Features enlarged M.2 heatsinks.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10 for SATA (via Intel Rapid Storage Technology).
  • Networking:
    • Wired: Realtek 2.5Gb Ethernet with TUF LANGuard
    • Wireless: Wi-Fi 6 (802.11ax, 2x2)
    • Bluetooth: Bluetooth® v5.2
  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2x2 Type-C® port (20 Gbps)
    • 1 x USB 3.2 Gen 2 Type-A port (10 Gbps)
    • 3 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
    • 1 x USB 2.0 Type-A port
    • 1 x DisplayPort 1.4
    • 1 x HDMI™ 2.1
    • 5 x Audio jacks, 1 x Optical S/PDIF out port
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen 2 Type-C® front-panel connector (10 Gbps)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional ports)
    • 2 x USB 2.0 headers (support 4 additional ports)

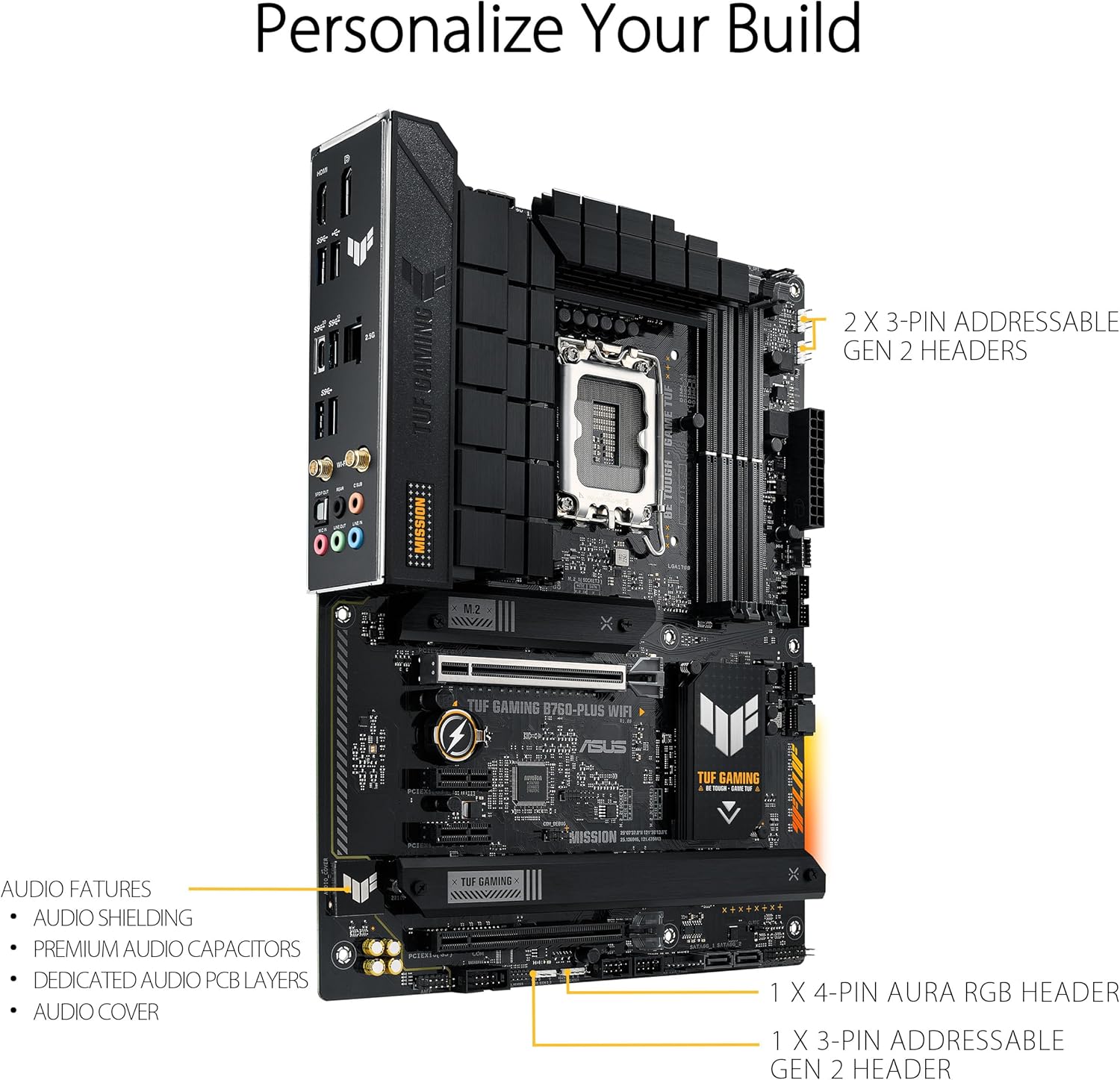

  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC. Features Audio Shielding, dedicated PCB layers, and premium audio capacitors.
  • Special Features:
    • ASUS TUF Protection (DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, SafeSlot Core+, Stainless-Steel Back I/O).
    • Q-Design features: M.2 Q-Latch, Q-LED (for troubleshooting).
    • Aura Sync RGB Header and Addressable Gen 2 Headers.
    • Two-Way AI Noise Cancellation.
