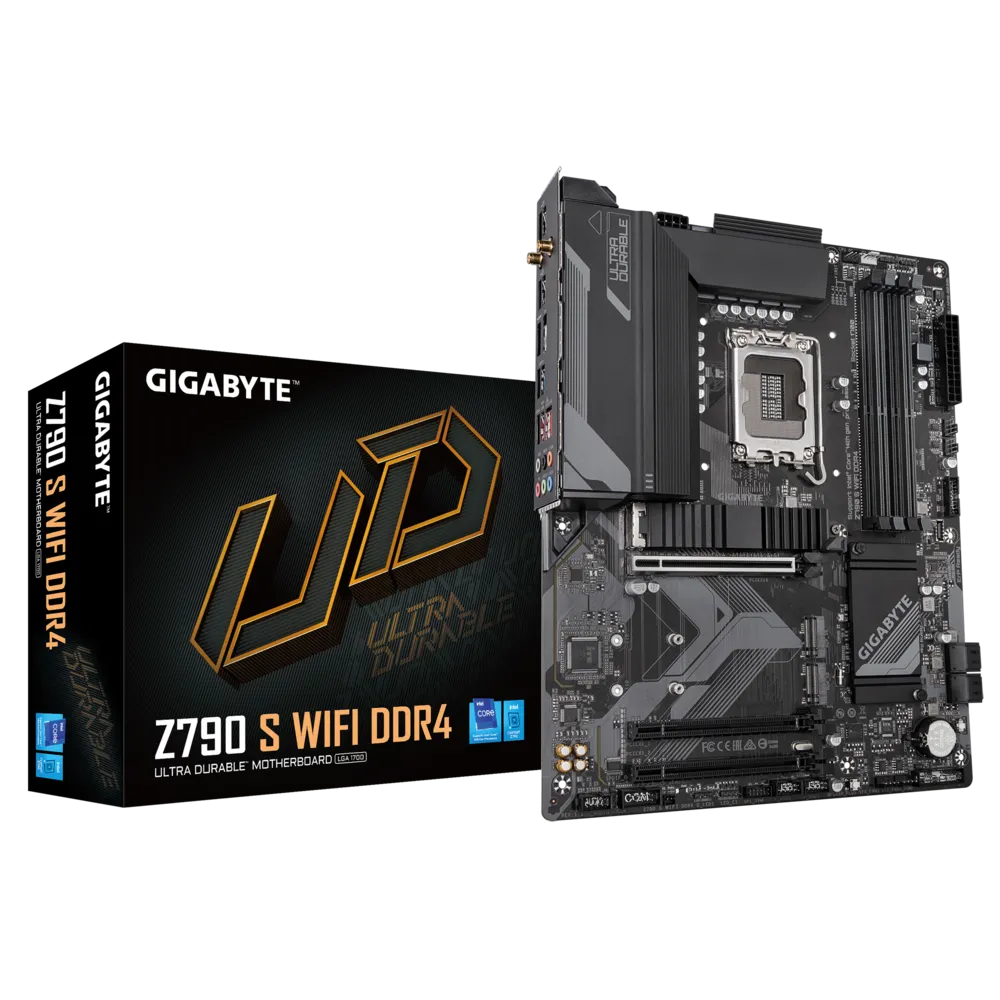

Gigabyte Z790 S WIFI DDR4
IntelMotherboards

Gigabyte Z790 S WIFI DDR4

0.0 (0 reviews)
235,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel Z790
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DDR4 DIMM sockets
    • Type: DDR4
    • Max Capacity: Up to 128 GB
    • Max Speed (OC): Up to 5333 MT/s (via overclocking, with XMP support)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR4 memory (supports ECC Un-buffered DIMM 1Rx8/2Rx8 modules operating in non-ECC mode)
  • Power Design: Hybrid 8+1+1 Phases Digital VRM Solution (with 60A DrMOS per phase) for stable power delivery. Features an 8-layer PCB.
  • Expansion Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU, for graphics card, with EZ-Latch for quick release)
    • 2 x PCIe 3.0 x16 slots (from chipset, running at x1 mode)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots (PCIe 4.0 x4/x2 SSD support)
      • 1 x M.2 slot directly from CPU
      • 2 x M.2 slots from chipset
      • Cooling: Features M.2 Thermal Guard (heatsinks) for M.2 SSDs.
    • SATA: 4 x SATA 6Gb/s connectors
    • RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for NVMe SSD and SATA storage devices.
  • Networking:
    • Wired: Realtek® 2.5GbE LAN (2.5 Gbps)
    • Wireless: Intel® Wi-Fi 802.11ac (Dual-Band 2.4/5 GHz, supports 11ac 160MHz standard up to 1.73Gbps). Note: Some revised versions may feature Wi-Fi 6E (802.11ax).
    • Bluetooth: Bluetooth® 5.1 (or Bluetooth® 5.3 on some later revisions with Wi-Fi 6E).
  • Video Outputs (requires CPU with integrated graphics):
    • 1 x DisplayPort 1.2 (supports up to 4096x2304@60Hz)
    • 1 x HDMI 2.1 (supports up to 4096x2160@60Hz, TMDS compatible)
  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2 Type-A port (red, 10 Gbps)
    • 2 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
    • 5 x USB 2.0/1.1 Type-A ports
  • USB Ports (Internal Headers):
    • 1 x USB Type-C® header with USB 3.2 Gen 2 support (10 Gbps)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional Type-A ports)
    • 2 x USB 2.0/1.1 headers (support 4 additional Type-A ports)
  • Audio: Realtek® Audio CODEC with High Definition Audio (7.1-channel support, S/PDIF Out). Features high-end audio capacitors and Audio Noise Guard.
  • Special Features:
    • Advanced Thermal Design (fully covered MOSFET heatsinks, thermal conductivity pads).
    • Smart Fan 6 (multiple temperature sensors, hybrid fan headers with FAN STOP).
    • Q-Flash Plus (update BIOS without installing CPU, memory, or graphics card).
    • Multi-key (customizable function for Reset, RGB Switch, Direct to BIOS, Safe Mode).
    • GIGABYTE Control Center (GCC) for software management.
    • RGB FUSION (2 x Addressable LED Headers, 2 x RGB LED Headers).
    • PerfDrive technology for optimized performance profiles.

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQAM8V
235,000 IQD
