ASUS PRIME Z790-P WIFI
IntelMotherboards

ASUS PRIME Z790-P WIFI

0.0 (0 reviews)
310,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel Z790
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB (some sources state 128GB, but newer BIOS updates often increase this)
    • Max Speed (OC): Up to 7200+ MT/s (via overclocking, with Intel XMP and ASUS OptiMem II / AEMP II)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)

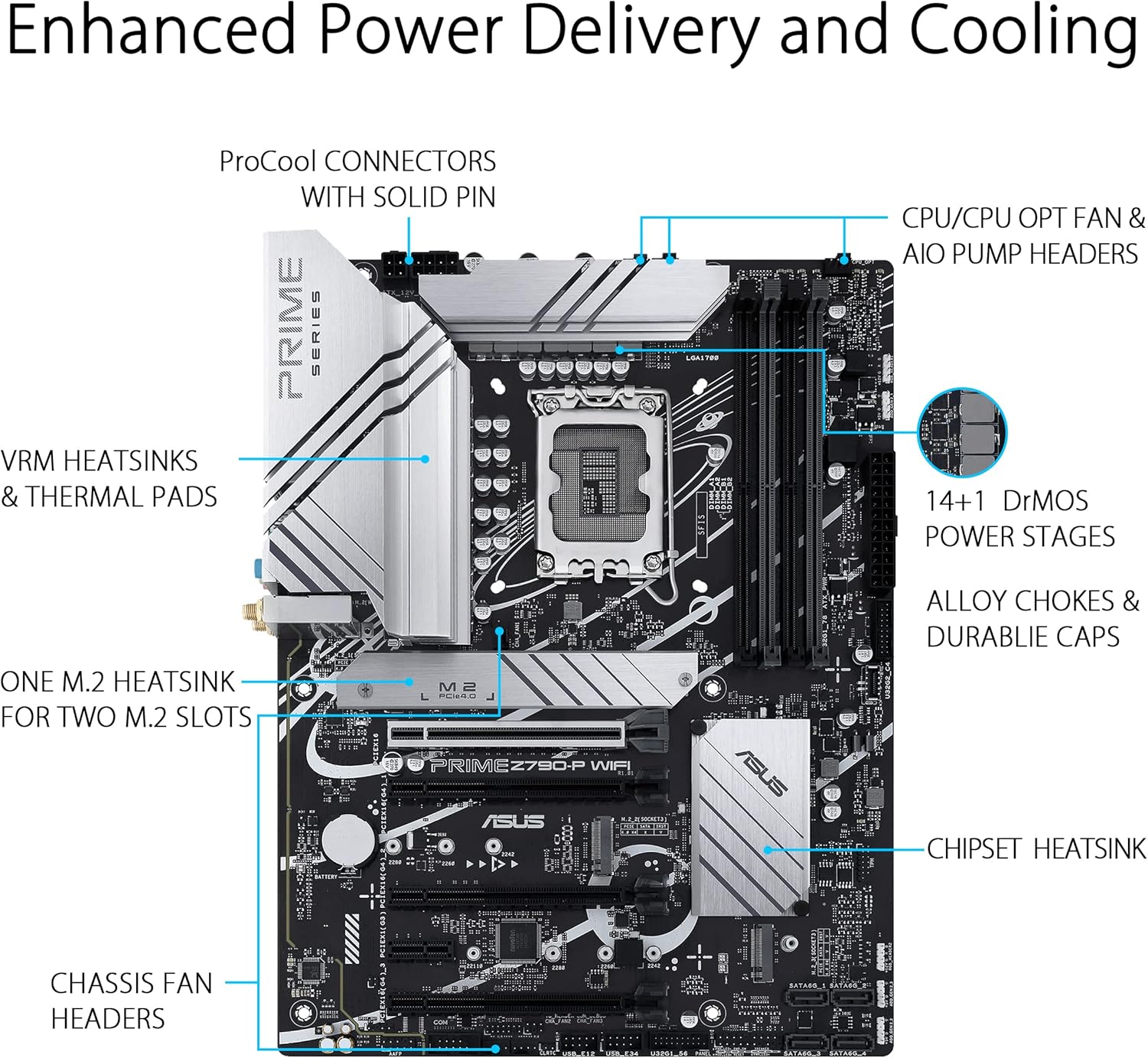

  • Power Design: 14+1+1 DrMOS power stages (VCORE rated for 50A, GT for 60A) for strong and stable power delivery. Features ProCool sockets, alloy chokes, and durable capacitors.

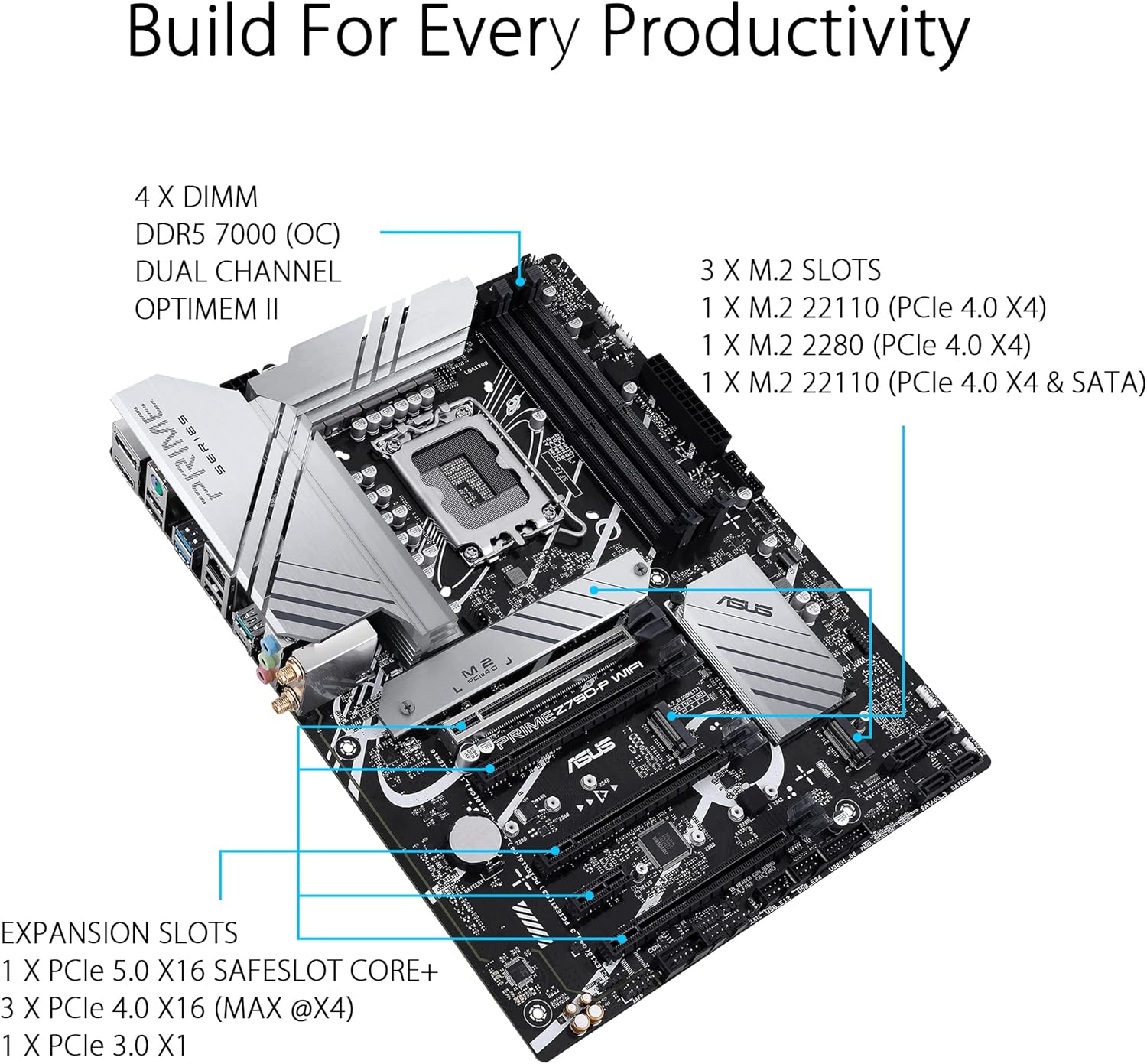

  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU, with SafeSlot Core+ reinforcement, for graphics card)
    • 3 x PCIe 4.0 x16 slots (from chipset, support x4 mode)
    • 1 x PCIe 3.0 x1 slot (from chipset)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots
      • 1 x M.2 slot (PCIe 4.0 x4 mode, from CPU, supports 2242/2260/2280/22110)
      • 2 x M.2 slots (PCIe 4.0 x4 mode, from chipset; one supports 2242/2260/2280, another supports 2242/2260/2280/22110 & SATA mode)
      • Cooling: Features enlarged VRM heatsinks and integrated M.2 heatsinks.
    • SATA: 4 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10 for NVMe SSD and SATA storage devices (via Intel Rapid Storage Technology).
  • Networking:
    • Wired: Realtek 2.5Gb Ethernet with ASUS LANGuard
    • Wireless: Wi-Fi 6 (802.11ax, 2x2, supports 2.4/5GHz frequency bands)
    • Bluetooth: Bluetooth® v5.2
  • Video Outputs (requires CPU with integrated graphics):
    • 1 x DisplayPort 1.4 (supports up to 4K@60Hz)
    • 1 x HDMI™ 2.1 (supports up to 4K@60Hz)
  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2x2 Type-C® port (20 Gbps)
    • 1 x USB 3.2 Gen 2 Type-A port (10 Gbps)
    • 2 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
    • 4 x USB 2.0 Type-A ports
    • 1 x PS/2 Keyboard/Mouse combo port
    • 3 x Audio jacks
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen 2 Type-C® front-panel connector (10 Gbps)
    • 2 x USB 3.2 Gen 1 headers (support 4 additional Type-A ports)
    • 2 x USB 2.0 headers (support 4 additional Type-A ports)
    • 1 x Thunderbolt™ (USB4®) Header (requires optional add-on card)
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC. Features Audio Shielding, premium audio capacitors, and dedicated audio PCB layers.
  • Special Features:
    • ASUS 5X PROTECTION III: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot.
    • Intelligent Control: AI Cooling II, Fan Xpert 4.
    • Q-Design Features: Q-LED Core (for troubleshooting boot issues), Q-DIMM, M.2 Q-Latch.
    • Aura Sync: Multiple Addressable Gen 2 RGB Headers and Aura RGB headers for lighting customization.
    • BIOS FlashBack™ button for convenient BIOS updates.

المواصفات

العلامة التجاريةIntel
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQAOOB
