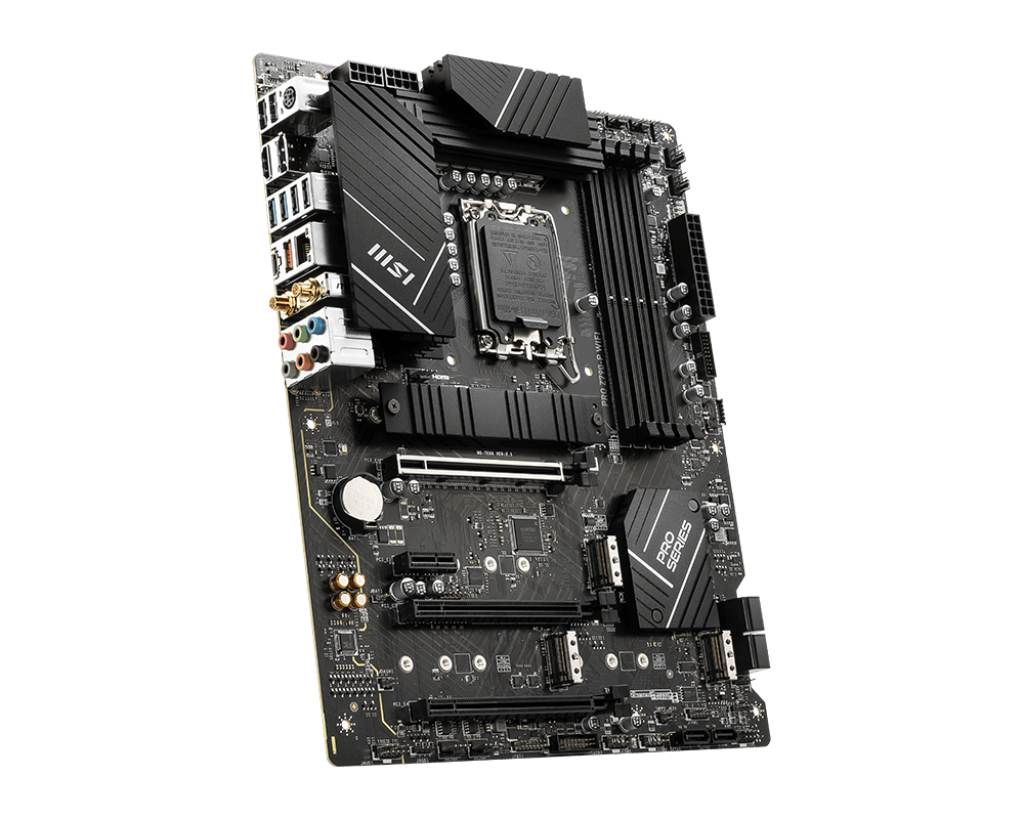

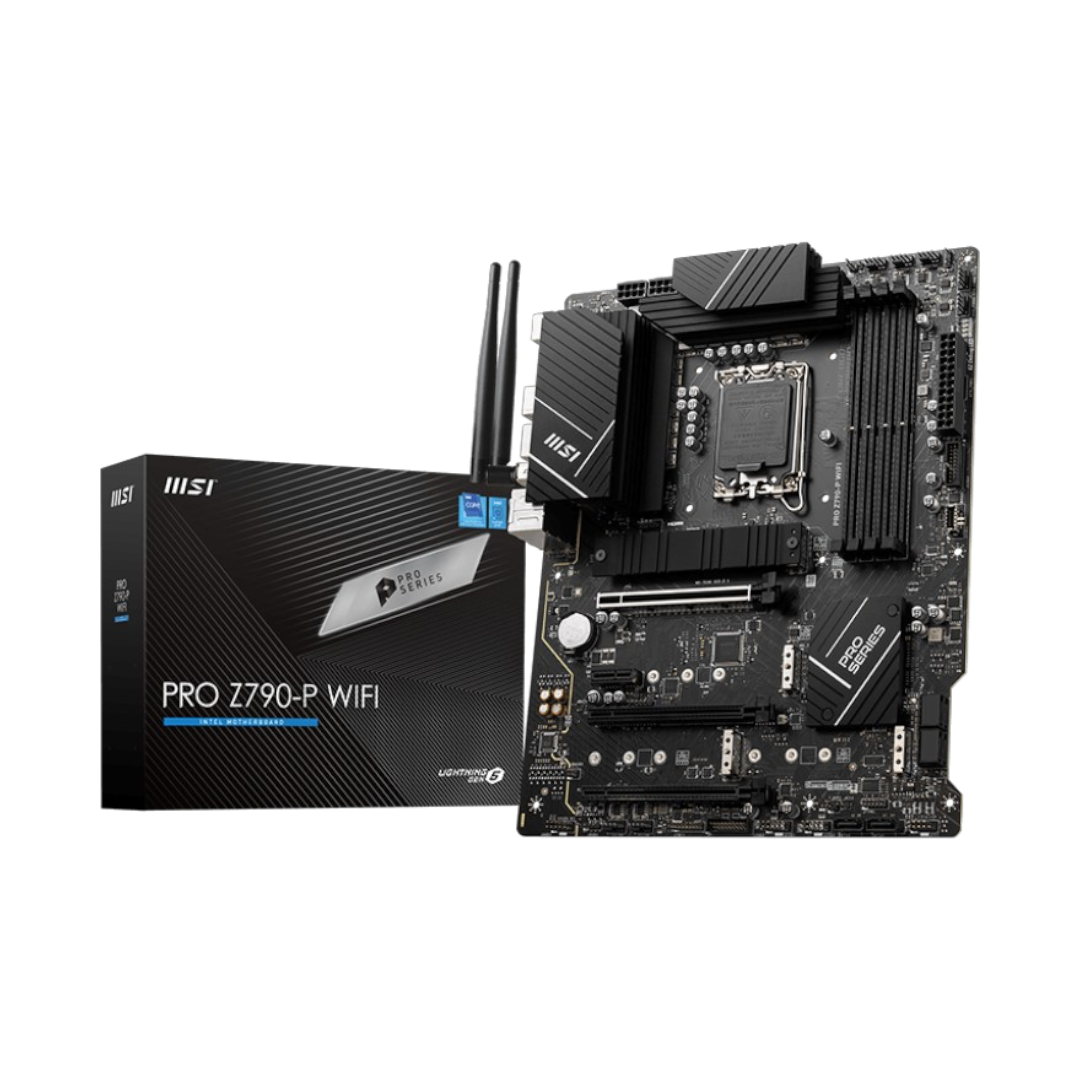

MSI PRO Z790-P DDR5 WIFI
IntelMotherboards

MSI PRO Z790-P DDR5 WIFI

0.0 (0 reviews)
310,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: LGA 1700
  • Chipset: Intel Z790
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DDR5 DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB (some listings indicate up to 256GB with newer BIOS/memory configurations)
    • Max Speed (OC): Up to 7000+ MT/s (via overclocking, with Intel XMP 3.0 and MSI Memory Boost)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered DDR5 memory (supports On-Die ECC function)
  • Power Design: 14+1+1 Duet Rail Power System (DRPS) with 55A DrMOS per phase for the VCORE, ensuring stable power delivery. Features an 8-layer PCB with 2oz thickened copper.
  • Expansion Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU, with Steel Armor reinforcement)
    • 1 x PCIe 4.0 x16 slot (from chipset, runs at x4 mode)
    • 2 x PCIe 3.0 x1 slots (from chipset)
  • Storage:
    • M.2 Slots: Total of 4 M.2 slots
      • 1 x M.2 slot (PCIe 4.0 x4, from CPU, supports 2242/2260/2280/22110)
      • 3 x M.2 slots (PCIe 4.0 x4, from chipset; two of which also support SATA mode)
      • Cooling: Features M.2 Shield Frozr (heatsinks) for all M.2 slots.
    • SATA: 6 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 5, 10 for both M.2 NVMe and SATA storage devices.
  • Networking:
    • Wired: Intel® 2.5Gbps LAN (2.5 Gigabit Ethernet)
    • Wireless: Intel® Wi-Fi 6E (802.11ax), supporting 2.4GHz/5GHz/6GHz bands with MU-MIMO
    • Bluetooth: Bluetooth® v5.2 (some later revisions or regional variants may feature v5.3)
  • Video Outputs (requires CPU with integrated graphics):
    • 1 x HDMI™ 2.1 (supports up to 4K@60Hz)
    • 1 x DisplayPort 1.4 (supports up to 4K@60Hz)
  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2x2 Type-C® port (20 Gbps)
    • 1 x USB 3.2 Gen 2 Type-A port (10 Gbps)
    • 2 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
    • 4 x USB 2.0 Type-A ports
    • 1 x PS/2 Combo Port (for keyboard/mouse)
    • Flash BIOS Button
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen 2 Type-C® front-panel connector (10 Gbps)
    • 2 x USB 3.2 Gen 1 headers (support 4 additional Type-A ports)
    • 2 x USB 2.0 headers (support 4 additional Type-A ports)
    • 1 x Thunderbolt™ (USB4®) header (for optional add-in card)
  • Audio: Realtek® ALC897 Codec with 7.1-Channel High Definition Audio. Features Audio Boost for enhanced sound quality.
  • Special Features:
    • Premium Thermal Solution: Extended Heatsink design, MOSFET thermal pads (7W/mK), additional choke thermal pads.
    • EZ Debug LED: Onboard LEDs for quick troubleshooting of CPU, DRAM, VGA, and Boot issues.
    • DIY Friendly: Pre-installed I/O Shield, EZ M.2 Clip, XL Clip for PCIe slot.
    • MSI Center: Software suite for system monitoring, tuning, and customization.
    • Core Boost: Optimized power design supporting multi-core CPUs.
    • Mystic Light: RGB lighting headers (Addressable Gen2 and RGB headers) for lighting synchronization.
