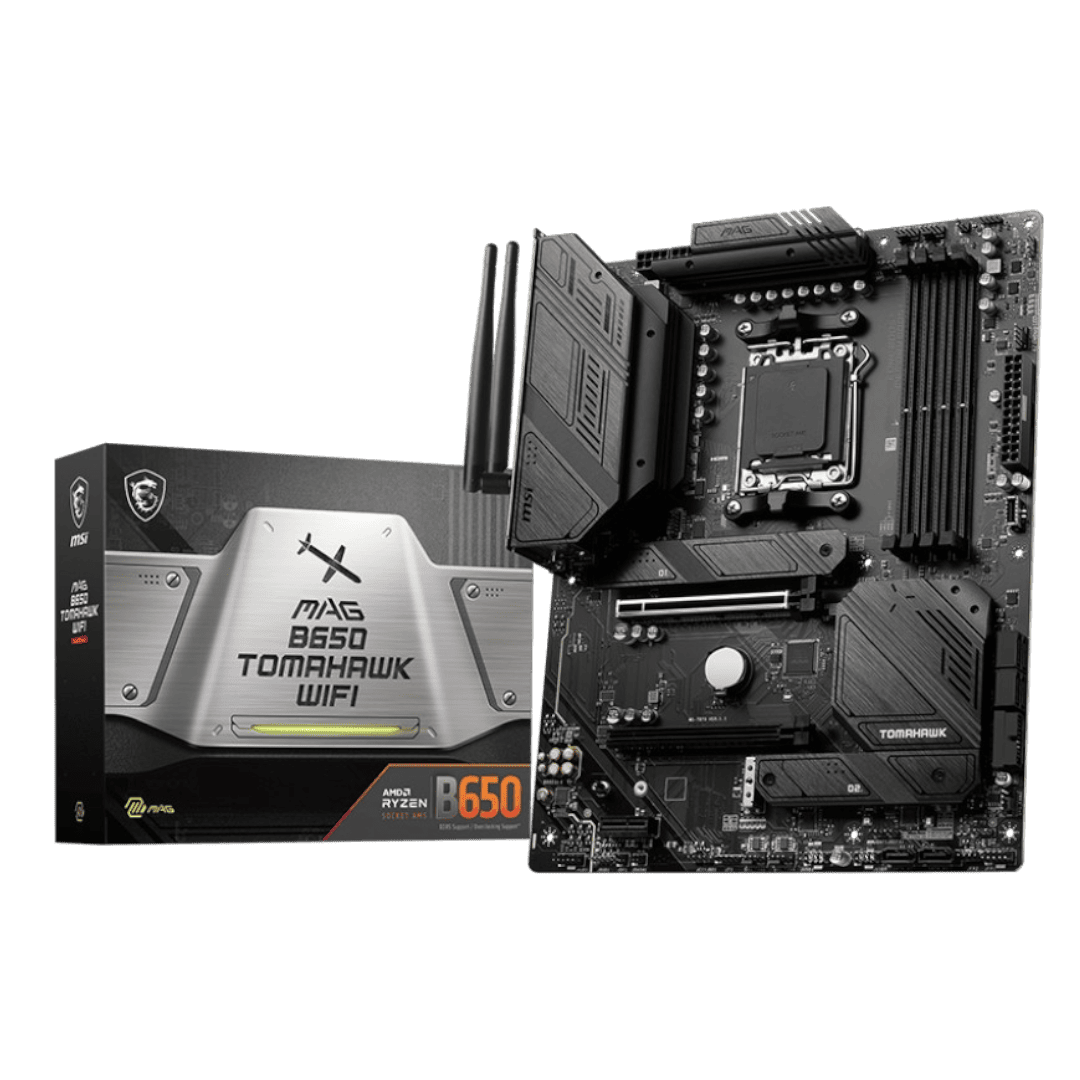

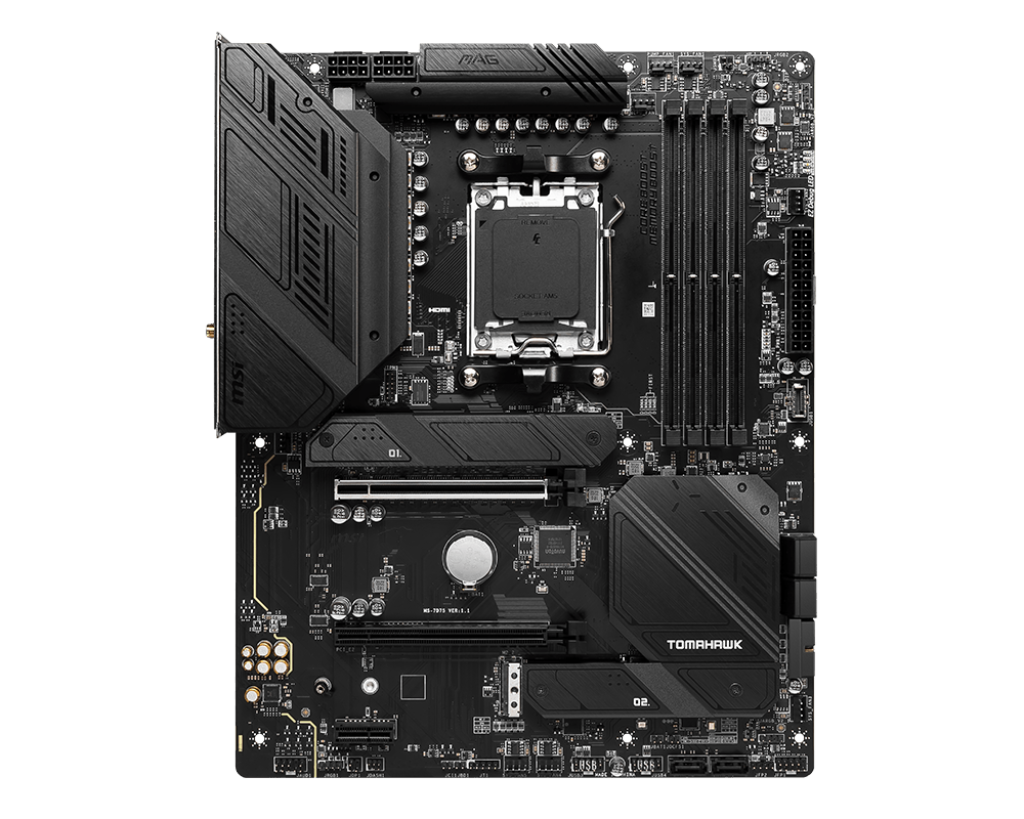

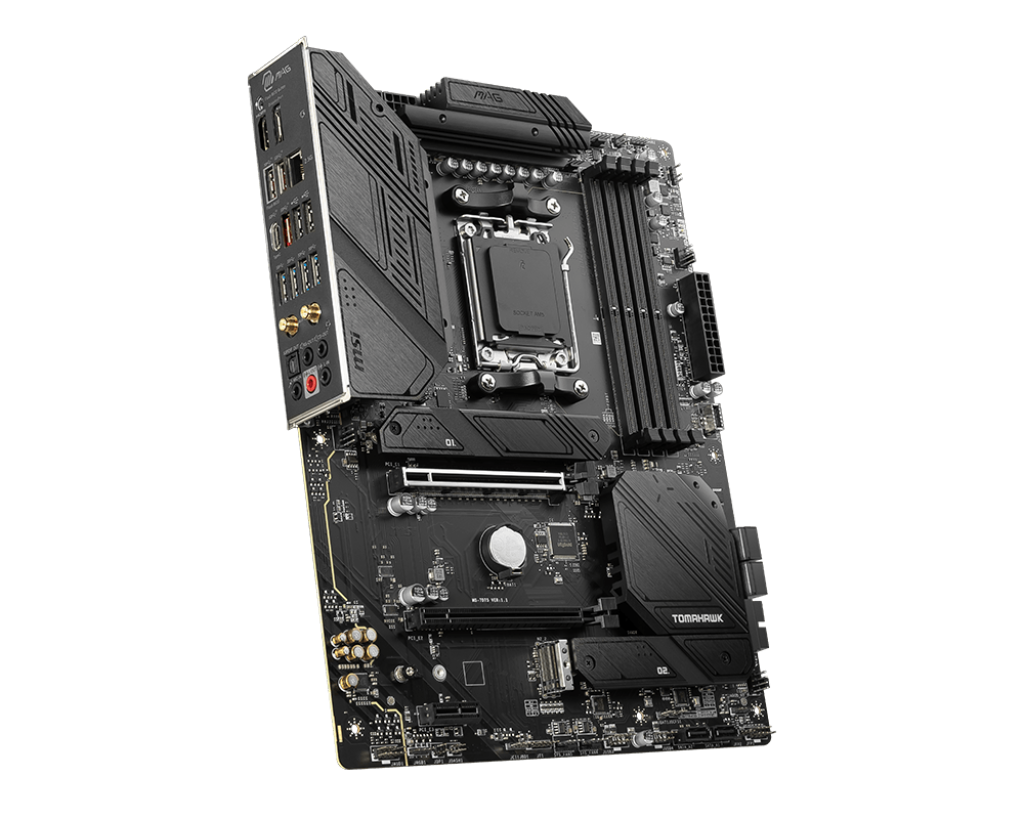

MSI MAG B650 TOMAHAWK WIFI
AMDMotherboards

MSI MAG B650 TOMAHAWK WIFI

0.0 (0 reviews)
310,000 IQD
1

Fast shipping in 24h

Order before 2pm for same day dispatch

Secure payment

We use industry standard encryption

1-year warranty

Full manufacturer warranty included

وصف المنتج

  • CPU Socket: AM5
  • Chipset: AMD B650
  • Form Factor: ATX
  • Memory:
    • Slots: 4 x DDR5 DIMM slots
    • Type: DDR5
    • Max Capacity: Up to 192GB (some sources state up to 256GB with newer BIOS/memory configurations)
    • Max Speed (OC): Up to 7600+ MT/s (via overclocking, with AMD EXPO and MSI Memory Boost)
    • Channel Architecture: Dual Channel
    • ECC Support: Non-ECC, Un-buffered memory (supports ECC UDIMM memory in non-ECC mode)
  • Power Design: 14+2+1 Duet Rail Power System (DRPS) with 80A Smart Power Stage for VCORE, ensuring stable power delivery. Features an 8-layer PCB with 2oz thickened copper.
  • Expansion Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU, with Steel Armor reinforcement)
    • 1 x PCIe 4.0 x16 slot (from chipset, runs at x2 mode, shares bandwidth with M2_3)
    • 1 x PCIe 3.0 x1 slot (from chipset)
    • 1 x M.2 Socket (Key E) for Wi-Fi/Bluetooth module (module is pre-installed)
  • Storage:
    • M.2 Slots: Total of 3 M.2 slots
      • 2 x M.2 slots (PCIe 4.0 x4 mode, from CPU)
      • 1 x M.2 slot (PCIe 4.0 x4 mode, from chipset, shares bandwidth with PCIe 4.0 x16 slot operating at x2)
      • Cooling: Features M.2 Shield Frozr (heatsinks) for all M.2 slots.
    • SATA: 6 x SATA 6Gb/s ports
    • RAID Support: RAID 0, 1, 10 for SATA and RAID 0, 1 for M.2 NVMe storage devices.
  • Networking:
    • Wired: Realtek® RTL8125BG 2.5Gbps LAN (2.5 Gigabit Ethernet)
    • Wireless: AMD Wi-Fi 6E (802.11ax), supporting 2.4GHz, 5GHz, and 6GHz bands with MU-MIMO
    • Bluetooth: Bluetooth® v5.2 (some later revisions may feature v5.3)
  • Video Outputs (requires CPU with integrated graphics):
    • 1 x HDMI™ 2.1 (supports up to 4K@60Hz)
    • 1 x DisplayPort 1.4 (supports up to 8K@60Hz)

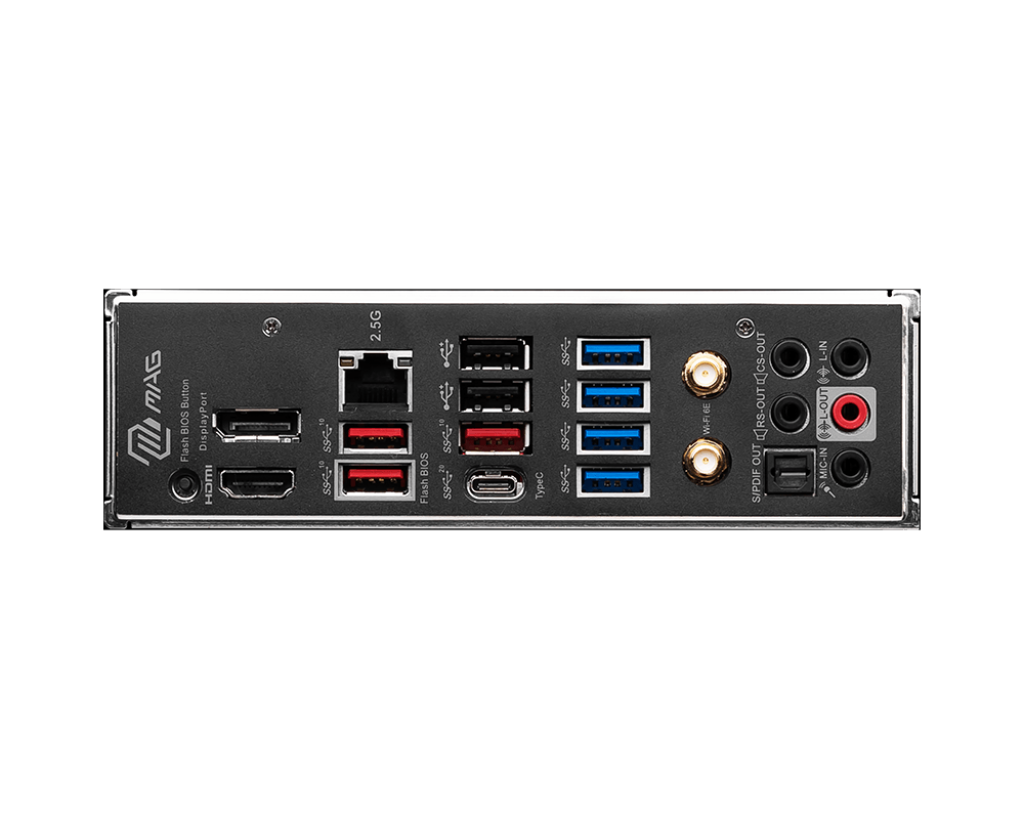

  • USB Ports (Rear I/O):
    • 1 x USB 3.2 Gen 2x2 Type-C® port (20 Gbps)
    • 3 x USB 3.2 Gen 2 Type-A ports (10 Gbps)
    • 4 x USB 3.2 Gen 1 Type-A ports (5 Gbps)
    • 2 x USB 2.0 Type-A ports
    • Flash BIOS Button
    • 2 x Wi-Fi Antenna connectors
    • 5 x Audio jacks, 1 x Optical S/PDIF Out connector
  • USB Ports (Internal Headers):
    • 1 x USB 3.2 Gen 2 Type-C® front-panel connector (10 Gbps)
    • 1 x USB 3.2 Gen 1 header (supports 2 additional Type-A ports)
    • 2 x USB 2.0 headers (support 4 additional Type-A ports)
  • Audio: Realtek® ALC4080 Codec with 7.1-Channel High Performance Audio. Features Audio Boost 5 for enhanced sound quality and supports S/PDIF output.
  • Special Features:
    • Extended Heatsink Design: Enlarged heatsinks for VRM and M.2 to ensure stable performance.
    • M.2 Shield Frozr: Dedicated heatsinks for M.2 SSDs to prevent thermal throttling.
    • EZ Debug LED: Onboard LEDs for quick troubleshooting of CPU, DRAM, VGA, and Boot issues.
    • DIY Friendly Design: Pre-installed I/O Shield, EZ M.2 Clip.
    • Core Boost: MSI's optimized power delivery system.
    • Mystic Light: RGB lighting headers (Addressable V2 and RGB headers) for lighting synchronization.

المواصفات

العلامة التجاريةAMD
الفئةMotherboards
متوفر في المخزونYes
رمز المنتجCMCQAVI8
310,000 IQD
