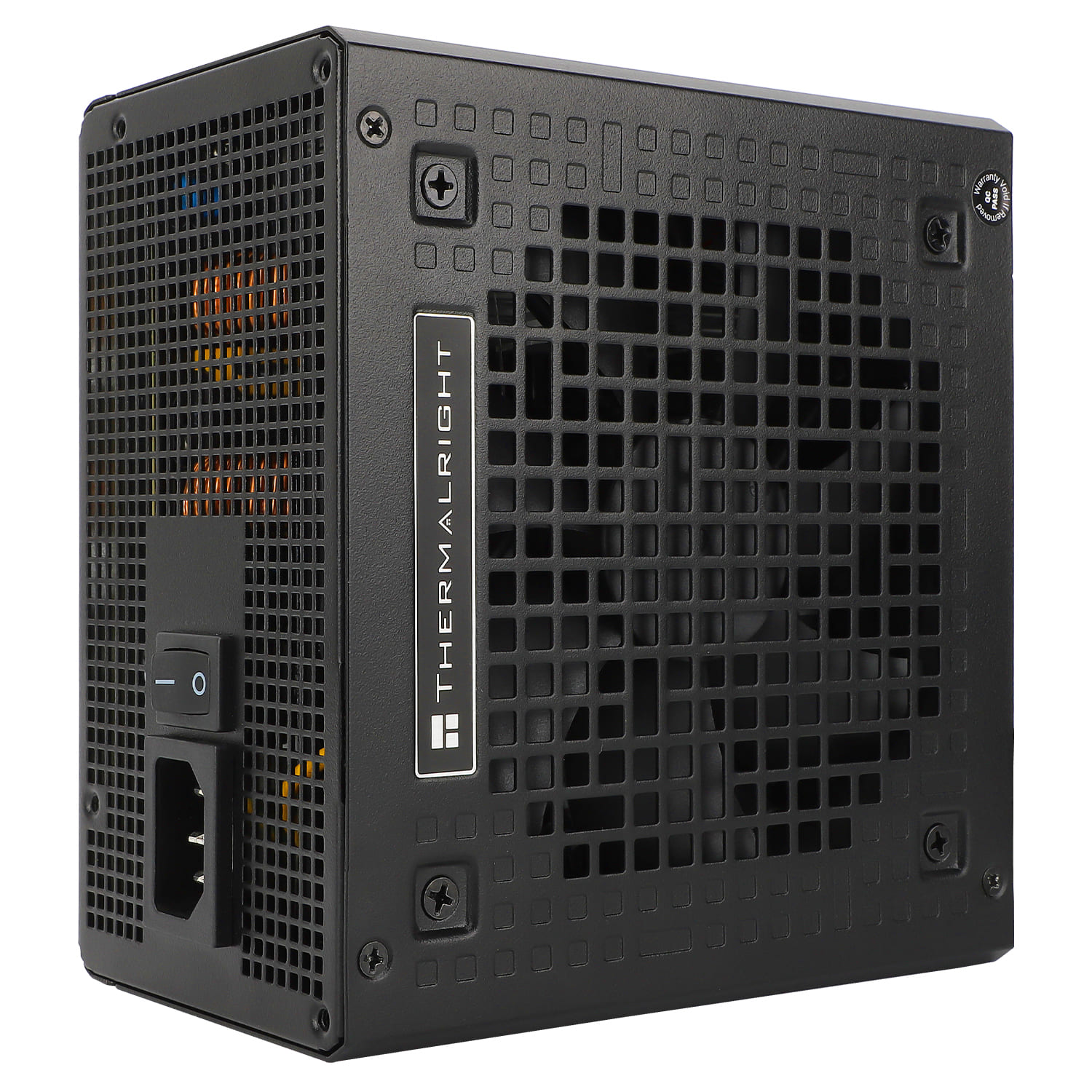

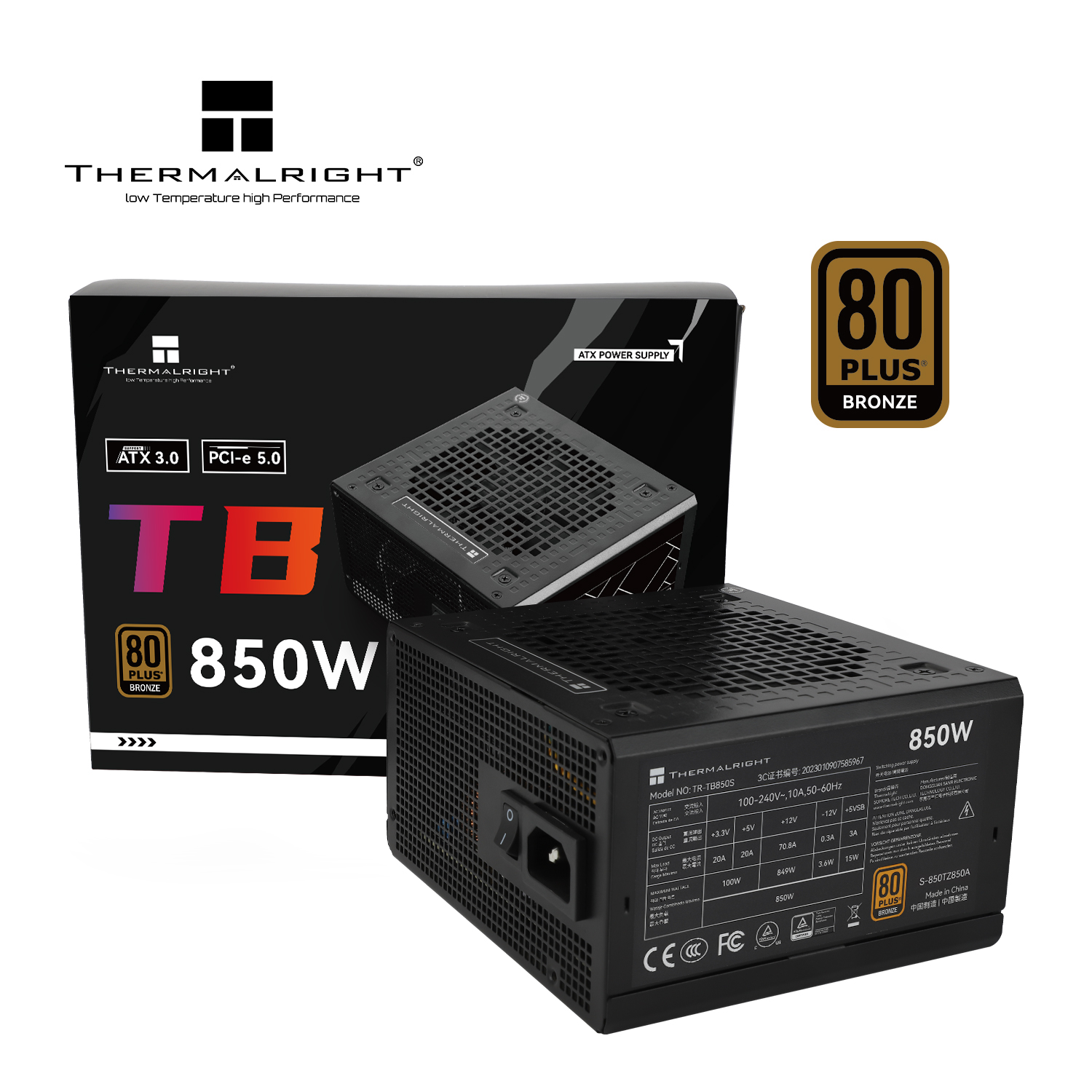

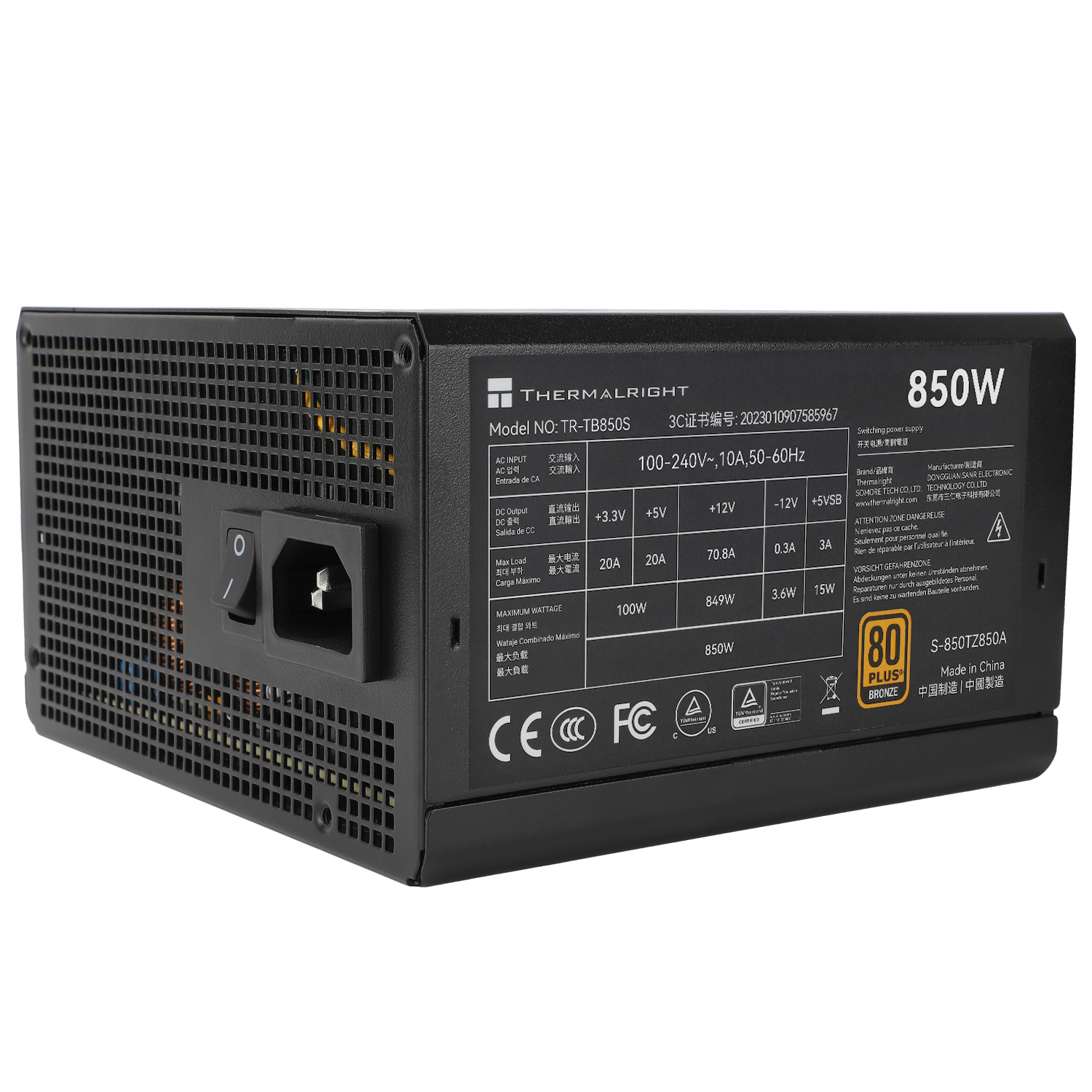

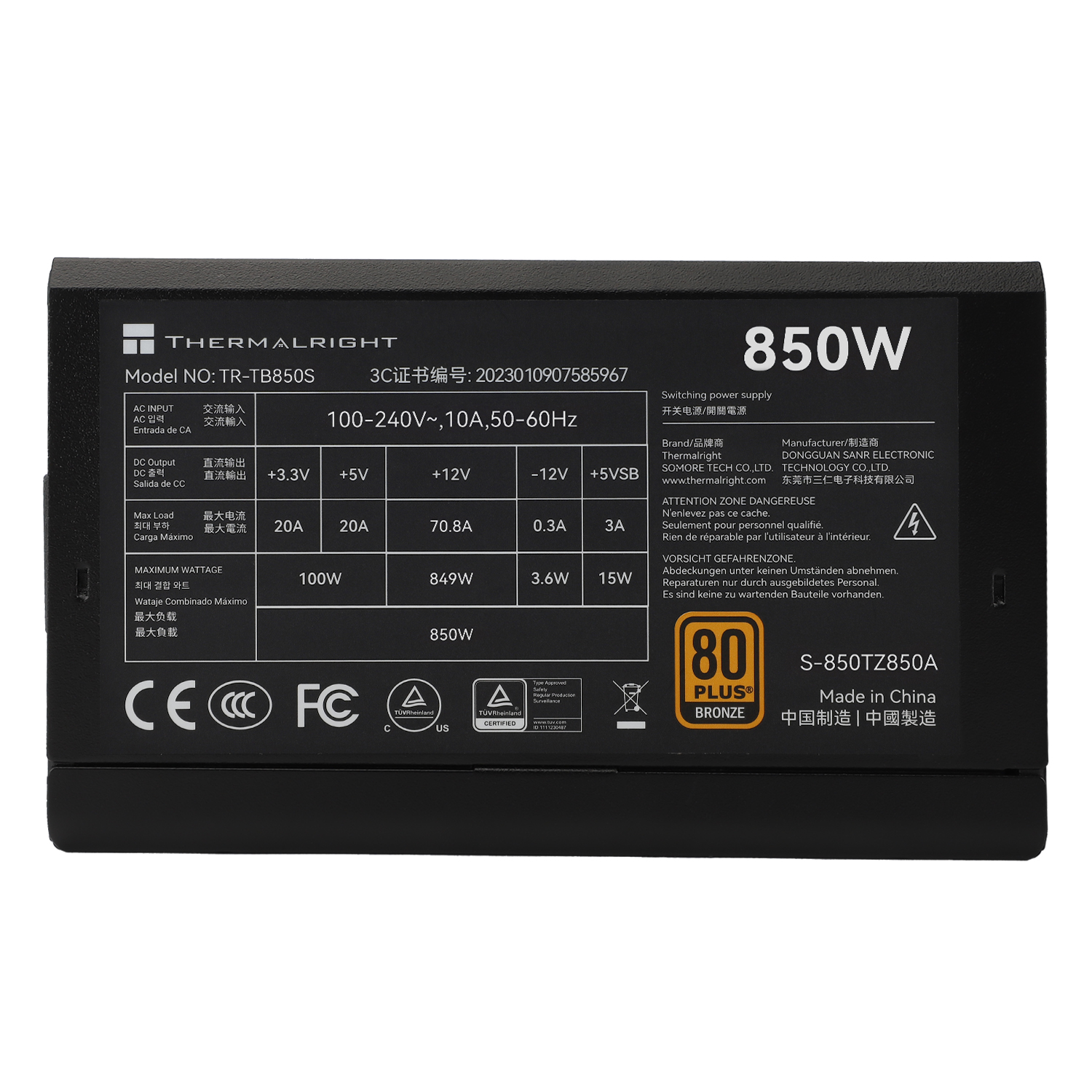

Thermalright TR TB-850S 850W 80+ Bronze

Wattage: 850W
Efficiency Rating: 80 PLUS Bronze certified (typically 82-85% efficient at common loads)
Modularity: Non-Modular (all cables are permanently attached)
Form Factor: ATX
ATX Standard: ATX 3.0 (ensures compatibility with modern motherboards and handling of power spikes from current-gen GPUs)
PCIe Standard Support: PCIe 5.0, includes a native 12VHPWR (12+4 pin) cable capable of delivering up to 600W to compatible graphics cards (e.g., NVIDIA RTX 40 series).
PFC: Active PFC (Power Factor Correction)
Cooling: 120mm fan (often features intelligent thermal control for quiet operation)
Protection Features: Comprehensive protection suite including:
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
Connectors (Typical Configuration):
- 1 x 20+4-pin ATX Motherboard connector
- 2 x 4+4-pin CPU (EPS12V) connectors
- 1 x 12VHPWR (12+4 pin) PCIe 5.0 connector (600W rated)
- 2 x 6+2-pin PCIe connectors (for older/additional GPUs)
- 5 x SATA power connectors
- 3 x Molex power connectors
Capacitors: Often utilizes durable 105°C rated Japanese main capacitors.
