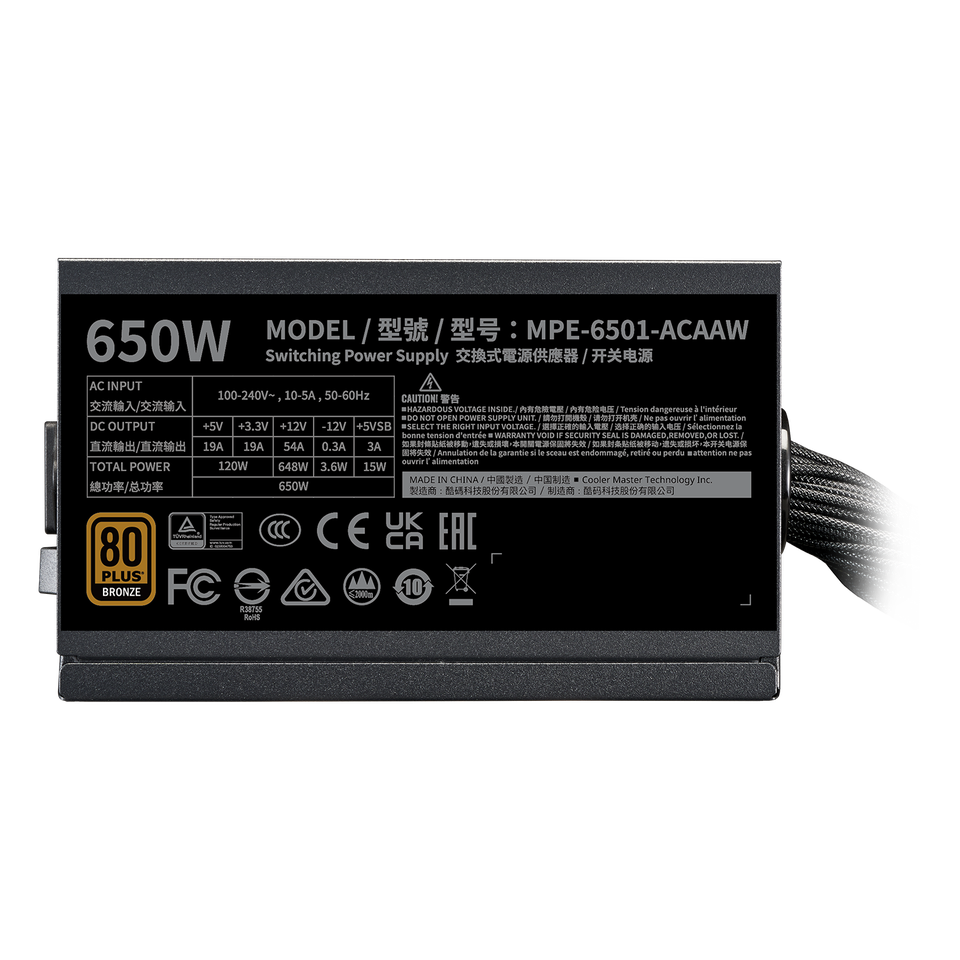

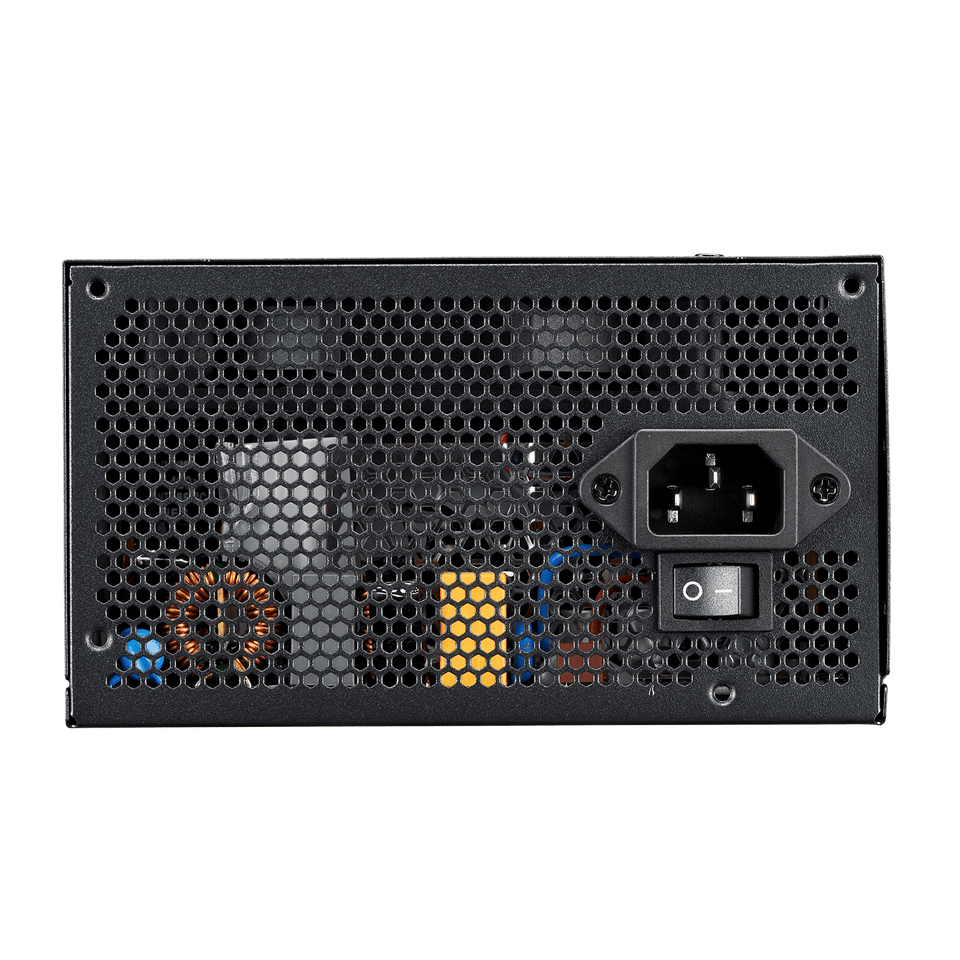

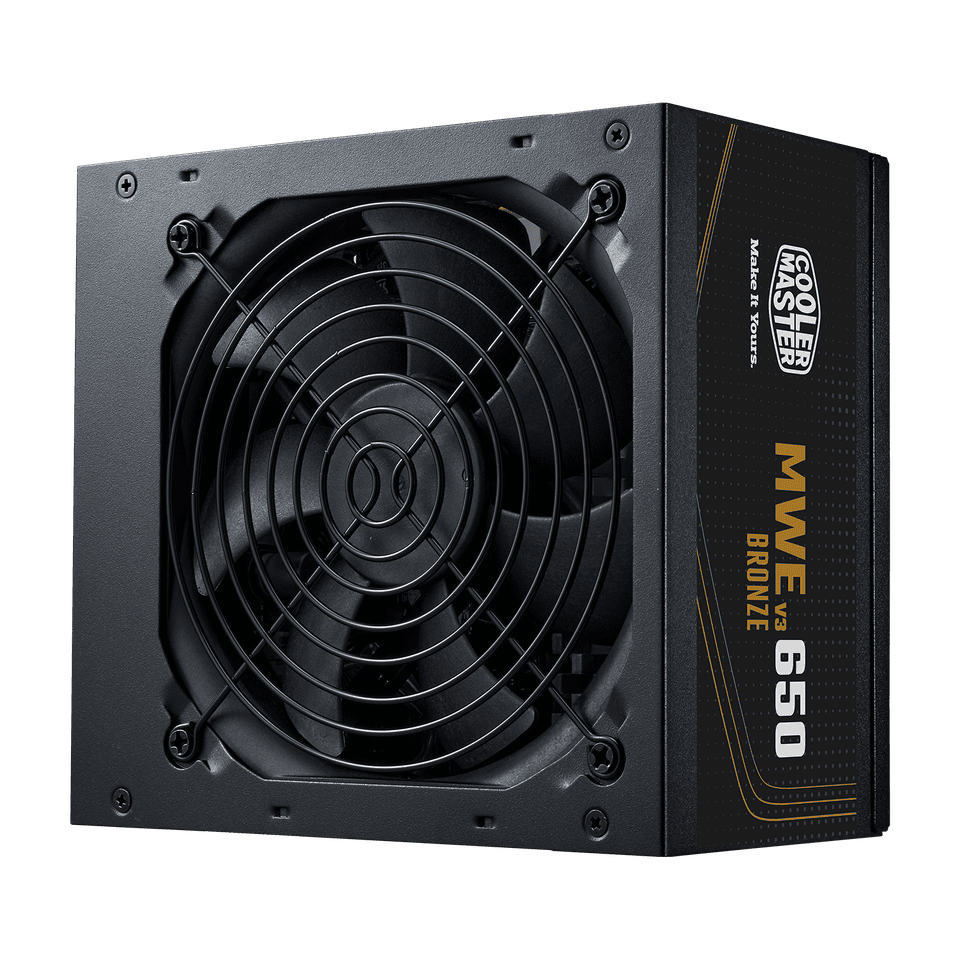

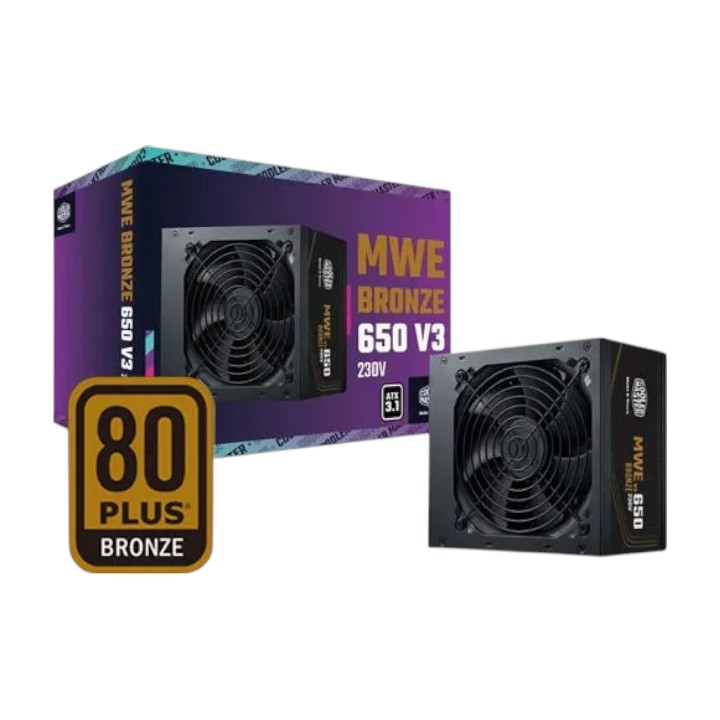

Cooler Master MWE 650 V3 650w 80 Bronze PCie 5

Wattage: 650W
Efficiency Rating: 80 PLUS Bronze certified (typically >85% at typical loads, >88% for 230V EU version)
Modularity: Non-Modular (all cables are permanently attached)
Form Factor: ATX
ATX Standard: ATX 12V Version 3.1 (important for handling transient power spikes of modern GPUs)
PCIe Standard Support: Compliant with ATX 3.1, which implies support for modern GPU power requirements, although it typically does NOT include a native 12VHPWR (12+4 pin) connector at this wattage and tier. Instead, it relies on multiple 6+2 pin PCIe connectors to power GPUs that use adapter cables.
PFC: Active PFC (Power Factor Correction)
Cooling: 120mm Hydro Dynamic Bearing (HDB) fan, designed for quiet operation and durability.
Protection Features: Comprehensive protection suite including:
- UVP (Under Voltage Protection)
- OVP (Over Voltage Protection)
- OPP (Over Power Protection)
- OTP (Over Temperature Protection)
- SCP (Short Circuit Protection)
Connectors (Typical Configuration):
- 1 x 24-pin ATX Motherboard connector
- 2 x 4+4-pin EPS (CPU) connectors
- 4 x 6+2-pin PCIe connectors (for graphics cards)
- 6 x SATA power connectors
- 3 x Peripheral (Molex) 4-pin connectors
Build Features:
- High temperature resilience (rated for operation up to 40°C).
- Embossed cables for a cleaner aesthetic.
- DC-to-DC + LLC circuit design for stable output.
Dimensions (L x W x H): 140 x 150 x 86 mm
