ASUS ROG STRIX GAMING 1000P, Full Modular, 1000W 80+ Platinum

Wattage: 1000W
Efficiency Rating: 80 PLUS Platinum certified (typically 92% efficiency at 50% load, 89% at 100% load). Also holds Cybenetics Lambda A+ certification for low noise levels (<20 dB average).
Modularity: Full Modular (allows for a clean build and improved airflow by connecting only the necessary cables).
Form Factor: ATX
ATX Standard: ATX 3.1 compliant (ensures robust power delivery and handling of transient power excursions for modern components).
PCIe Standard Support: PCIe 5.1 Ready (includes a native 12V-2x6 connector for next-gen graphics cards, capable of delivering up to 600W). Also includes 4 x 6+2 pin PCIe connectors for additional GPU power.
PFC: Active PFC (Power Factor Correction)
Cooling:
- 135mm Axial-tech fan with Dual Ball Bearings (offers 2x longer lifespan than sleeve bearings).
- 0dB Technology: Fan shuts off entirely when the PSU load is 40% or below for silent operation. Features a dedicated 0dB fan button to toggle this mode.
- ROG Heatsinks: Integrated ROG heatsinks for improved heat dissipation, enabling lower temperatures and extended 0dB operation.
Key Engineering Features:
- GaN MOSFETs: Utilizes Gallium Nitride (GaN) MOSFETs for superior power efficiency (up to 30% better than traditional MOSFETs) and a more optimized internal layout for better cooling.
- "GPU-FIRST" Intelligent Voltage Stabilizer: A patented feature that enhances voltage stability for the graphics card by up to 45% during demanding loads (requires connecting a specific IVS cable).
- High-performance Copper Pins in PCIe connectors for improved thermal conductivity and power delivery.
- Low-ESR Japanese capacitors for enhanced reliability and efficiency.
Protection Features: Comprehensive protection suite including:
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
- OTP (Over Temperature Protection)

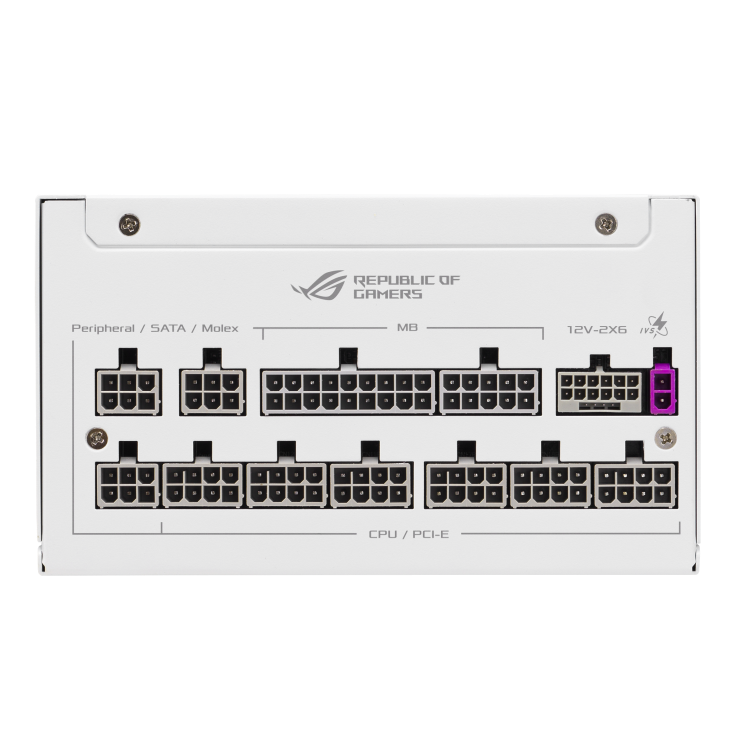

Connectors (Typical Full Modular Configuration):
- 1 x 24-pin ATX Motherboard connector
- 2 x 4+4-pin CPU (EPS12V) connectors
- 1 x 16-pin PCIe 5.1 (12V-2x6) connector (600W)
- 4 x 6+2-pin PCIe connectors
- 6 x SATA power connectors
- 3 x Peripheral (Molex) 4-pin connectors
Dimensions: 160mm (L) x 150mm (W) x 86mm (H)
Cables: Etched modular cables made from a pliable material for easy routing.

ASUS ROG STRIX GAMING 1000P, Full Modular, 1000W 80+ Platinum
