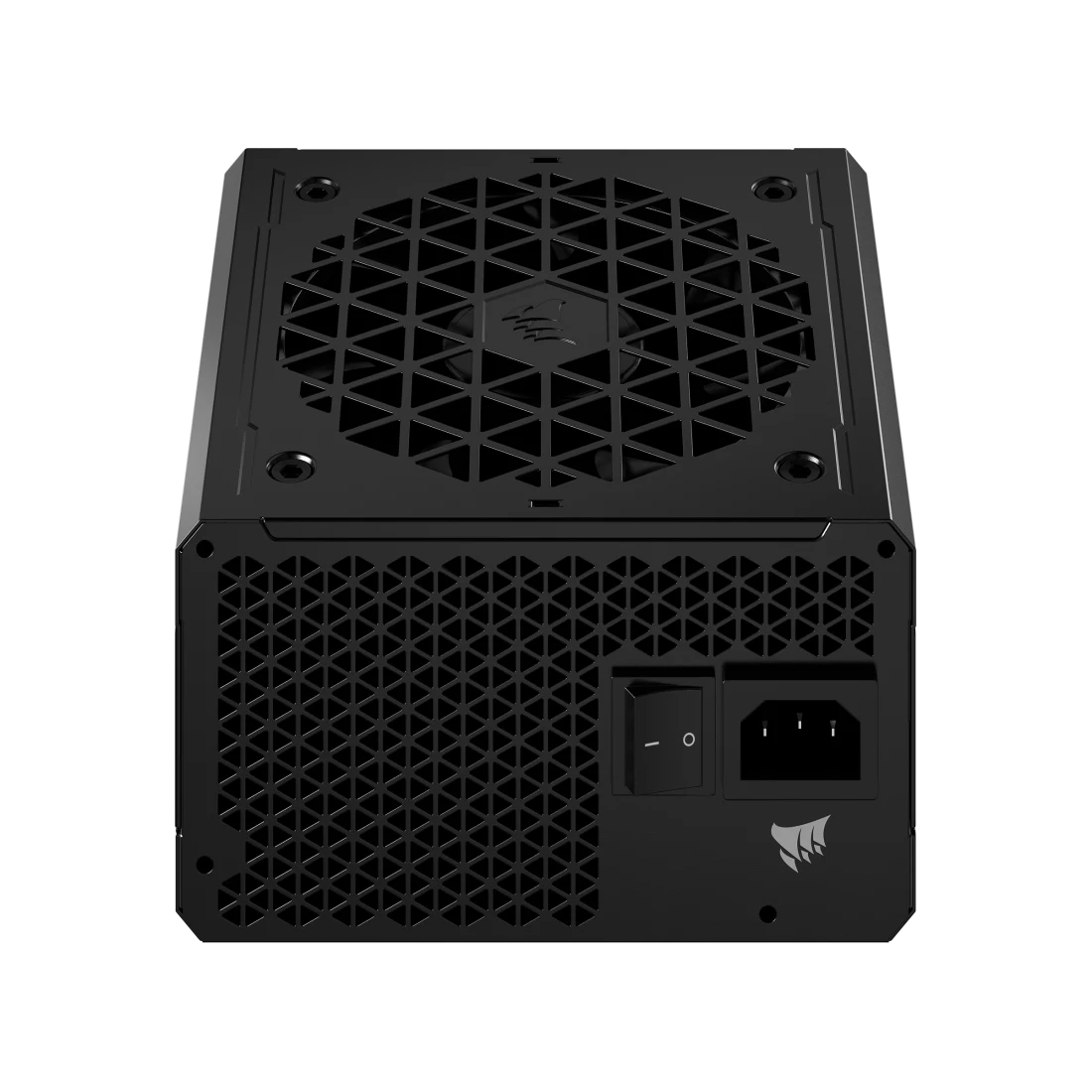

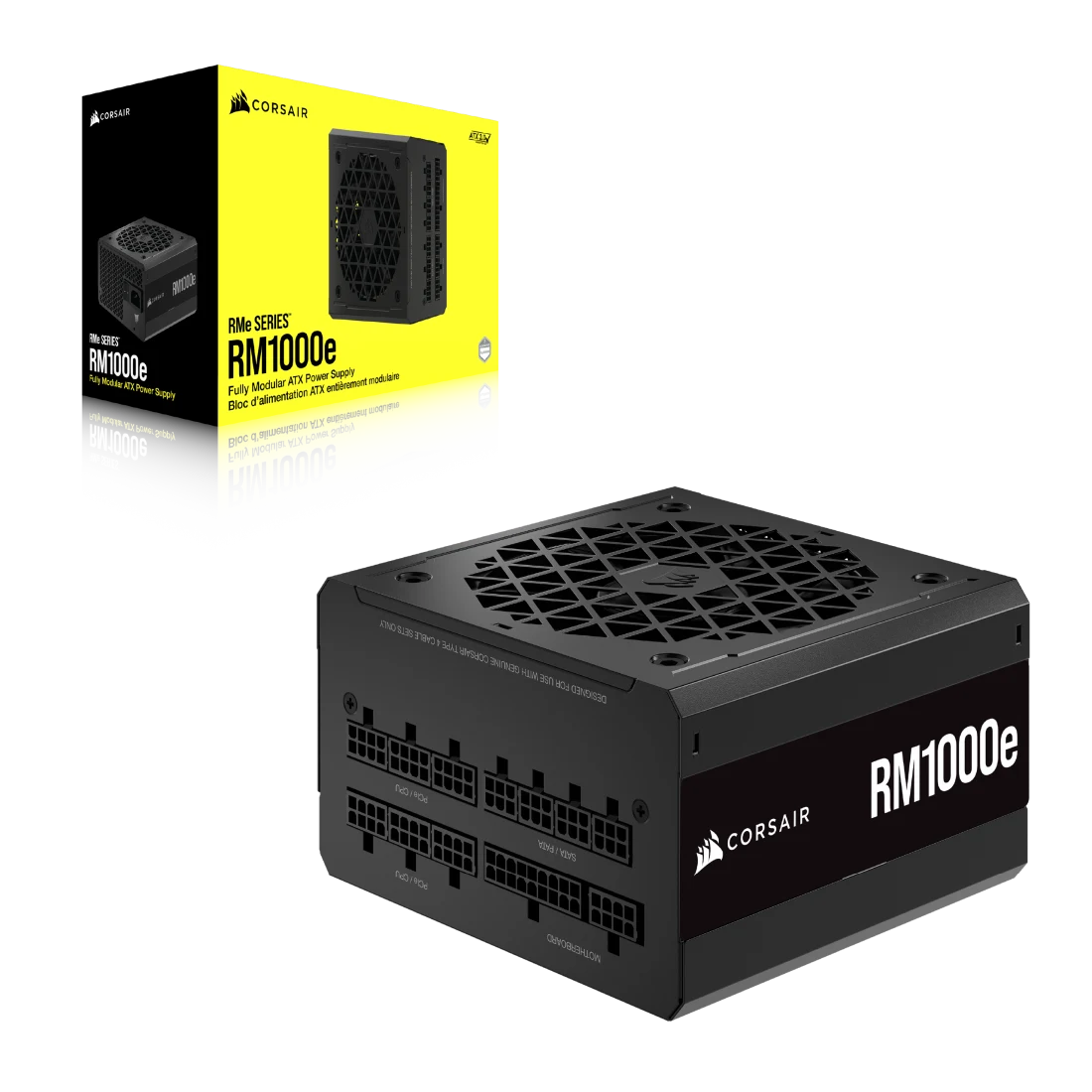

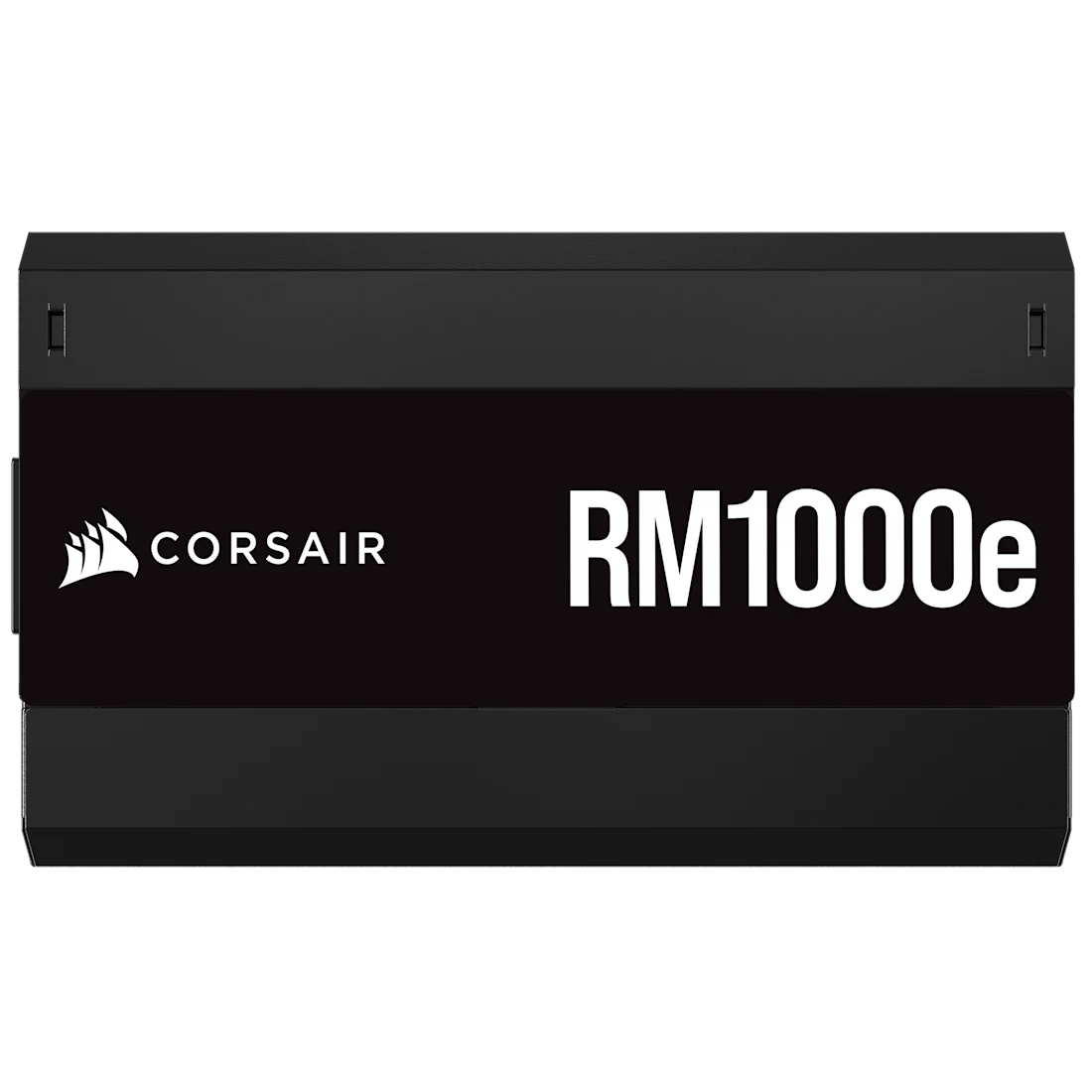

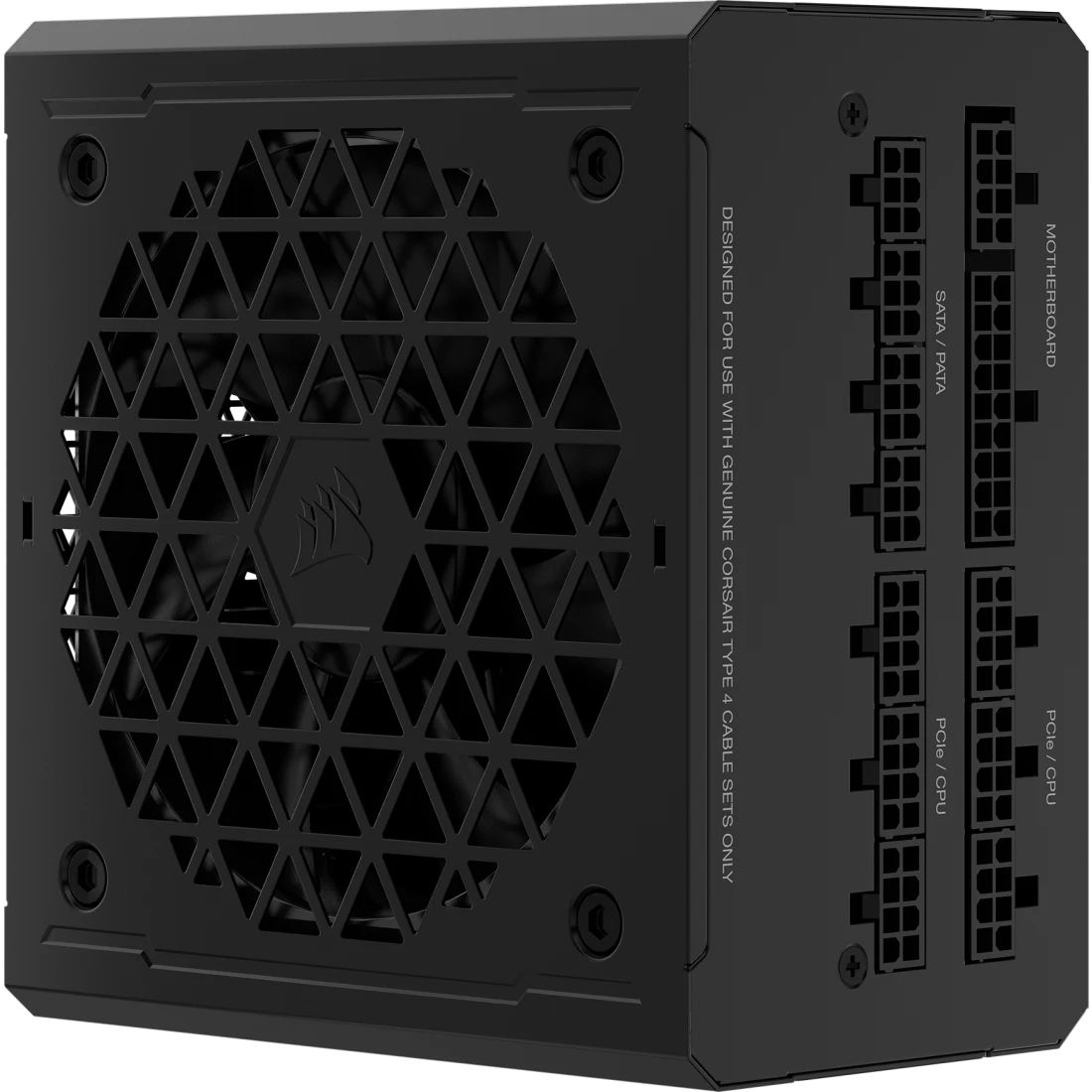

Corsair RM1000e - 1000w 80 Gold Fully Modular PCie 5

Wattage: 1000W
Efficiency Rating: 80 PLUS Gold certified (typically up to 90% efficiency at common loads). It also holds Cybenetics Gold or A- certification for efficiency and noise.
Form Factor: ATX
ATX Standard: ATX 3.1 compliant (ensures robust power delivery and better handling of transient power excursions for modern CPUs and GPUs).
PCIe Standard Support: PCIe 5.1 Ready (includes a dedicated 12V-2x6 (12+4 pin) cable capable of delivering up to 600W to compatible next-gen graphics cards like NVIDIA RTX 40 series).
PFC: Active PFC (Power Factor Correction)
Cooling:
- 120mm Rifle Bearing Fan, designed for quiet operation and durability.
- Zero RPM Fan Mode: The fan stops spinning entirely at low to medium loads (typically up to 40% load) for near-silent operation.
Key Engineering Features:
- Robust LLC Resonant Topology with DC-to-DC conversion for consistent and reliable power output.
- Industrial-grade 105°C rated capacitors for enhanced reliability and longevity.
- Supports Modern Standby for extremely fast wake-from-sleep times and improved low-load efficiency.
Protection Features: Comprehensive protection suite including:
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
- OTP (Over Temperature Protection)

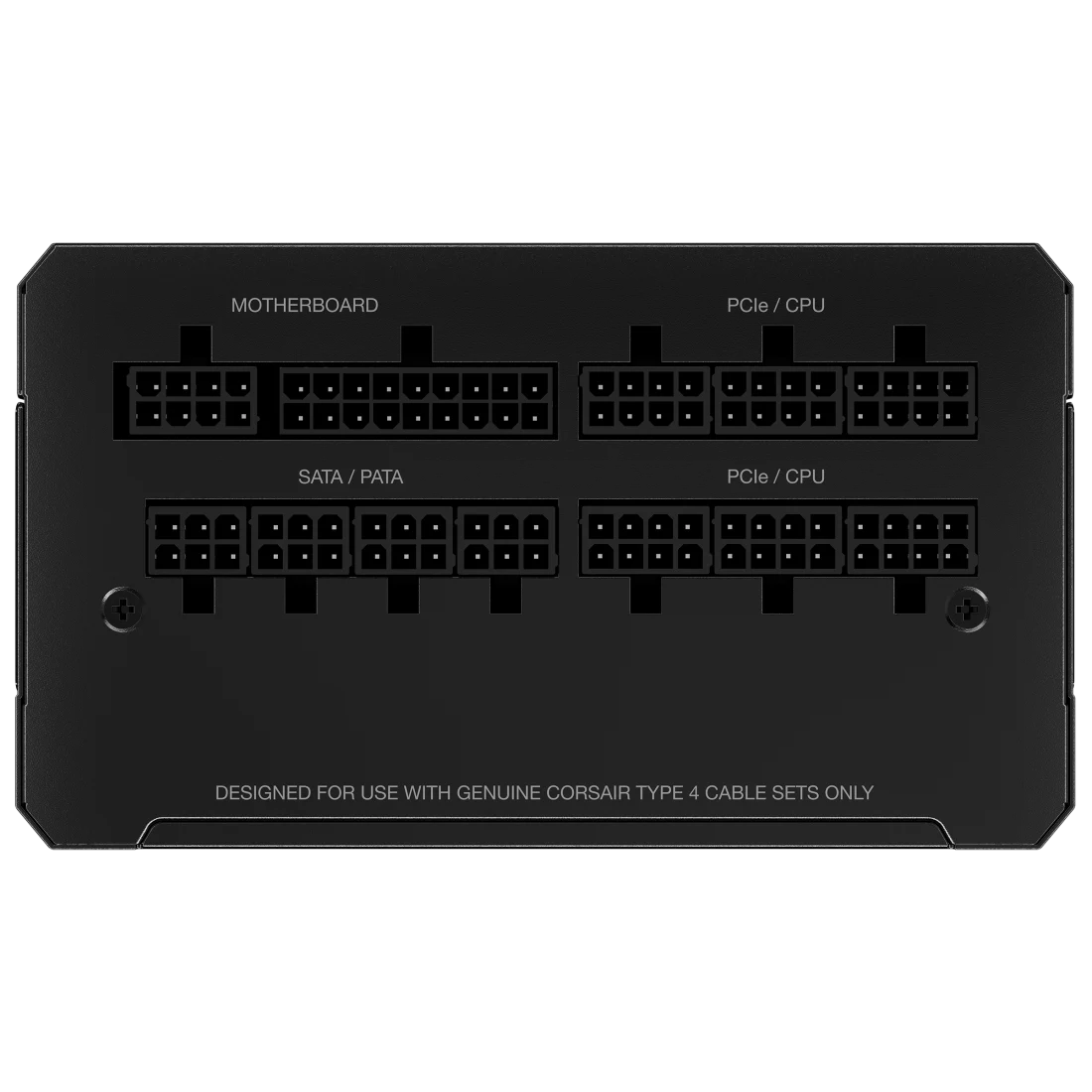

Connectors (Typical Full Modular Configuration):
- 1 x 24-pin ATX Motherboard connector
- 2 x 4+4-pin CPU (EPS12V) connectors
- 1 x 12V-2x6 (12+4 pin) PCIe 5.1 connector (600W rated)
- 3 x 6+2-pin PCIe connectors (can vary, some listings show 4 or 6)
- 6 x SATA power connectors
- 2 x Peripheral (Molex) 4-pin connectors (some listings show 4)
