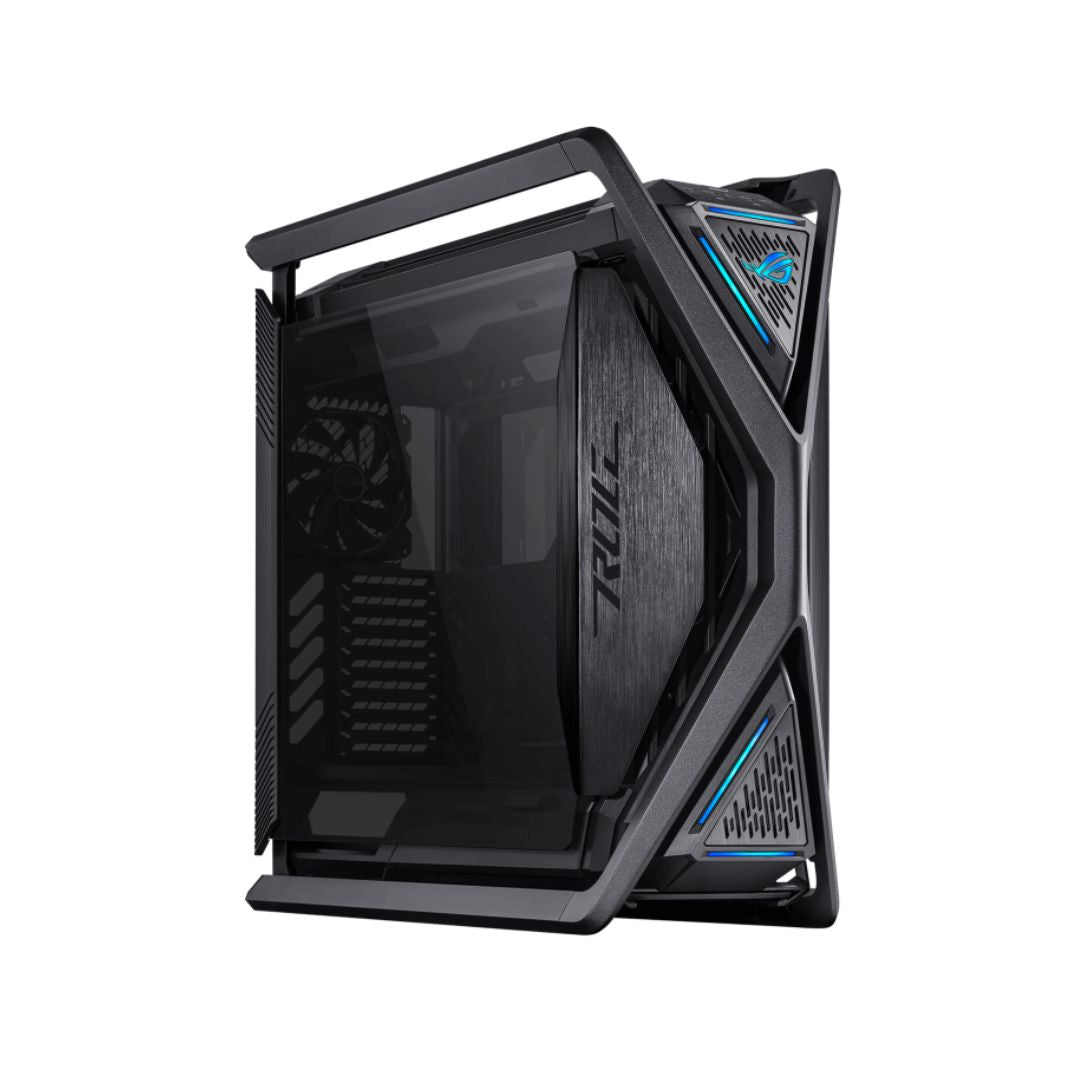

ASUS ROG Hyperion GR701 Full Tower

Case Type: Full Tower
Motherboard Support: E-ATX (up to 12" x 10.9"), ATX, Micro-ATX, Mini-ITX
Dimensions (W x H x D): 268 x 639 x 659 mm
Weight: Approximately 20.8 kg
Materials: Aluminum, Steel, Tempered Glass (dual side panels), ABS Plastic
Drive Bays:
- 5 x 2.5" bays
- 2 x 2.5"/3.5" Combo bays
Expansion Slots: 9 (standard horizontal) + 3 (additional vertical for GPU mounting)
Maximum GPU Length: 460 mm (supports both horizontal and vertical installation)
Maximum CPU Cooler Height: 190 mm
Maximum PSU Length: 240 mm
Pre-installed Fans:
- Front: 3 x 140 mm PWM ARGB fans
- Rear: 1 x 140 mm PWM ARGB fan
Fan Support:
- Front: 3 x 120 mm or 3 x 140 mm
- Top: 3 x 120 mm or 3 x 140 mm
- Rear: 1 x 120 mm or 1 x 140 mm
- Side (Vertical Installation Area): 3 x 120 mm
Radiator Support:
- Front: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (up to dual 420mm radiator support overall in the case)
- Top: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm
- Rear: 120mm, 140mm
- Side (Vertical Installation Area): 120mm, 240mm, 360mm
Front I/O Ports:
- 1 x Headphone / Microphone combo jack
- 4 x USB 3.2 Gen 1 (5Gbps) Type-A ports
- 2 x USB 3.2 Gen 2x2 (20Gbps) Type-C ports (one with 60W fast charging support)
- LED Control Button
- Reset Button
Cable Management:
- 34 mm deep cable management chamber behind the motherboard tray
- 46 mm wide cable routing channel with Velcro straps
- Translucent cable cover
Special Features:
- Die-Cast Aluminum Alloy Frame: Distinctive "X" design that doubles as carry handles (supports up to 80 kg).
- Built-in Graphics Card Holder: Integrated aluminum holder for vertical or horizontal GPU mounting to prevent sag.
- Tool-Free Hinged Side Panels: Tinted tempered glass side panels that swing open for easy access.
- Hidden Storage Drawer: Small integrated compartment for screws, brackets, and small tools.
- Integrated Fan & ARGB Hub: Supports up to 8 ARGB components and 6 PWM fans.
- ROG Themed Lighting Panel: Internal ARGB lighting panel that can be repositioned.
- Dust Filters: Removable filters on the front, top, and bottom.
- Aura Sync: Full RGB lighting synchronization with compatible components.
- BTF Edition (Back-To-the-Future): There is also a BTF edition specifically designed for "back-connect" motherboards.

ASUS ROG Hyperion GR701 Full Tower - Black
